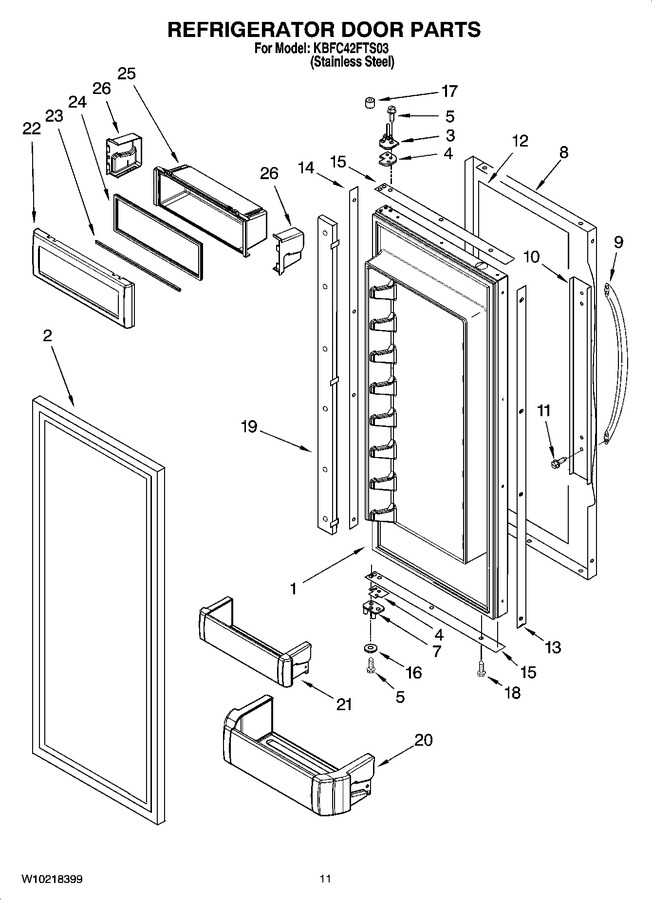

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10192510 | Door, Refrigerator (includes Item 2) (left Side) |
|
- | |||||
| 1 | W10192508 | Door, Refrigerator (includes Item 2) (right Side) |
|
- | |||||
| 2 | 8201809 | Gasket, Door (Replaces: 2268265) |
|
Immediately | $ 246.99 | ||||
| 3 | W11673500 | Hinge Assembly, Top (Replaces: 2320642) |
|
Immediately | $ 108.07 | ||||
| 4 | W11673500 | Spacer-hinge, Top (Replaces: 2316804) |
|
Immediately | $ 108.07 | ||||
| 5 | W11474472 | Screw, 10-32 X 3/4 (Replaces: 489282) |
|
Immediately | $ 8.63 | ||||
| 7 | 2316752 | Bottom Hinge Assembly (left) |
|
$ 216.03 | |||||
| 7 | 2316751 | Bottom Hinge Assembly (right) |
|
- | |||||
| 8 | 2316732 | Skin, Door |
|
- | |||||
| 9 | WP2316868 | Handle, Door (2) (Replaces: 2316868) |
|
Immediately | $ 281.43 | ||||
| 10 | W10127710 | Plate, Door-handle |
|
Immediately | $ 25.94 | ||||
| 11 | WP308544 | Screw, 10-24 X 1/2 (Replaces: 308544) |
|
Immediately | $ 8.30 | ||||
| 12 | 2309218 | Filler, Foam |
|
- | |||||
| 13 | 2314068 | Spacer, Door Edge (handle Side) |
|
- | |||||
| 14 | 2316768 | Spacer, Door Edge (hinge Side) |
|
- | |||||
| 15 | 2309204 | Spacer, Door Edge (top / Bottom) |
|
- | |||||
| 16 | WP2006346 | Washer (Replaces: 2006346) |
|
Immediately | $ 11.76 | ||||
| 17 | W11500952 | Bushing, Top Hinge (Replaces: 2316760) |
|
Immediately | $ 34.74 | ||||
| 18 | WP8281250 | Screw 8-15 X 1/2 (Replaces: 8281250) |
|
$ 11.42 | |||||
| 19 | 2307938 | Mullion Assembly |
|
$ 144.52 | |||||
| 20 | W10323746 | Shelf, Door (2) (gallon) (Replaces: 2222769) |
|
$ 108.24 | |||||
| 21 | W10323598 | Shelf, Door (4) (Replaces: 2222772) |
|
$ 104.79 | |||||
| 22 | WPW10131132 | Door, Utility Bin (Replaces: W10131132) |
|
$ 75.81 | |||||
| 23 | 2222795 | Rail, Lid |
|
$ 84.11 | |||||
| 24 | WP2222981 | Gasket, Utility Bin (Replaces: 2222981) |
|
$ 214.40 | |||||
| 25 | WPW10323035 | Bin, Utility (Replaces: 2222921) |
|
$ 84.93 | |||||
| 26 | WPW10323172 | End Cap, Utility Bin (right Side) (Replaces: 2222919) |
|
$ 8.60 | |||||
| 26 | WPW10323173 | End Cap, Utility Bin (left Side) (Replaces: 2222920) |
|
$ 8.60 |
