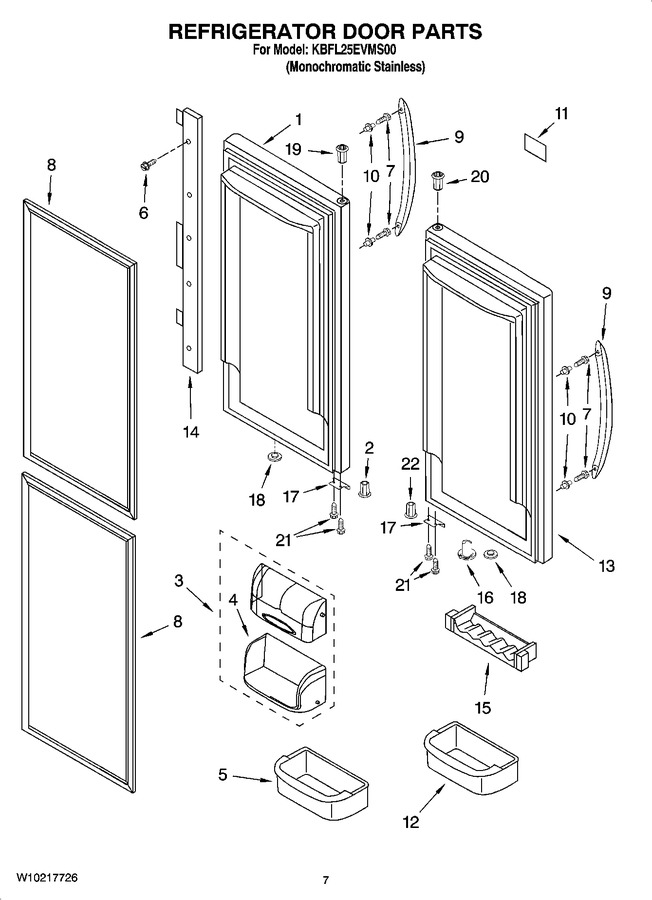

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13024052SQ | Door, Left (mono Stainless) |
|
- | |||||
| 2 | 12699301AP | Bushing, Door (bottom Left) (apollo Grey) |
|
$ 13.44 | |||||
| 3 | WP12744905 | Compartment, Door (includes Item 4) (Replaces: 67003819) |
|
$ 113.99 | |||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 67001279) |
|
Immediately | $ 88.01 | ||||
| 5 | WPW10371195 | Bin, Shelf (medium) (Replaces: 67005672) |
|
Immediately | $ 87.37 | ||||
| 6 | W11311945 | Screw (Replaces: 67006786) |
|
$ 14.72 | |||||
| 7 | 67006901 | Screw |
|
Immediately | $ 9.49 | ||||
| 8 | W10830162 | Gasket, Door (apollo Grey) (Replaces: W10179332) |
|
Immediately | $ 212.57 | ||||
| 9 | WPW10314517K | Door Handle (stainless) (Replaces: W10119644) |
|
$ 243.37 | |||||
| 10 | WP67006113 | Stud, Handle (Replaces: 67006113) |
|
Immediately | $ 12.56 | ||||
| 11 | W10046610 | Nameplate (apollo Grey) |
|
$ 33.40 | |||||
| 12 | WPW10289498 | Bin, Shelf (2) (large) (Replaces: 67005673) |
|
$ 109.26 | |||||
| 13 | 13024051SQ | Door, Right (mono Stainless) |
|
- | |||||
| 14 | WP12722803AP | Mullion, Door (apollo Grey) (Replaces: 12732501AP) |
|
Immediately | $ 177.93 | ||||
| 15 | WP67005626 | Caddy, Can (Replaces: 67005626) |
|
$ 81.49 | |||||
| 16 | WP12028505AP | Closure, Door (apollo Grey) (Replaces: 12028505AP) |
|
Immediately | $ 61.46 | ||||
| 17 | W11401472 | Stop, Door (apollo Grey) (Replaces: 10447114) |
|
Immediately | $ 23.56 | ||||
| 18 | 67004838 | Plug, Button (black) |
|
$ 11.21 | |||||
| 19 | 12395501AP | Bushing, Door Upper Left (apollo Grey) |
|
$ 12.05 | |||||
| 20 | 10961006AP | Bushing, Door (upper Right) (apollo Grey) |
|
$ 9.65 | |||||
| 21 | WP98165 | Screw (Replaces: 67006287) |
|
$ 8.57 | |||||
| 22 | 12028601AP | Bushing, Door (lower Right) (apollo Grey) |
|
$ 5.71 |
