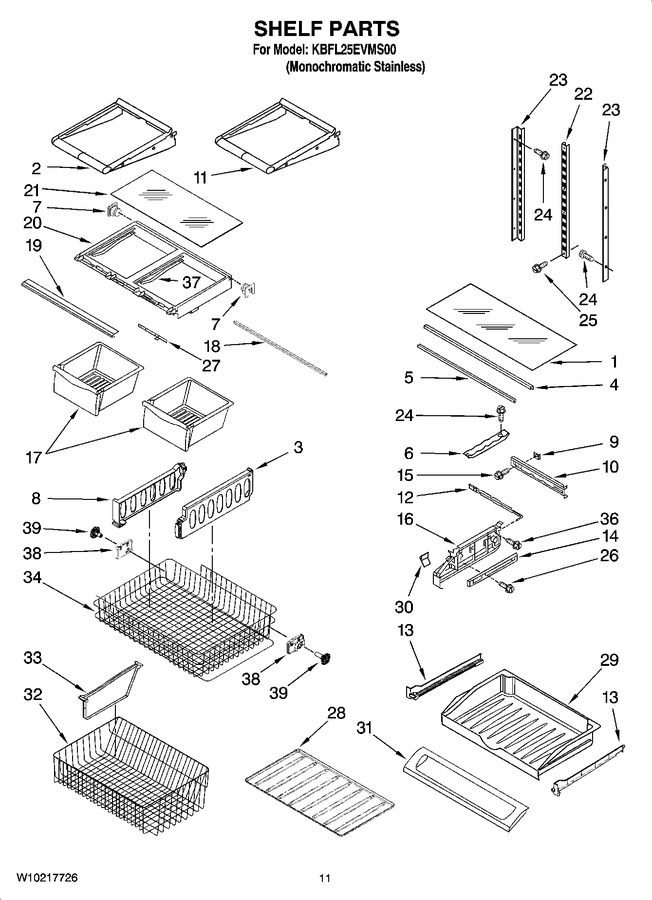

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67002761		Glass, Pantry				$ 103.45
2	W10205737		Shelf, Fixed				$ 304.16
3	W10171558		Divider, (upper Basket)				$ 42.49
4	W11812285		Support, Pantry (2)   (Replaces: 67006010)				$ 53.33
5	WP12227305WD		Brace, Pantry (2)   (Replaces: 67002330)				$ 108.36
6	WP67001719		Track, Pantry   (Replaces: 67001719)			Immediately	$ 8.99
7	WP12603701		Support (2)   (Replaces: 12603701)				$ 10.83
8	W10171557		Divider, Upper Basket		Appelez-nous	-
9	67002329		Gasket, Pantry				$ 22.09
10	12656202		Housing, Control   (Replaces: 67005625)				$ 148.84
11	W10208663		Shelf, Glide (2)				$ 115.65
12	WP67003793		Slide, Temperature   (Replaces: 67003793)			Immediately	$ 78.49
13	W11489994		Rack (right)   (Replaces: W10146444)				$ 23.46
13	W11489993		Rack (left)   (Replaces: W10146443)				$ 23.46
14	WPW10235370		Glide, Drawer (2)   (Replaces: 67007026)			Immediately	$ 199.80
15	67006425		Screw   (Replaces: 67006400)			Immediately	$ 7.30
16	W10874836		Track, Pantry (left)   (Replaces: 67005863)			Immediately	$ 38.43
16	W10874836		Track, Pantry (right)   (Replaces: 67005861)			Immediately	$ 38.43
17	67005929		Pan, Crisper (2)				$ 67.87
18	WP12642303WD		Support, Crisper Cover   (Replaces: 67002748)				$ 112.26
19	67005692		Trim, Crisper		Appelez-nous	-
20	WP67003854		Frame, Crisper   (Replaces: 67003854)			Immediately	$ 227.55
21	WP67006704		Glass, Crisper Cover   (Replaces: 67006704)				$ 212.77
22	67001073		Ladder, Center				$ 56.89
23	67002489		Ladder, Side				$ 71.09
24	67006425		Screw   (Replaces: 67006400)			Immediately	$ 7.30
25	W10709795		Screw   (Replaces: 67006360)				$ 13.79
26	WP67006415		Screw   (Replaces: 67006415)				$ 8.38
27	WP67005864		Slide, Humidity Control   (Replaces: 67005864)			Immediately	$ 8.20
28	WP67006104		Tray, Lower Basket   (Replaces: 67006104)				$ 89.31
29	WP67003531		Drawer, Pantry   (Replaces: 67003531)				$ 162.82
30	W11498983		Knob, Temperature Control   (Replaces: 67003791)				$ 30.64
31	WP67005930		Door, Pantry Drawer   (Replaces: 67005930)			Immediately	$ 81.56
32	W10150039		Basket, Freezer (lower)				$ 128.38
33	W10847995		Divider, Lower Basket   (Replaces: W10146440)				$ 92.48
34	WPW10348246		Basket, Freezer (upper)   (Replaces: W10169949)				$ 274.97
36	WP98165		Screw   (Replaces: 67006287)				$ 8.57
37	WPW10326469		Support, Center   (Replaces: 67004514)			Immediately	$ 33.37
38	W10348259		Gear Mount (left)   (Replaces: W10146441)				$ 89.87
38	W10348260		Gear Mount (right)   (Replaces: W10146442)				$ 89.90
39	WPW10474716		Gear Spur (right)   (Replaces: W10158749)			Immediately	$ 32.42
39	WPW10474715		Gear Spur (left)   (Replaces: W10146446)			Immediately	$ 32.76
