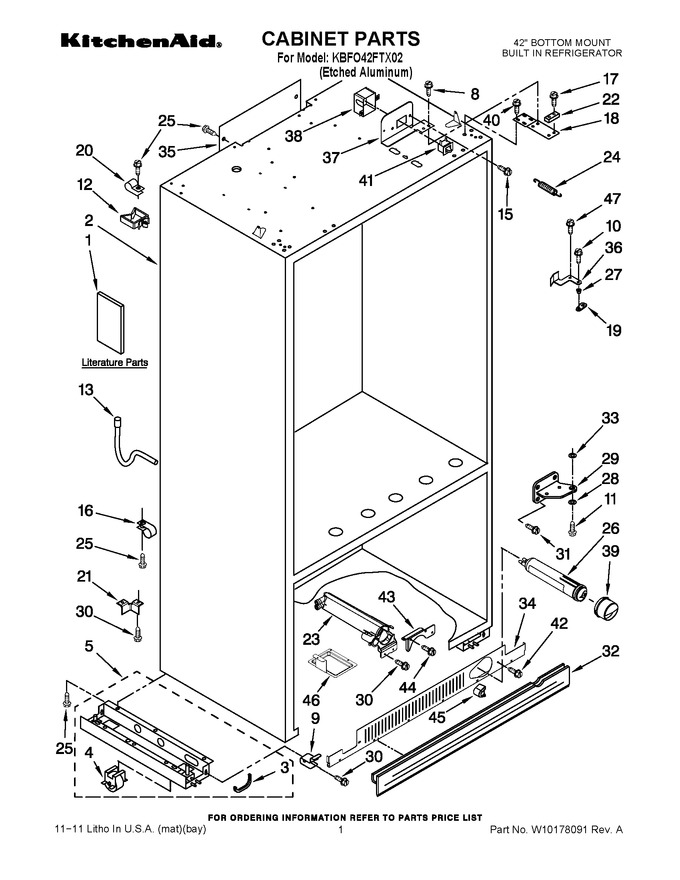

01 - Cabinet Parts


02 - Cabinet And Breaker Trim Parts


03 - Top Grille And Unit Cover Parts


04 - Refrigerator Liner Parts


05 - Freezer Liner Parts


06 - Shelf Parts


07 - Refrigerator Door Parts


08 - Freezer Door And Basket Parts


09 - Upper Unit Parts


10 - Lower Unit And Tube Parts


11 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2320680		Installation Instructions		Appelez-nous	-
1	2320682		Use & Care Guide		Appelez-nous	-
1	2320685		Energy Guide		Appelez-nous	-
1	W10159834		Service & Wiring Sheet		Appelez-nous	-
1	2317849		Main Control Service Sheet		Appelez-nous	-
1	2317840		Modular Icemaker Service Sheet		Appelez-nous	-
2	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
3	2307584		Grommet, Crossover Tube				$ 21.06
4	WPW10138054		Roller, Front & Rear (4)   (Replaces: W10138054)				$ 40.81
5	W10860448		Support, Leveler Assembly (refrigerator Side)   (Replaces: 2318194)			Immediately	$ 344.70
5	W10860229		Support, Leveler Assembly (freezer Side)   (Replaces: 2318193)				$ 343.65
8	WP8281164		Screw   (Replaces: 8281164)				$ 10.20
9	W10839844		Mounting Bracket, Grille   (Replaces: 2307640)				$ 38.93
10	W11177574		Screw   (Replaces: W10004850)				$ 13.36
11	WP488234		Screw 8-32 X 1/4   (Replaces: 488234)				$ 6.37
12	W10129069		Clip (6)		Appelez-nous	-
13	2314064		Tube, Drain				$ 84.49
15	WP965173		Screw 8-18 X 3/8   (Replaces: 487415)			Immediately	$ 10.68
16	WP488366		Clamp, Tube   (Replaces: 2305274)				$ 10.73
17	W11227370		Screw, Door Stop   (Replaces: W10005070)			Immediately	$ 13.42
18	W11218690		Hinge, Door Refrigerator Top   (Replaces: 2316759)			Immediately	$ 70.46
19	WP2320509		Cam-closer, Door   (Replaces: 2320509)				$ 26.96
20	W10833902		Clamp, Tube   (Replaces: 2221070)				$ 10.39
21	2006617		Bracket, Support Door		Appelez-nous	-
22	W11403572		Stop, Door   (Replaces: 2316758)			Immediately	$ 63.43
23	WPW10121140		Housing, Water Filter   (Replaces: 2260526)			Immediately	$ 243.77
24	WP2004517		Spring, Door Closure   (Replaces: 2004517)			Immediately	$ 85.89
25	W11624204		Screw   (Replaces: 486194)				$ 13.25
26	EDR3RXD1B		Filter, Water   (Replaces: 4396841)			Immediately	$ 49.99
27	WP2316859		Bushing-arm, Extension   (Replaces: 2316859)			Immediately	$ 48.78
28	WP2004994		Bushing, Hinge (2) (lock-adjustable)   (Replaces: 2004994)			Immediately	$ 7.55
29	W10337505		Hinge, Bottom Refrigerator Door   (Replaces: 2302889)			Immediately	$ 127.19
30	WP489464		Screw 8-18 X 1/2   (Replaces: 489464)			Immediately	$ 7.54
31	W11474472		Screw   (Replaces: 489282)			Immediately	$ 7.77
32	2209025B		Skirt, Grille (bottom)				$ 48.90
33	2314023		Bushing, Hinge (2)				$ 43.80
34	2325188B		Grille Base, Front				$ 70.00
35	2215612		Cover, Air Duct		Appelez-nous	-
36	W11298172		Arm, Extension (left)   (Replaces: 2266881)			Immediately	$ 78.69
36	W10847927		Arm, Extension (right)   (Replaces: 2266882)				$ 89.92
37	W10741111		Bracket, Switch (right   (Replaces: 2221097)				$ 60.63
37	2221096		Bracket, Switch (left)				$ 88.07
38	2215938		Cover, Switch				$ 85.30
39	WP2260518B		Cap, Water Filter   (Replaces: 2260518B)			Immediately	$ 30.56
40	W11721628		Screw   (Replaces: 8533913)			Immediately	$ 13.30
41	W11384469		Switch, Rocker Arm (2)   (Replaces: 1118894)			Immediately	$ 35.18
42	WP489464		Screw 8-18 X 1/2   (Replaces: W10005050)			Immediately	$ 7.54
43	W11755873		Bracket, Mounting (filter)   (Replaces: 2318190)				$ 72.30
44	WP8281163		Screw 8-16 X 1/2   (Replaces: 8281163)			Immediately	$ 9.63
45	WP2260503B		Button, Filter   (Replaces: 2260503B)				$ 68.78
46	2318189		Tray, Drip Filter				$ 133.86
47	WP8533980		Screw   (Replaces: 8533980)			Immediately	$ 77.98
