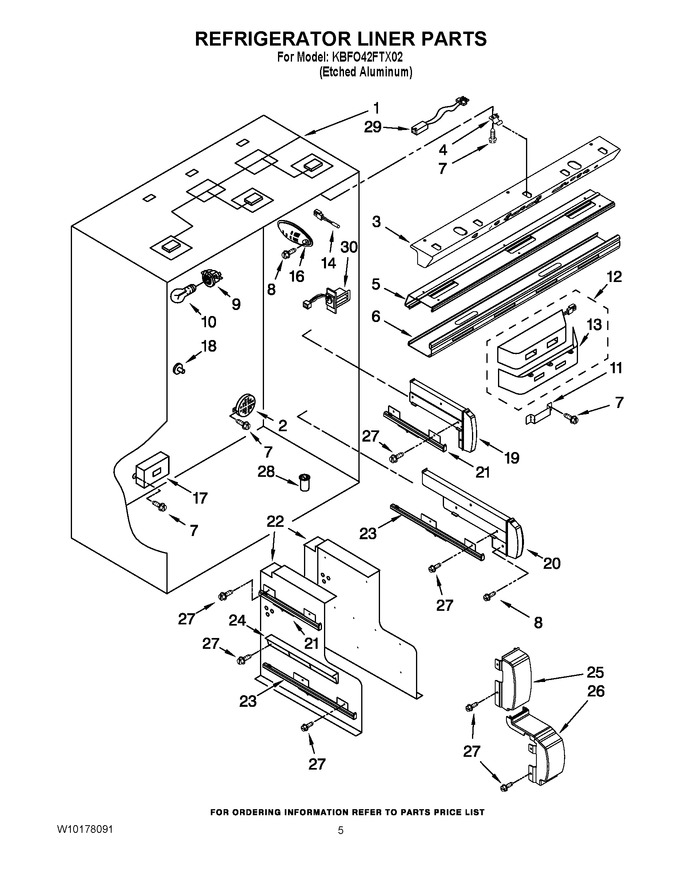

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner, Refrigerator (not Servicable)		Appelez-nous	-
2	2317004		Cover, Air Return (2)		Appelez-nous	-
3	2320663		Control Box, Complete		Appelez-nous	-
4	2317000		Clip, Control Box		Appelez-nous	-
5	2324969		Bracket, Control Box		Appelez-nous	-
6	2309248		Shield, Light		Appelez-nous	-
7	WP488729		Screw 8-15 X 1/2   (Replaces: 487539)			Immediately	$ 8.28
8	WP488163		Screw,   (Replaces: 488163)				$ 7.92
9	WPW10191429		Socket, Light (3)   (Replaces: 2223857)				$ 8.80
10	WPA3073101		Bulb, Light (3)   (Replaces: 2326255)			Immediately	$ 12.72
11	2317917		Clip, Diffuser Cover		Appelez-nous	-
12	2320523		Diffuser Assembly				$ 100.60
13	2320519		Cover, Diffuser				$ 117.62
14	2320519		Thermistor				$ 117.62
16	WP2317844		Cover, Thermistor   (Replaces: 2317105)				$ 11.38
17	2268249		Diffuser, Crisper (complete)(2)				$ 63.83
18	WP2196483		Stud, Shelf   (Replaces: 2196483)				$ 10.87
19	2268331		Spacer, Crisper (left)		Appelez-nous	-
19	2268332		Spacer, Crisper (right)		Appelez-nous	-
20	2306474		Spacer, Deli (right)				$ 16.87
20	2306475		Spacer, Deli (left)				$ 16.87
21	2302952		Slide, Crisper Pan (left (2))			Immediately	$ 318.09
21	2302953		Slide, Crisper Pan (right (2))			Immediately	$ 318.41
22	2320550		Center Support (right Half)		Appelez-nous	-
22	2320551		Center Support (left Half)		Appelez-nous	-
23	2302957		Slide, Deli Pan (right (2))				$ 228.33
23	2302956		Slide, Deli Pan (left (2))				$ 298.73
24	2314054		Support, Deli Cover (2)		Appelez-nous	-
25	2309083		Cover, Center (crisper Pans)				$ 83.84
26	2318008		Cover, Center (deli Pans)				$ 193.96
27	WPW10001160		Screw, 8-32 X 1/2   (Replaces: W10001160)				$ 10.33
28	WP2210509		Valve, Tube Body   (Replaces: 2171931)				$ 99.15
29	2310164		Wire, Jumper		Appelez-nous	-
30	WP2221296		Air Baffle Assy   (Replaces: 2221296)			Immediately	$ 412.58
