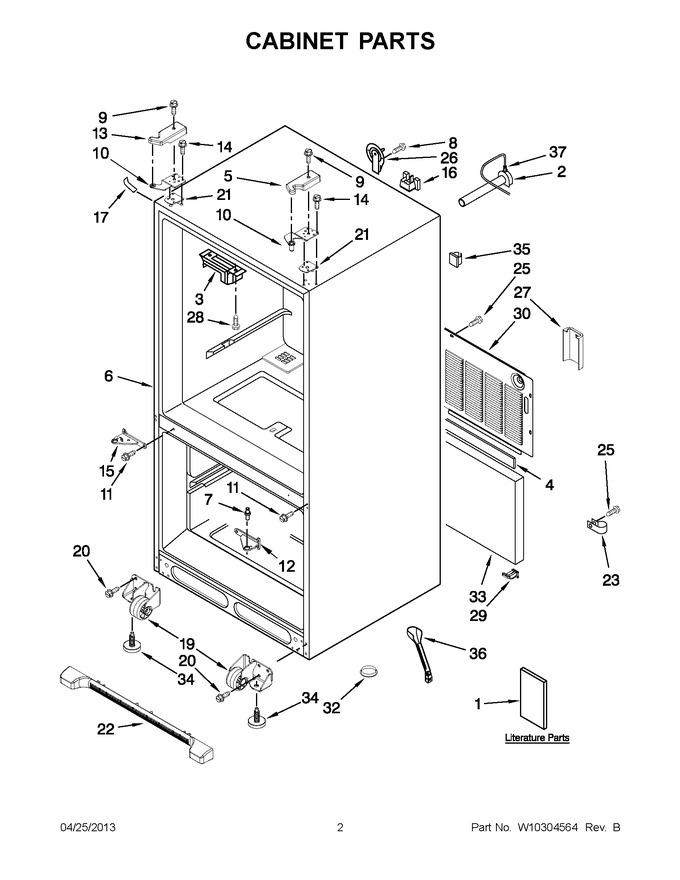

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Freezer Door Parts


08 - Icemaker Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10277319		Energy Guide		Appelez-nous	-
1	W10308624		Tech Sheet		Appelez-nous	-
1	W10187309		Owners Manual		Appelez-nous	-
2	W11176463		Elbow, Fill Tube   (Replaces: 10463203SP)			Immediately	$ 114.15
3	WP67003405		Plate, Pivot   (Replaces: 12698403)			Immediately	$ 7.82
4	B5759655		Gasket				$ 12.41
5	WPW10191117		Cover, Right Hinge (grey)   (Replaces: 12962302AP)				$ 21.95
5	67005958		Cover, Right Hinge (white)   (Replaces: 12962302W)				$ 20.54
5	WP67005956		Cover, Right Hinge (black)   (Replaces: 12962302B)				$ 21.47
6	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
7	WP67006642		Pin, Center Hinge   (Replaces: 10351006)				$ 7.93
8	WP98165		Screw   (Replaces: 12990504)				$ 8.00
9	WP8281196		Screw   (Replaces: 12992602)			Immediately	$ 7.19
10	W11592374		Hinge, Top (right Hand)   (Replaces: 12963205ED)			Immediately	$ 29.02
10	W11592375		Hinge, Top (left Hand)   (Replaces: 12963204ED)				$ 29.09
11	W11573362		Screw, Center Hinge   (Replaces: 12992201)				$ 14.02
12	W10918164		Hinge, Right Hand Center (black)   (Replaces: 13000008ED)				$ 86.64
12	13000002WD		Hinge, Right Hand Center (white)				$ 153.32
12	W10917988		Hinge, Right Hand Center (grey)   (Replaces: 13000002AP)			Immediately	$ 91.08
13	WPW10337648		Cover, Left Hinge (grey)   (Replaces: W10217488)				$ 22.02
13	W10337647		Cover, Left Hinge (black)   (Replaces: W10217489)			Immediately	$ 22.22
13	WPW10337634		Cover, Left Hinge (white)   (Replaces: W10217491)			Immediately	$ 22.42
14	WP489349		Screw   (Replaces: 12992403)			Immediately	$ 7.88
15	W10917988		Hinge, Left Hand Center (grey)   (Replaces: 13000001AP)			Immediately	$ 91.08
15	W10918113		Hinge, Left Hand Center (white)   (Replaces: 13000001WD)				$ 93.26
15	W10918164		Hinge, Left Hand Center (black)   (Replaces: 13000007ED)				$ 86.64
16	12777701		Block, Fill Tube				$ 7.17
17	12587703W		Cover, Corner (white)				$ 21.81
17	67003485		Cover, Corner (black)   (Replaces: 12587703B)			Immediately	$ 21.09
17	WP12587703AP		Cover, Corner (grey)   (Replaces: 12587703AP)				$ 7.69
19	W11820444		Roller Assembly (left Hand)   (Replaces: W10275850)			Immediately	$ 35.57
19	W11820445		Roller Assembly (right Hand)   (Replaces: W10275849)			Immediately	$ 35.57
20	67006564		Screw   (Replaces: 12991302)			Immediately	$ 7.69
21	12999502		Shim, Hinge (right Hand)				$ 95.81
21	12999501		Shim, Hinge (left Hand)				$ 94.79
22	WPW10534162		Grille, Toe (black)   (Replaces: W10236196)				$ 141.10
22	WPW10534161		Grille, Toe (white)   (Replaces: W10236195)				$ 140.09
22	WPW10534160		Grille, Toe (grey)   (Replaces: W10236194)			Immediately	$ 72.60
23	W11456069		Clamp, Tube   (Replaces: M0108107)			Immediately	$ 21.33
25	67006425		Screw   (Replaces: 12990511)			Immediately	$ 6.95
26	12726003		Cover, Water Line				$ 18.28
27	W10208593		Guard, Dual Water Valve				$ 14.96
28	WP7101P126-60		Screw, Block   (Replaces: 12990303)			Immediately	$ 7.61
29	12831101		Sweep, Dual Tube				$ 12.41
30	W10210980		Cover, Unit				$ 193.85
32	A3076901		Plug, Button				$ 5.70
33	12820505		Insulation				$ 71.70
34	WPW10141622		Brake, Roller   (Replaces: W10141622)			Immediately	$ 7.85
35	WPM0104106		Clip, Cord   (Replaces: M0104106)				$ 7.78
36	W10619951		Tube, Drain   (Replaces: W10210988)			Immediately	$ 42.39
37	WPM0114003		Clip, Speed   (Replaces: M0114003SP)				$ 11.05
