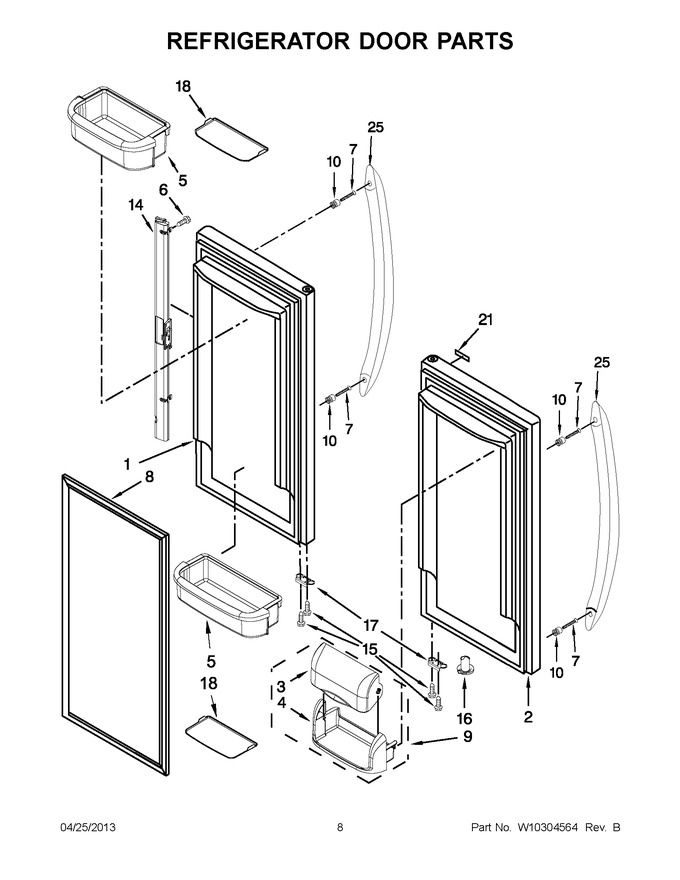

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12978044WQ | Door, Left (white) |
|
- | |||||
| 1 | 13107822SQ | Door, Left (stainless) |
|
$ 572.26 | |||||
| 1 | 12978073BQ | Door, Left (black) |
|
- | |||||
| 2 | 12978076BQ | Door, Right (black) |
|
- | |||||
| 2 | 12978043WQ | Door, Right (white) |
|
- | |||||
| 2 | 13107803SQ | Door, Right (stainless) |
|
$ 649.82 | |||||
| 3 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 82.67 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 88.01 | ||||
| 5 | WPW10371193 | Bucket, Medium (Replaces: 12849104SP) |
|
Immediately | $ 74.80 | ||||
| 5 | WPW10289489 | Bucket, Gallon (Replaces: 12918402SP) |
|
Immediately | $ 88.59 | ||||
| 5 | 12849101SP | Bucket, Small |
|
- | |||||
| 5 | 12918702SP | Bucket, Large |
|
$ 33.57 | |||||
| 6 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 7 | W10290759 | Screw |
|
$ 5.83 | |||||
| 8 | W11368721 | Gasket, Door (black (right Hand)) (Replaces: W10163895N) |
|
Immediately | $ 169.21 | ||||
| 8 | W10830162 | Gasket, Door (grey (right Hand)) (Replaces: W10179332N) |
|
Immediately | $ 212.57 | ||||
| 8 | W10830283 | Gasket, Door (grey (left Hand)) (Replaces: W10218680) |
|
$ 205.44 | |||||
| 8 | W10830189 | Gasket, Door (white (right Hand)) (Replaces: W10163894N) |
|
Immediately | $ 228.91 | ||||
| 8 | W10830289 | Gasket, Door (black (left Hand)) (Replaces: W10218679) |
|
Immediately | $ 204.87 | ||||
| 8 | W10830287 | Gasket, Door (white (left Hand)) (Replaces: W10218678) |
|
Immediately | $ 173.36 | ||||
| 9 | WP12744905 | Door, Dairy (Replaces: 12744905V) |
|
$ 113.99 | |||||
| 10 | WP67006113 | Mount, Handle (Replaces: 13001201) |
|
Immediately | $ 12.56 | ||||
| 14 | WP12722803AP | Mullion, Door (grey) (Replaces: 12722803AP) |
|
Immediately | $ 177.93 | ||||
| 14 | WP12722803W | Mullion, Door (white) (Replaces: 12722803W) |
|
Immediately | $ 261.21 | ||||
| 14 | WP12722803B | Mullion, Door (black) (Replaces: 12722803B) |
|
Immediately | $ 206.80 | ||||
| 15 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 16 | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
$ 90.32 | |||||
| 16 | WP67003638 | Closure, Door (white) (Replaces: 12028505W) |
|
Immediately | $ 8.15 | ||||
| 16 | WP12028505AP | Closure, Door (grey) (Replaces: 12028505AP) |
|
Immediately | $ 61.46 | ||||
| 17 | 12968202W | Stop, Door (white) |
|
$ 69.29 | |||||
| 17 | W11708403 | Stop, Door (black) (Replaces: 12968202B) |
|
Immediately | $ 14.75 | ||||
| 17 | W11703060 | Stop, Door (grey) (Replaces: 12968202AP) |
|
$ 15.46 | |||||
| 18 | WPW10450021 | Gripper, Medium (Replaces: 12567321SP) |
|
Immediately | $ 100.93 | ||||
| 18 | 12567324 | Gripper, Large |
|
- | |||||
| 18 | W10450004 | Gripper, Gallon (Replaces: 12567325) |
|
$ 100.36 | |||||
| 18 | W11408990 | Gripper, Small (Replaces: 12567323) |
|
Immediately | $ 85.90 | ||||
| 21 | W10046610 | Nameplate (grey) |
|
$ 33.40 | |||||
| 21 | WPW10243393 | Nameplate (white) (Replaces: W10046670) |
|
$ 69.98 | |||||
| 21 | WPW10243392 | Nameplate (black) (Replaces: W10046640) |
|
$ 73.70 | |||||
| 25 | W10314516N | Handle, Door (black) |
|
- | |||||
| 25 | WPW10314517K | Handle, Door (stainless) (Replaces: W10314517N) |
|
$ 243.37 | |||||
| 25 | WPW10314515 | Handle, Door (white) (Replaces: W10314515N) |
|
$ 238.49 |
