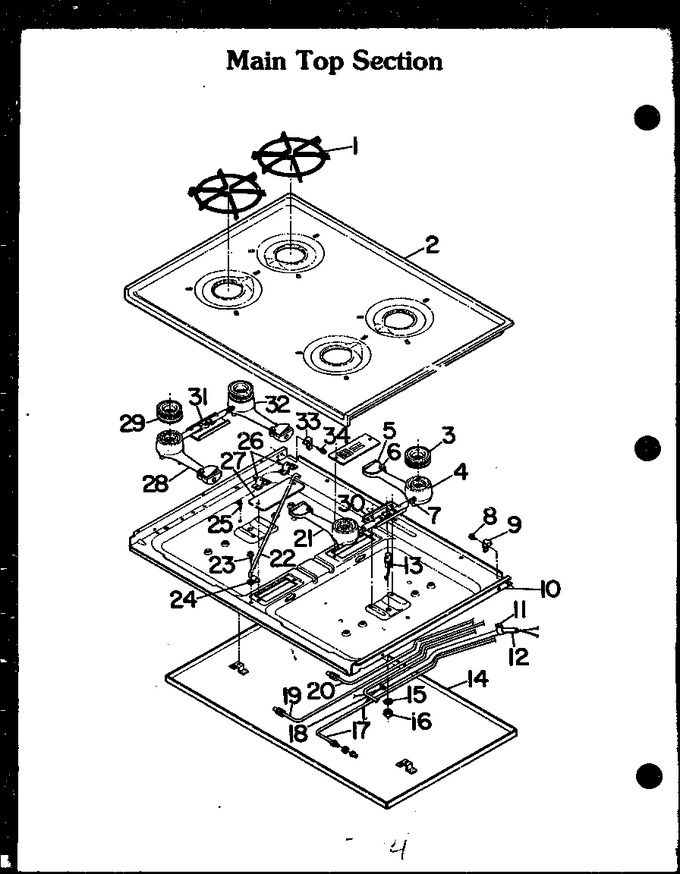

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0042357		Grate 1973 Gu&gis		Appelez-nous	-
2	0047401		Main Top		Appelez-nous	-
3	0042343		Burner Caps		Appelez-nous	-
4	41517		Oven Fitting		Appelez-nous	-
5	0040858		Air Shutter		Appelez-nous	-
6	Y0041802		Screw		Appelez-nous	-
7	42338		S U Switch		Appelez-nous	-
8	Y41808		Screw		Appelez-nous	-
9	42008		Main Top Rear Support		Appelez-nous	-
10	0040481		Burner Box Dki721		Appelez-nous	-
11	Y0041875		Wire Clip		Appelez-nous	-
12	41211		Code H		Appelez-nous	-
13	0042213		Mm7408130 Electrode		Appelez-nous	-
13	Y0042212		Electrode Uncapped 60``		Appelez-nous	-
14	40811		Burner Box Battle		Appelez-nous	-
15	45439		Washer		Appelez-nous	-
17	0042320		Orifice & Tube Assy. Ki721		Appelez-nous	-
18	0042321		Sub 42320, Orifice & Tube As.		Appelez-nous	-
19	0042320		Orifice & Tube Assy. Ki721		Appelez-nous	-
20	0042321		Sub 42320, Orifice & Tube As.		Appelez-nous	-
21	41516		Lighter Front				$ 173.24
22	42347		Crystal		Appelez-nous	-
23	Y41808		Screw		Appelez-nous	-
24	Y0041869		Timerman		Appelez-nous	-
25	Y41808		Screw		Appelez-nous	-
26	Y0040868		Conduit Retainer		Appelez-nous	-
27	Y0040644		Orifice Access Cover		Appelez-nous	-
28	41517		Oven Fitting		Appelez-nous	-
29	0042343		Burner Caps		Appelez-nous	-
30	Y0040976		Electrode Mtg Brkt		Appelez-nous	-
32	41516		Lighter Front				$ 173.24
33	42008		Main Top Rear Support		Appelez-nous	-
34	Y41808		Screw		Appelez-nous	-
NI	Y0042212		Electrode Uncapped 60``		Appelez-nous	-
NI	Y0040976		Electrode Mtg Brkt		Appelez-nous	-
NI	0042213		Mm7408130 Electrode		Appelez-nous	-
