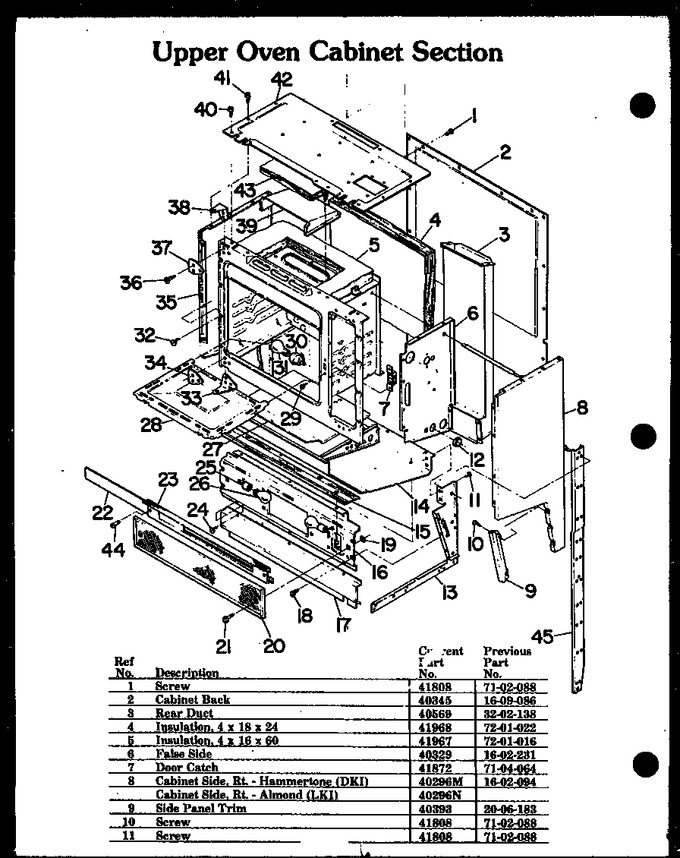

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y41808		Screw		Appelez-nous	-
2	Y0040345		Cabinet Back Gi Single Japan		Appelez-nous	-
3	Y0040569		Lower Duct W/a Ei&gi Japan		Appelez-nous	-
4	0041968		Ins Eye Level Back 4x18x24		Appelez-nous	-
5	Y0041967		Sub 41966, Insulation		Appelez-nous	-
6	Y0040329		False Side Ki-721		Appelez-nous	-
7	Y0041872		Door Catch		Appelez-nous	-
8	40296N		Cabinet Side, Rt. - Almond		Appelez-nous	-
9	0040393		Side Panel Trim		Appelez-nous	-
10	Y41808		Screw		Appelez-nous	-
11	Y41808		Screw		Appelez-nous	-
12	Y0042659		Snap Bushing		Appelez-nous	-
13	Y0040305		Side Rail Weld Assy Ei Single		Appelez-nous	-
13	Y0040304		Side Rail Right		Appelez-nous	-
15	0042541		Front Trim Il		Appelez-nous	-
16	40566		Sub 806029		Appelez-nous	-
17	C31134		Backsplash   (Replaces: 40382)				$ 45.36
18	Y41808		Screw		Appelez-nous	-
19	M0286708		Nut, Speed   (Replaces: Y0041867)				$ 43.07
20	0042021		Lwfilter 1000 Min		Appelez-nous	-
21	0041771		Screw 1/4 20x3/4 Knurl Chrome		Appelez-nous	-
22	0042766		Work Light Lens		Appelez-nous	-
23	0042499		Lamp Housing Front		Appelez-nous	-
24	Y41808		Screw		Appelez-nous	-
25	0042184		Work Light Socket		Appelez-nous	-
26	Y0042175		Bulb, Light		Appelez-nous	-
27	40665		Bottom Heat Shield		Appelez-nous	-
28	Y0051866		Sub 58627cg, Oven Bottom		Appelez-nous	-
29	41782		Screw, Panel Mtg.		Appelez-nous	-
30	73028		Fastener		Appelez-nous	-
31	Y0042175		Bulb, Light		Appelez-nous	-
32	Y41808		Screw		Appelez-nous	-
33	Y40522		Bottom Door Hinge		Appelez-nous	-
34	Y0040384		Hingetrim All Eyelevel		Appelez-nous	-
35	40297N		Cabinet Side, Lt. - Almond		Appelez-nous	-
36	41800		Screw, Hinge Mtg.		Appelez-nous	-
37	Y0040384		Hingetrim All Eyelevel		Appelez-nous	-
38	0040521		Sub 40526, Hinge, Door, Top		Appelez-nous	-
39	Y0040571		Flue Box W/a Gi		Appelez-nous	-
40	Y41808		Screw		Appelez-nous	-
41	Y41808		Screw		Appelez-nous	-
42	Y0040281		Cabinet Top Eye Level Japan		Appelez-nous	-
44	Y0041832		Screw No.8x3/8 Sq. Drive		Appelez-nous	-
NI	Y0040381		Low Backsplash Mh Single Japan		Appelez-nous	-
NI	0042028		Cord Set (j)		Appelez-nous	-
NI	Y0040648		Disconnect Cover		Appelez-nous	-
NI	0042661		Plug Button For 3/4 Hole Black		Appelez-nous	-
NI	40379M		Side Rail, Rt. - Hammertone		Appelez-nous	-
NI	40379N		Side Rail, Rt. - Almond		Appelez-nous	-
NI	40380N		Side Rail, Lt. - Almond		Appelez-nous	-
NI	Y0040781		Oven Back Insul Retainer		Appelez-nous	-
NI	41874		Thermostat Bulb Clip, Lower Ov		Appelez-nous	-
