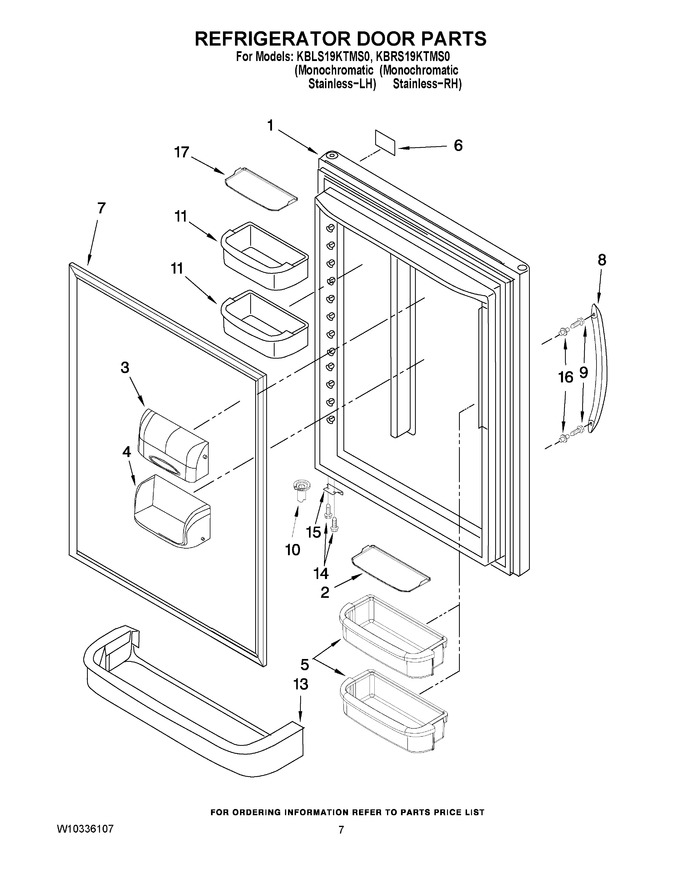

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13107541SQ | Door, Refrigerator (lh) (Replaces: 13107512SQ) |
|
$ 1,075.94 | |||||
| 1 | 13107539SQ | Door, Refrigerator (rh) (Replaces: 13107510SQ) |
|
$ 1,117.77 | |||||
| 2 | WPW10450021 | Gripper, Medium (Replaces: 12567321SP) |
|
Immediately | $ 96.12 | ||||
| 3 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 78.73 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 83.82 | ||||
| 5 | WPW10371194 | Bucket, Medium (Replaces: 12849106) |
|
Immediately | $ 73.55 | ||||
| 6 | W10046610 | Nameplate |
|
$ 33.40 | |||||
| 7 | W11676571 | Gasket, Door (apollo Grey) (Replaces: W10180619) |
|
$ 217.01 | |||||
| 8 | WPW10314517K | Handle, Door (mono Stainless) (Replaces: W10314517N) |
|
$ 231.78 | |||||
| 9 | W10290759 | Screw, Handle |
|
$ 5.83 | |||||
| 10 | WP12028505AP | Closure, Door (mono Stainless) (Replaces: 12028505AP) |
|
Immediately | $ 61.46 | ||||
| 11 | WPW10351081 | Bucket, Small (Replaces: 12849103) |
|
Immediately | $ 73.03 | ||||
| 13 | 67001139 | Retainer, Door (Replaces: 12557904) |
|
Immediately | $ 99.80 | ||||
| 14 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.00 | |||||
| 15 | W11401472 | Stop, Door (Replaces: 10447114) |
|
Immediately | $ 22.44 | ||||
| 16 | WP67006113 | Mount-handle (Replaces: 13001201) |
|
Immediately | $ 11.96 | ||||
| 17 | W11408990 | Gripper, Small (Replaces: 12567323) |
|
Immediately | $ 81.81 |
