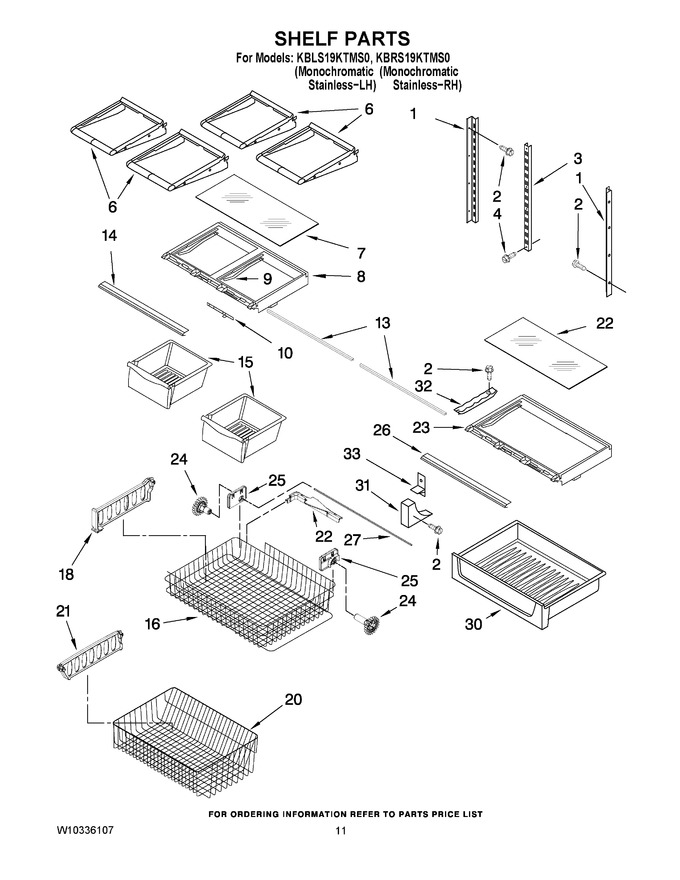

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10251970 | Ladder, Side |
|
$ 28.47 | |||||
| 2 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 6.95 | ||||
| 3 | W10273463 | Ladder, Center |
|
$ 28.20 | |||||
| 4 | 67006425 | Screw (2) (Replaces: 12990513) |
|
Immediately | $ 6.95 | ||||
| 6 | W11402522 | Shelf, Glide (4) (Replaces: 12463408) |
|
$ 203.51 | |||||
| 7 | WP67006877 | Glass, Crisper (Replaces: 12204823) |
|
Immediately | $ 209.75 | ||||
| 8 | WPW10671240 | Frame, Crisper (Replaces: 12530901SP) |
|
Immediately | $ 138.10 | ||||
| 9 | WPW10671238 | Support, Center Crisper Drawer (Replaces: 12530701N) |
|
Immediately | $ 112.82 | ||||
| 10 | WP67005864 | Slide, Humidity Control (Replaces: 12530805SP) |
|
Immediately | $ 7.81 | ||||
| 13 | WP12227302WD | Support, Crisper Frame (Replaces: 12227302WD) |
|
$ 106.29 | |||||
| 14 | WPW10231481 | Trim, Crisper (Replaces: W10231481) |
|
$ 111.83 | |||||
| 15 | W10833530 | Pan, Crisper (2) (Replaces: 12724121) |
|
$ 151.06 | |||||
| 16 | W10169953 | Basket, Freezer Upper |
|
- | |||||
| 18 | W10241046 | Divider, (upper Basket) |
|
Immediately | $ 27.80 | ||||
| 20 | W10503182 | Basket, Freezer (lower) (Replaces: W10146449) |
|
$ 230.45 | |||||
| 21 | W10205416 | Divider, Lower Basket |
|
- | |||||
| 22 | WP67006877 | Glass, Pantry (Replaces: 12204823) |
|
Immediately | $ 209.75 | ||||
| 23 | WPW10671240 | Frame, Pantry (Replaces: 12530901SP) |
|
Immediately | $ 138.10 | ||||
| 24 | WPW10474715 | Gear, Spur (right) (Replaces: W10146446) |
|
Immediately | $ 31.20 | ||||
| 24 | WPW10474716 | Gear, Spur (left) (Replaces: W10158749) |
|
Immediately | $ 30.88 | ||||
| 25 | W10348259 | Mount (left) (Replaces: W10233898) |
|
$ 85.59 | |||||
| 25 | W10348260 | Mount (right) (Replaces: W10233899) |
|
$ 85.62 | |||||
| 26 | W10656984 | Trim, Pantry (Replaces: W10231491) |
|
$ 80.67 | |||||
| 27 | 12812906WD | Shaft, Rack |
|
$ 42.54 | |||||
| 30 | W10328331 | Drawer, Pantry (Replaces: 12645022) |
|
Immediately | $ 147.05 | ||||
| 31 | WP67001721 | Support, Pantry (left) (Replaces: 12531001) |
|
Immediately | $ 8.70 | ||||
| 31 | WP67001722 | Support, Pantry (right) (Replaces: 12531002) |
|
Immediately | $ 8.93 | ||||
| 32 | WP67001719 | Track, Pantry (Replaces: 12531901) |
|
Immediately | $ 8.56 | ||||
| 33 | WP67001716 | Hook-ladder (2) (Replaces: 12531802) |
|
Immediately | $ 10.61 |
