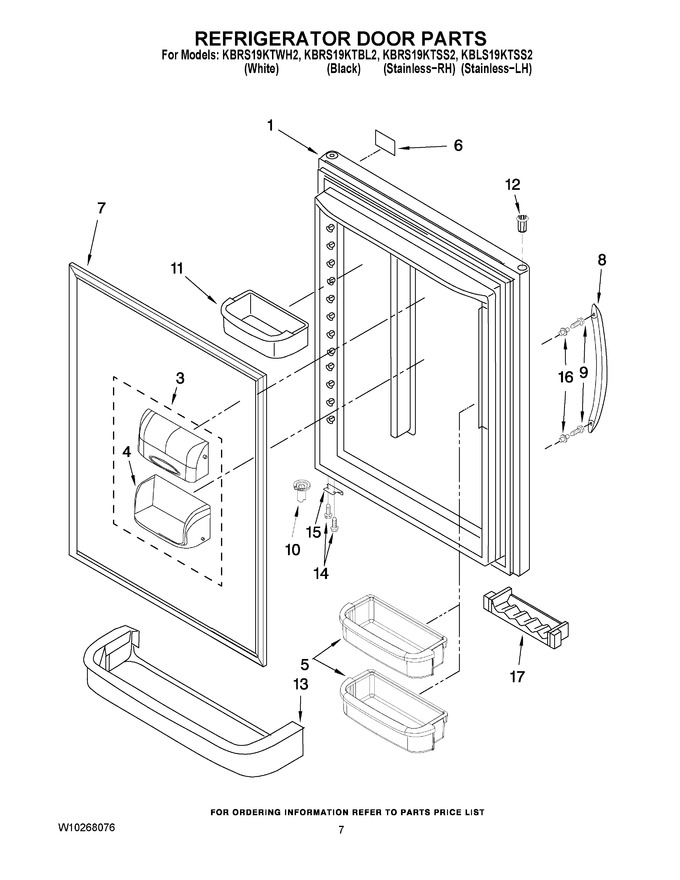

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 12658567WQ Door, Refrigerator (white) Special Order $ 451.89

1 13023847SQ Door, Ref (stainless)(lh) Special Order $ 498.94

1 13023846SQ Door, Ref (stainless)(rh) Appelez-nous -
1 12658567BQ Door, Refrigerator (black) Special Order $ 252.38

3 WP12744905 Door, Dairy (includes No.4)   (Replaces: 12744905V) Special Order $ 108.56

4 WP67001279 Tray, Dairy   (Replaces: 12369502SP) In-Stock Immediately $ 83.82

5 WPW10371194 Bucket, Shelf (2) (medium)   (Replaces: 12849124K) In-Stock Immediately $ 73.55

6 W10046610 Nameplate (stainless) Special Order $ 33.40

6 WPW10243392 Nameplate (black)   (Replaces: W10046640) Special Order $ 70.19

6 WPW10243393 Nameplate (white)   (Replaces: W10046670) Special Order $ 66.65

7 WPW10443309 Gasket, Door (white)   (Replaces: W10164030) In-Stock Immediately $ 347.85

7 WPW10436245 Gasket, Door (black)   (Replaces: W10164031) Special Order $ 345.10

8 WPW10314515 Handle, Door (white)   (Replaces: W10119642) Special Order $ 227.13

8 W10119643 Handle, Door (black) Appelez-nous -
8 WPW10314517K Handle, Door (stainless)   (Replaces: W10119644) Special Order $ 231.78

9 WP67006113 Mount-handle   (Replaces: 13001201) In-Stock Immediately $ 11.96

10 WP67003639 Closure, Door (black)   (Replaces: 12028505B) Special Order $ 86.02

10 WP67003638 Closure, Door (white)   (Replaces: 12028505W) In-Stock Immediately $ 7.76

11 12557211SP Bucket, Shelf (1) (small) Appelez-nous -
12 WP67004977 Bushing, Door (white)   (Replaces: 10961006W) Special Order $ 7.81

12 67004978 Bushing, Door (black)   (Replaces: 10961006B) Special Order $ 21.05

13 12690501 Retainer, Door Special Order $ 41.75

14 WP98165 Screw   (Replaces: 12990504) Special Order $ 8.00

15 12968202W Stop, Door (white)   (Replaces: 10447111) Special Order $ 65.99

15 W11708403 Stop, Door (black)   (Replaces: 10447112) In-Stock Immediately $ 14.05

16 WP67006113 Mount-handle   (Replaces: 13001201) In-Stock Immediately $ 11.96

17 WP67005626 Caddy, Can   (Replaces: 12690102V) Special Order $ 77.61
