Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 12710606 Ladder, Side Appelez-nous -
2 67006425 Screw   (Replaces: 12990513) In-Stock Immediately $ 6.95

3 67001073 Ladder, Center   (Replaces: 12435807) Special Order $ 54.18

4 W10709795 Screw (2)   (Replaces: 12990515) Special Order $ 13.13

6 W11402522 Shelf, Glide (4)   (Replaces: 12463408V) Special Order $ 203.51

7 WP67006877 Glass, Crisper   (Replaces: 12204823) In-Stock Immediately $ 209.75

8 WPW10671240 Frame, Crisper   (Replaces: 12530901SP) In-Stock Immediately $ 138.10

9 WPW10671238 Support, Center Crisper Drawer   (Replaces: 12530701) In-Stock Immediately $ 112.82

10 WP67005864 Slide, Humidity Control   (Replaces: 12530805SP) In-Stock Immediately $ 7.81

13 WP12227302WD Support, Crisper Frame   (Replaces: 12227302WD) Special Order $ 106.29

14 W10656984 Trim, Crisper   (Replaces: 12530647) Special Order $ 80.67

15 W10833530 Pan, Crisper (2)   (Replaces: 12724121) Special Order $ 151.06

16 12896401 Basket, Freezer Upper Appelez-nous -
18 12693802 Divider, Upper Basket Appelez-nous -
20 W10503182 Basket, Freezer (lower)   (Replaces: W10143560) Special Order $ 230.45

21 12659608 Divider, Lower Basket Appelez-nous -
22 WP67006877 Glass, Pantry   (Replaces: 12204823) In-Stock Immediately $ 209.75

23 WPW10671240 Frame, Pantry   (Replaces: 12530901SP) In-Stock Immediately $ 138.10

26 W10656984 Trim, Pantry   (Replaces: W10231491) Special Order $ 80.67

29 WP12227302WD Support, Rear   (Replaces: 12227302WD) Special Order $ 106.29

30 W10328331 Drawer, Pantry   (Replaces: 12645022) In-Stock Immediately $ 147.05

31 WP67001721 Support, Pantry (left)   (Replaces: 12531001) In-Stock Immediately $ 8.70

31 WP67001722 Support, Pantry (right)   (Replaces: 12531002) In-Stock Immediately $ 8.93

32 WP67001719 Track, Pantry   (Replaces: 12531901) In-Stock Immediately $ 8.56

33 WP67001716 Hook-ladder (2)   (Replaces: 12531802) In-Stock Immediately $ 10.61


    View Diagram in Separate Window     Print Icon   Print Part List

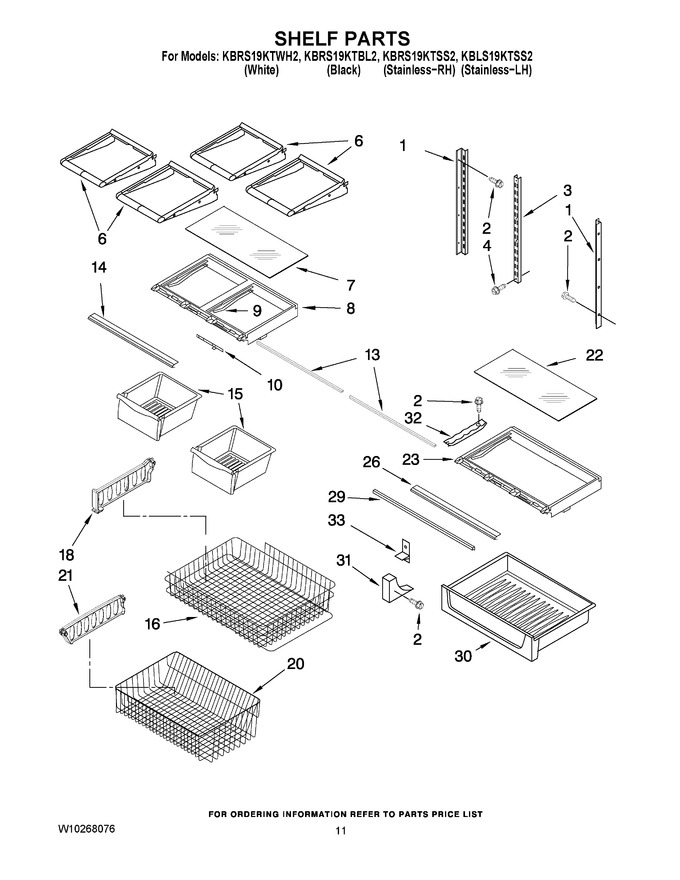

Diagram for KBLS19KTSS2
