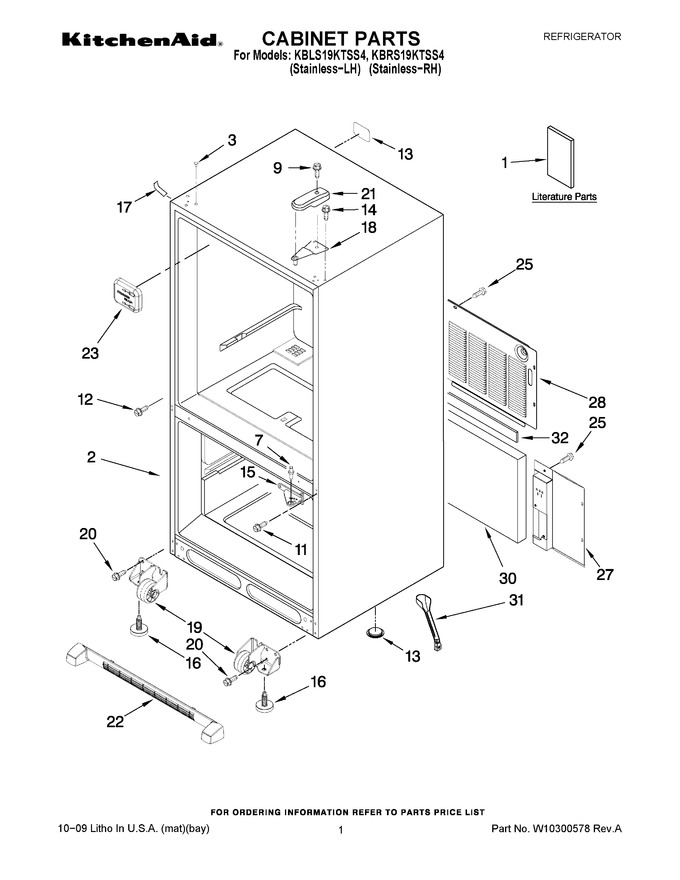

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Freezer Liner Parts


04 - Refrigerator Door Parts


05 - Freezer Door Parts


06 - Shelf Parts


07 - Unit Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10183307		Energy Guide		Appelez-nous	-
1	W10279329		Tech Sheet		Appelez-nous	-
1	W10137649		Use & Care Guide		Appelez-nous	-
2	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
3	WP67001130		Plug, Button   (Replaces: 12246607)			Immediately	$ 5.98
7	WP67006642		Pin, Center Hinge   (Replaces: 10351006)				$ 7.93
9	WP8281196		Screw   (Replaces: 12992602)			Immediately	$ 7.19
11	W11573362		Screw   (Replaces: 12992201)				$ 14.02
12	WP98165		Screw   (Replaces: 12990521)				$ 8.00
13	W11685757		Label, Fill Tube   (Replaces: 12249902)				$ 7.06
14	WP489349		Screw   (Replaces: 12992403)			Immediately	$ 7.88
15	WP12607104ED		Hinge, Center (black)   (Replaces: 12607104ED)				$ 152.73
16	WPW10141622		Foot Brake (2)   (Replaces: W10141622)			Immediately	$ 7.85
17	67003485		Cover, Corner (black)   (Replaces: 12587703B)			Immediately	$ 21.09
18	WP12566606ED		Hinge, Top   (Replaces: 12566606ED)			Immediately	$ 44.89
19	W11820444		Roller Assembly (left)   (Replaces: W10275850)			Immediately	$ 35.57
19	W11820445		Roller Assembly (right)   (Replaces: W10275849)			Immediately	$ 35.57
20	WP98165		Screw   (Replaces: 12990521)				$ 8.00
21	67001012		Cover, Hinge   (Replaces: 12477601B)				$ 47.34
22	WPW10534167		Grille Assembly (includes Clips) (black)   (Replaces: W10236650)				$ 91.42
23	WP67001098		Cover-fill Tube   (Replaces: 12477501)				$ 8.03
25	67006425		Screw   (Replaces: 12990511)			Immediately	$ 6.95
27	W11684617		Cover, Water Valve   (Replaces: W10217701)				$ 20.34
28	W10210978		Cover, Unit				$ 192.17
30	12820505		Insulation, Sound				$ 71.70
31	W10619951		Tube, Drain   (Replaces: W10210987)			Immediately	$ 42.39
32	B5759655		Gasket				$ 12.41
