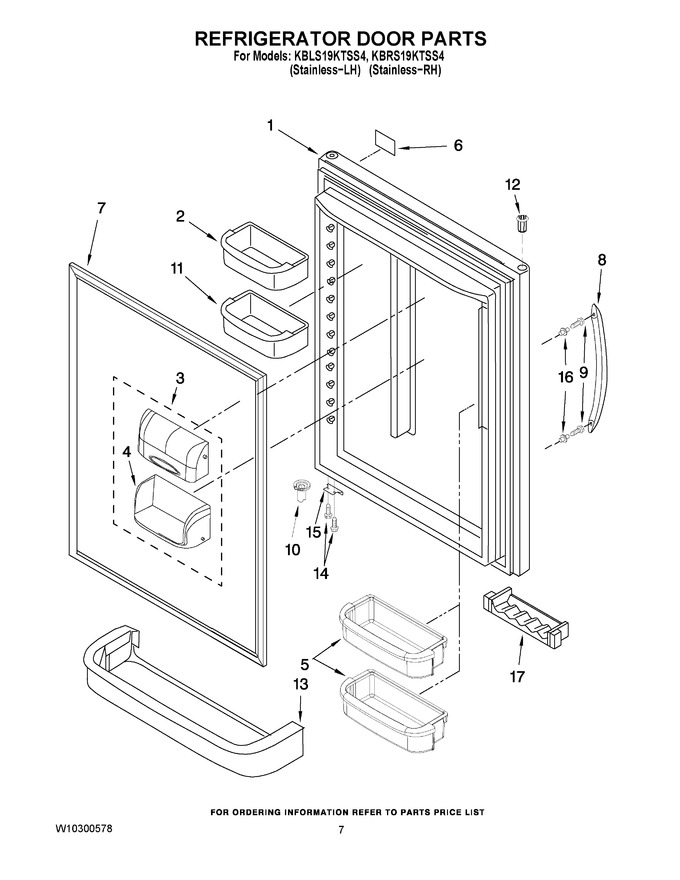

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13023887SQ | Door, Refrigerator (stainless Steel-lh) |
|
- | |||||
| 1 | 13023886SQ | Door, Refrigerator (stainless Steel-rh) |
|
- | |||||
| 2 | 12643908 | Bucket, Short |
|
- | |||||
| 3 | WP12744905 | Door, Dairy (includes No.4) (Replaces: 12744905V) |
|
$ 113.99 | |||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 88.01 | ||||
| 5 | WPW10371194 | Bucket, Medium (Replaces: 12849106V) |
|
Immediately | $ 77.23 | ||||
| 6 | W10046610 | Nameplate |
|
$ 33.40 | |||||
| 7 | WPW10436247 | Gasket, Door (black) (Replaces: W10164033) |
|
Immediately | $ 355.53 | ||||
| 8 | WPW10314517K | Handle, Door (stainless) (Replaces: W10119644) |
|
$ 243.37 | |||||
| 9 | WP3387230 | Screw, Handle (Replaces: 3196181) |
|
Immediately | $ 8.54 | ||||
| 10 | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
$ 90.32 | |||||
| 11 | WPW10351081 | Bucket, Shelf (1) (small) (Replaces: 12849103V) |
|
Immediately | $ 73.03 | ||||
| 12 | 67004978 | Bushing, Door (black) (Replaces: 10961006B) |
|
$ 22.10 | |||||
| 13 | 12690501 | Retainer, Door |
|
$ 41.75 | |||||
| 14 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 15 | W11708403 | Stop, Door (Replaces: 10447112) |
|
Immediately | $ 14.75 | ||||
| 16 | 12691403 | Mount, Handle |
|
- | |||||
| 17 | WP67005626 | Caddy, Can (Replaces: 12690102V) |
|
$ 81.49 |
