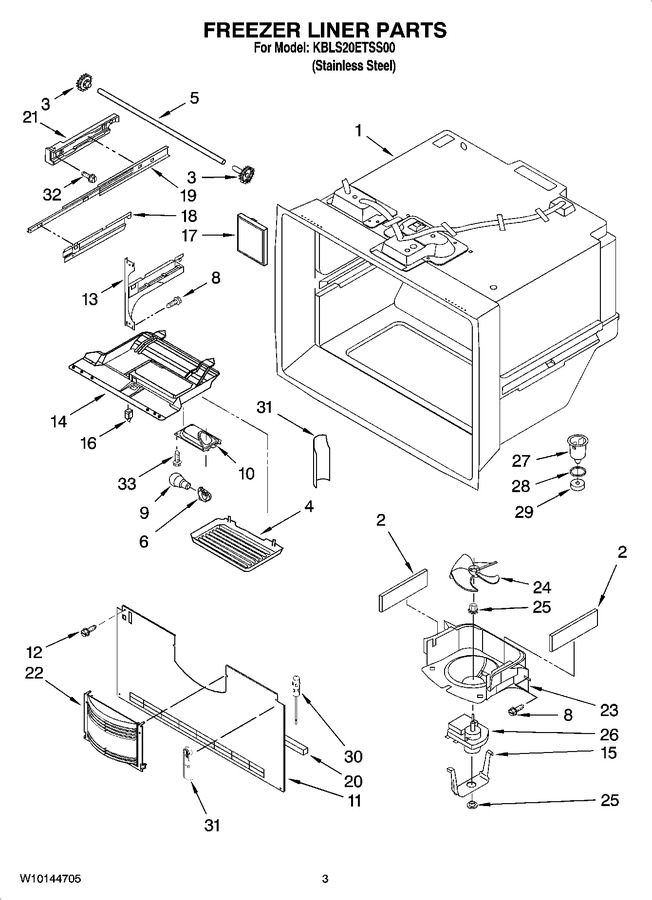

SELECT A DIAGRAM

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Freezer Door Parts


08 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	W10856123		Gasket, Foam   (Replaces: 67001291)			Immediately	$ 8.06
3	12002497		Gear (2) (includes Rh & Lh)			Immediately	$ 22.51
4	67003905		Cover, Light		Appelez-nous	-
5	W11028221		Shaft   (Replaces: 67004017)				$ 33.24
6	W11447232		Socket, Light   (Replaces: 8170839)			Immediately	$ 13.87
8	WP33001882		Screw   (Replaces: 67006737)				$ 83.71
9	W11679940		Bulb, Light   (Replaces: A0282812)			Immediately	$ 11.30
10	W11702858		Housing, Frz. Light   (Replaces: 67001035)				$ 90.11
11	W11727809		Cover, Evaporator   (Replaces: 67005873)				$ 94.02
12	67006425		Screw			Immediately	$ 7.30
13	WPW10330993		Bracket, Door (right)   (Replaces: 67004733)				$ 166.09
13	WPW10330991		Bracket, Door (left)   (Replaces: 67004732)				$ 164.31
14	67003906		Housing, Lighting				$ 116.80
15	WP67005633		Clip, Evap. Motor   (Replaces: 8208285)				$ 8.07
16	W11396033		Switch, Light   (Replaces: 67005653)			Immediately	$ 37.30
17	WP67001098		Cover, Plug   (Replaces: 8170922)				$ 8.43
18	67004972		Bracket, Basket (right)				$ 30.98
18	W10284690		Bracket, Basket (left)   (Replaces: 67004971)				$ 78.55
19	13031602		Slide, Drawer (2)				$ 155.01
20	W11159728		Gasket, Bottom   (Replaces: 67002492)			Immediately	$ 28.86
21	W10251557		Bracket, Slide (left)   (Replaces: 67004728)				$ 110.04
21	W10251557		Bracket, Slide (right)   (Replaces: 67004729)				$ 110.04
22	WPW10175909		Cover, Fan Shroud   (Replaces: 13024802)			Immediately	$ 85.72
23	67002777		Shroud, Evap.fan				$ 60.88
24	WP2169142		Fan, Evaporator   (Replaces: 12217201)			Immediately	$ 43.41
25	WP67002780		Grommet (2)   (Replaces: 67002780)				$ 8.20
26	WPW10128551		Motor, Evaporator   (Replaces: 67003636)			Immediately	$ 78.75
27	W10815413		Funnel, Drain (incl. 28 & 29)   (Replaces: D7753903)			Immediately	$ 51.50
28	WPM0500703		Seal   (Replaces: M0500703)				$ 11.47
29	WPB8381501		Gasket   (Replaces: B8381501)				$ 7.78
30	12002355		Thermistor			Immediately	$ 47.36
31	WP67003924		Cover, Thermistor   (Replaces: 67003924)				$ 8.21
32	WP489474		Screw   (Replaces: 67006406)			Immediately	$ 8.55
33	67006095		Harness, Lights (freezer)		Appelez-nous	-
33	67006530		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
