SELECT A DIAGRAM

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Freezer Door Parts


08 - Icemaker Parts, Optional Parts (not Included)

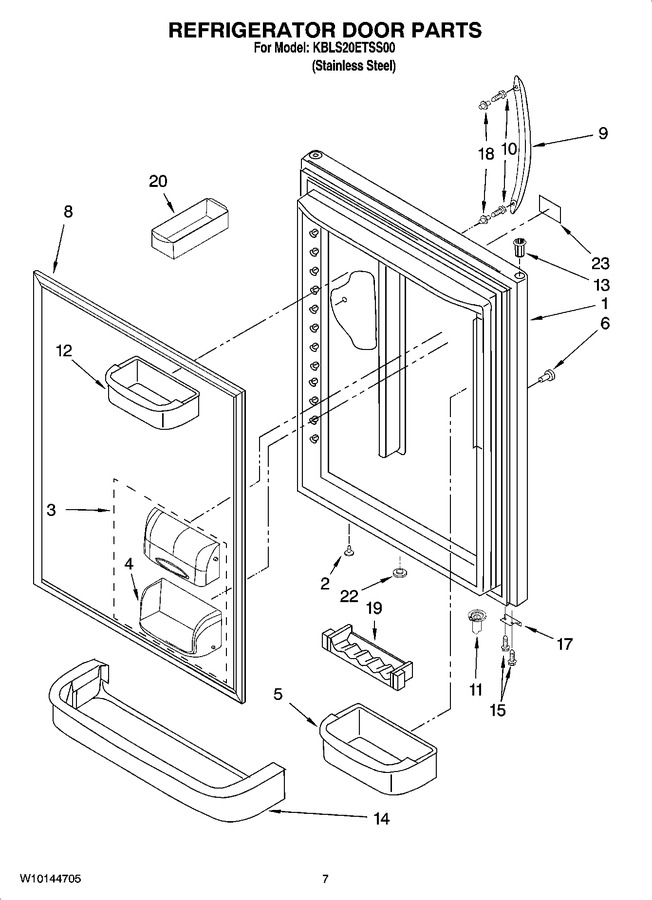

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10136662		Refrigerator Door (w/ Insulation) (stainless Steel)		Appelez-nous	-
2	WP12246608		Plug, Vent (black)   (Replaces: 67001131)			Immediately	$ 8.15
3	WP12744905		Door, Compartment   (Replaces: 67003819)				$ 113.99
4	WP67001279		Tray, Dairy   (Replaces: 67001279)			Immediately	$ 88.01
5	67005724		Bin, Shelf (1) (medium)		Appelez-nous	-
6	WP12246608		Plug, Handle Hole (black)   (Replaces: 67001131)			Immediately	$ 8.15
8	W10849442		Gasket, Door Magnetic (black)   (Replaces: W10133881)				$ 361.55
9	2319727S		Handle, Door (stainless Steel)				$ 133.96
10	WP3387230		Screw   (Replaces: 67002935)			Immediately	$ 8.54
11	WP67003639		Closure, Door (black)   (Replaces: 67003639)				$ 90.32
12	67005464		Bin, Shelf (3) (large)				$ 35.95
13	67004978		Bushing (black)				$ 22.10
14	67003027		Trim, Door Shelf		Appelez-nous	-
15	WP98165		Screw   (Replaces: 67006287)				$ 8.57
17	W11708403		Stop, Door (black)   (Replaces: 67003780)			Immediately	$ 14.75
18	67004790		Stud, Handle				$ 9.66
19	WP67005626		Caddy, Can   (Replaces: 67005626)				$ 81.49
20	W10136387A		Bin, Egg   (Replaces: W10136387)				$ 19.54
22	67004838		Plug, Vent (black)				$ 11.21
23	W10046610		Nameplate (grey)				$ 33.40

    View Diagram in Separate Window       Print Part List
