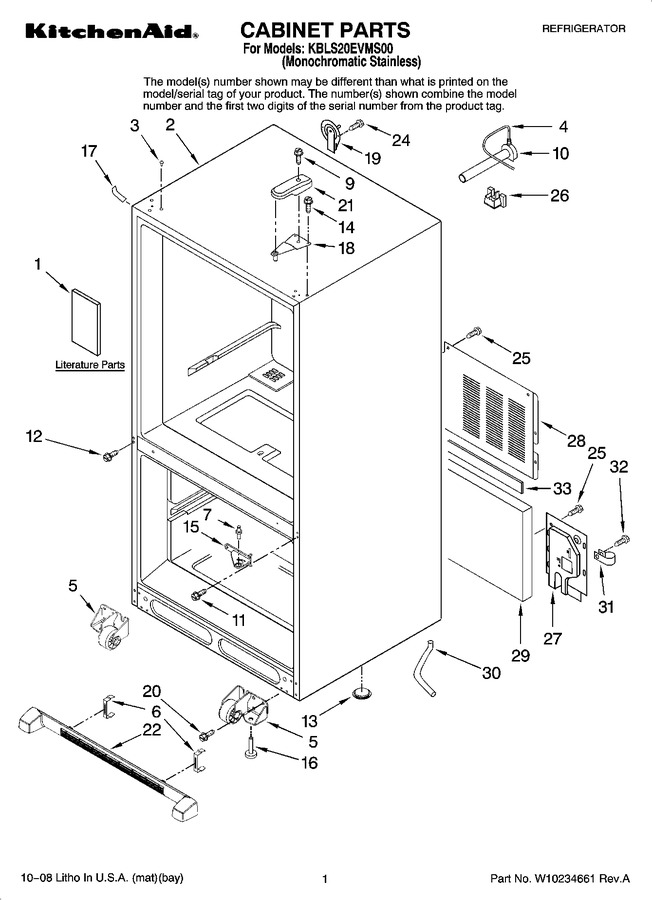

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10209771 | Energy Guide |
|
- | |||||
| 1 | 67006616 | Tech Sheet |
|
- | |||||
| 1 | W10137649 | Use & Care Guide |
|
- | |||||
| 3 | WP12246608 | Plug, Button (Replaces: 67001131) |
|
Immediately | $ 8.15 | ||||
| 4 | WPB5705307 | Tube, Plastic (Replaces: B5705307) |
|
$ 13.05 | |||||
| 5 | W11820444 | Roller Foot Assembly (lh) (Replaces: W10237085) |
|
Immediately | $ 37.35 | ||||
| 5 | W11820445 | Roller Foot Assembly (rh) (Replaces: W10237087) |
|
Immediately | $ 37.35 | ||||
| 6 | 12627302 | Grille, Clip |
|
$ 5.84 | |||||
| 7 | WP67006642 | Pin, Center Hinge (Replaces: 67006642) |
|
$ 8.78 | |||||
| 9 | WP8281196 | Screw (Replaces: 67006521) |
|
Immediately | $ 7.55 | ||||
| 10 | W11176463 | Elbow, Fill Tube (Replaces: W10137519) |
|
Immediately | $ 119.86 | ||||
| 11 | W11573362 | Screw (Replaces: 67006380) |
|
$ 14.72 | |||||
| 12 | WP98165 | Screw (Replaces: 67006473) |
|
$ 8.57 | |||||
| 13 | A3076901 | Plug, Button |
|
$ 5.70 | |||||
| 14 | WP489349 | Screw (Replaces: 67006303) |
|
Immediately | $ 8.43 | ||||
| 15 | WP12607104ED | Hinge, Center (black) (Replaces: 12607104ED) |
|
$ 167.35 | |||||
| 16 | WPW10141622 | Foot Brake (2) (Replaces: W10141622) |
|
Immediately | $ 8.24 | ||||
| 17 | WP12587703AP | Cover, Corner (apollo Grey) (Replaces: W10191102) |
|
$ 8.07 | |||||
| 18 | WP12566606ED | Hinge, Top (Replaces: 12566606ED) |
|
Immediately | $ 47.13 | ||||
| 19 | 12726003 | Cover, Water Line (Replaces: 67003331) |
|
$ 19.19 | |||||
| 20 | 67006564 | Screw (8) |
|
Immediately | $ 8.15 | ||||
| 21 | W11106366 | Cover, Hinge (Replaces: 12477601AP) |
|
$ 75.82 | |||||
| 22 | W10131134 | Grille Assembly (includes Clips) (black) |
|
$ 53.25 | |||||
| 24 | WP98165 | Screw (Replaces: 67006287) |
|
$ 8.57 | |||||
| 25 | 67006425 | Screw |
|
Immediately | $ 7.30 | ||||
| 26 | 67004092 | Block, Filter |
|
- | |||||
| 27 | 12751509 | Cover, Water Valve |
|
- | |||||
| 28 | 12575101WD | Cover, Unit |
|
$ 73.26 | |||||
| 29 | 67003796 | Insulation, Sound |
|
$ 19.27 | |||||
| 30 | W10164397 | Tube, Drain |
|
$ 15.53 | |||||
| 31 | W10157973 | Clip, Drain Tube |
|
$ 7.80 | |||||
| 32 | WP33001882 | Screw (Replaces: 67006737) |
|
$ 83.71 | |||||
| 33 | B5759649 | Gasket |
|
- |
