Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 13023867SQ Door, Refrigerator (stainless) Appelez-nous -
2 67004838 Plug, Vent (black) Special Order $ 11.21

3 WP12744905 Door, Dairy (includes 4)   (Replaces: 67003819) Special Order $ 113.99

4 WP67001279 Tray, Dairy   (Replaces: 67001279) In-Stock Immediately $ 88.01

5 12567322SP Gripper, Bucket Appelez-nous -
6 W10046610 Nameplate Special Order $ 33.40

8 W10179478 Gasket, Door (apollo Grey) Appelez-nous -
9 WPW10314517K Handle, Door (stainless)   (Replaces: W10119644) Special Order $ 243.37

10 WP67006113 Mount, Handle   (Replaces: 67006113) In-Stock Immediately $ 12.56

11 WP12028505AP Closure, Door (apollo Grey)   (Replaces: W10191100) In-Stock Immediately $ 61.46

12 67005464 Bucket, Large (2) Special Order $ 35.95

13 10961006AP Bushing, Door (apollo Grey) Special Order $ 9.65

14 12690503 Retainer, Door Special Order $ 48.08

15 WP98165 Screw   (Replaces: 67006287) Special Order $ 8.57

17 W11401472 Stop, Door (apollo Grey)   (Replaces: 10447114) In-Stock Immediately $ 23.56

18 WP67006113 Mount, Handle   (Replaces: 67006113) In-Stock Immediately $ 12.56

19 WP67005626 Caddy, Can   (Replaces: 67005626) Special Order $ 81.49


    View Diagram in Separate Window     Print Icon   Print Part List

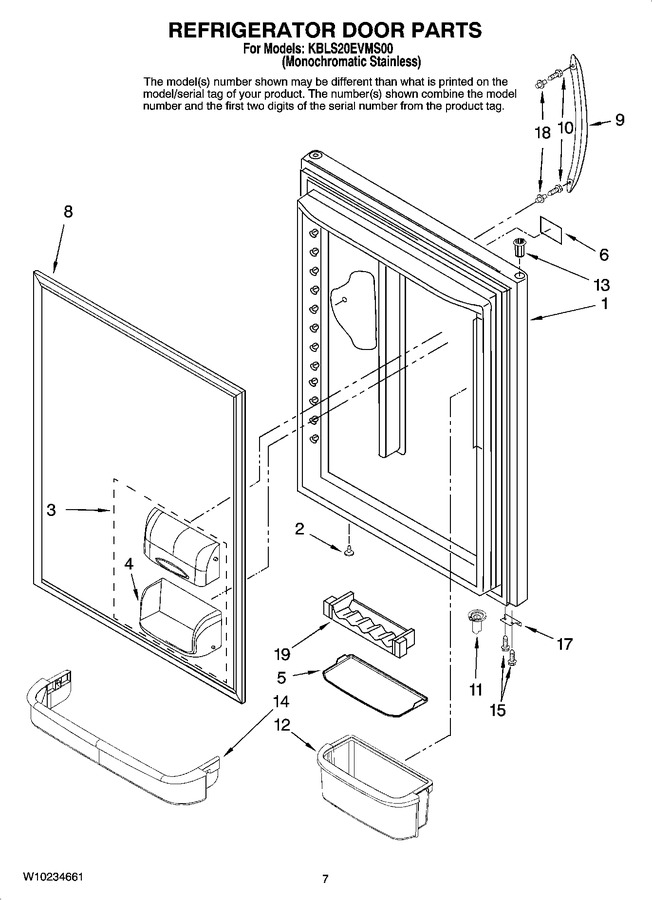

Diagram for KBLS20EVMS00
