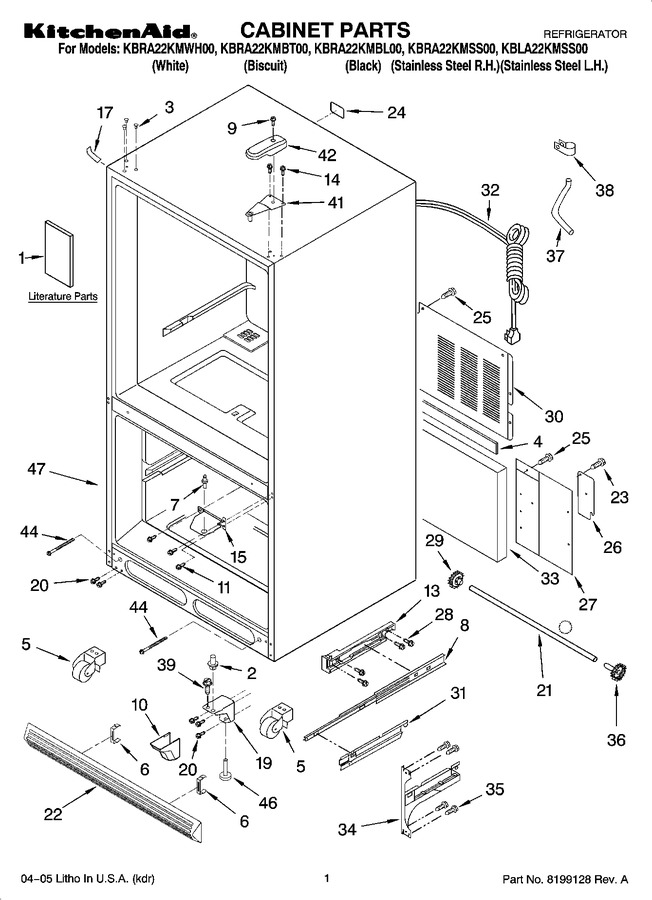

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8171242		Tech Sheet		Appelez-nous	-
1	8171243		Use & Care Guide		Appelez-nous	-
1	8171244		Energy Tag		Appelez-nous	-
2	67007018		Pin, Bottom Hinge   (Replaces: 4344178)			Immediately	$ 8.62
3	8170487		Plug, Button (3) (biscuit)		Appelez-nous	-
3	WP2189000		Plug, Button (3) (white)   (Replaces: 4344209)			Immediately	$ 7.77
3	WP2189009		Plug, Button (3) (black)   (Replaces: 4344208)				$ 7.61
4	8170924		Gasket		Appelez-nous	-
5	8170886		Roller Assembly		Appelez-nous	-
6	8170869		Clip, Grille		Appelez-nous	-
7	12002311		Pin, Center Hinge   (Replaces: 8171216)				$ 8.24
8	8171228		Slide, Drawer		Appelez-nous	-
9	WP8281196		Screw   (Replaces: 8171215)			Immediately	$ 7.55
10	8171004		Hinge Cover, Bottom (white)		Appelez-nous	-
10	8171002		Hinge Cover, Bottom (black)		Appelez-nous	-
10	8171003		Hinge Cover, Bottom (biscuit)		Appelez-nous	-
11	W11573362		Screw   (Replaces: 4344186)				$ 14.72
13	8171230		Adapter (left Side)		Appelez-nous	-
13	8171231		Adapter (right Side)		Appelez-nous	-
14	WP489349		Screw   (Replaces: 4344198)			Immediately	$ 8.43
15	WP12607104ED		Hinge, Center (black)   (Replaces: 8170980)				$ 167.35
15	W11689473		Hinge, Center (white)   (Replaces: 8170981)				$ 69.79
17	8170859		Cover, Corner (biscuit)		Appelez-nous	-
17	67003485		Cover, Corner (black)   (Replaces: 8170858)			Immediately	$ 22.14
17	67003484		Cover, Corner (white)   (Replaces: 8170860)				$ 21.42
19	8171066		Hinge Bottom (black)		Appelez-nous	-
19	8171067		Hinge Bottom (white)		Appelez-nous	-
20	8171202		Screw		Appelez-nous	-
21	W11715937		Shaft, Rack   (Replaces: 8171229)				$ 68.69
22	8170996		Grille Assembly (includes Clips) (white)		Appelez-nous	-
22	8170997		Grille Assembly (includes Clips) (biscuit)		Appelez-nous	-
22	8171224		Grille Assembly (includes Clips) (black)		Appelez-nous	-
23	681390		Screw   (Replaces: 4343694)				$ 13.71
24	WP628356		Plug, I/m   (Replaces: 8170928)				$ 53.75
25	4344167		Screw		Appelez-nous	-
26	8170921		Plate, Cover		Appelez-nous	-
27	8170920		Cover, Water Valve		Appelez-nous	-
28	WP489474		Screw   (Replaces: 4343690)			Immediately	$ 8.55
29	12002497		Gear, Spur (left Side)   (Replaces: 8171236)			Immediately	$ 22.51
30	8170910		Cover, Unit		Appelez-nous	-
31	WPW10280613		Bracket, Slide (right Side)   (Replaces: 8171235)				$ 92.15
31	WPW10280608		Bracket, Slide (left Side)   (Replaces: 8171234)				$ 92.15
32	WP67006506		Power Cord   (Replaces: 8170925)				$ 27.74
33	8171247		Insulation, Sound		Appelez-nous	-
34	8171232		Bracket, Door (left Side)		Appelez-nous	-
34	8171233		Bracket, Door (right Side)		Appelez-nous	-
35	WP98165		Screw   (Replaces: 4343675)				$ 8.57
36	12002497		Gear, Spur (right Side)   (Replaces: 8171237)			Immediately	$ 22.51
37	8170861		Tube, Drain		Appelez-nous	-
38	67001067		Clip, Drain Tube   (Replaces: 8170862)				$ 9.66
39	M0310343		Plug, Button   (Replaces: 8170878)				$ 11.20
41	WP12566606ED		Hinge, Top   (Replaces: 8170974)			Immediately	$ 47.13
42	67001012		Cover, Hinge (black)   (Replaces: 8170975)				$ 49.71
42	67001014		Cover, Hinge (white)   (Replaces: 8170977)				$ 22.34
42	8170976		Cover, Hinge (biscuit)		Appelez-nous	-
44	71003131		Screw   (Replaces: 8170972)			Immediately	$ 7.08
46	W11177593		Foot Break   (Replaces: 4344298)				$ 12.18
47	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
