01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Freezer Door Parts


04 - Refrigerator Liner Parts


05 - Refrigerator Door Parts


06 - Unit Parts

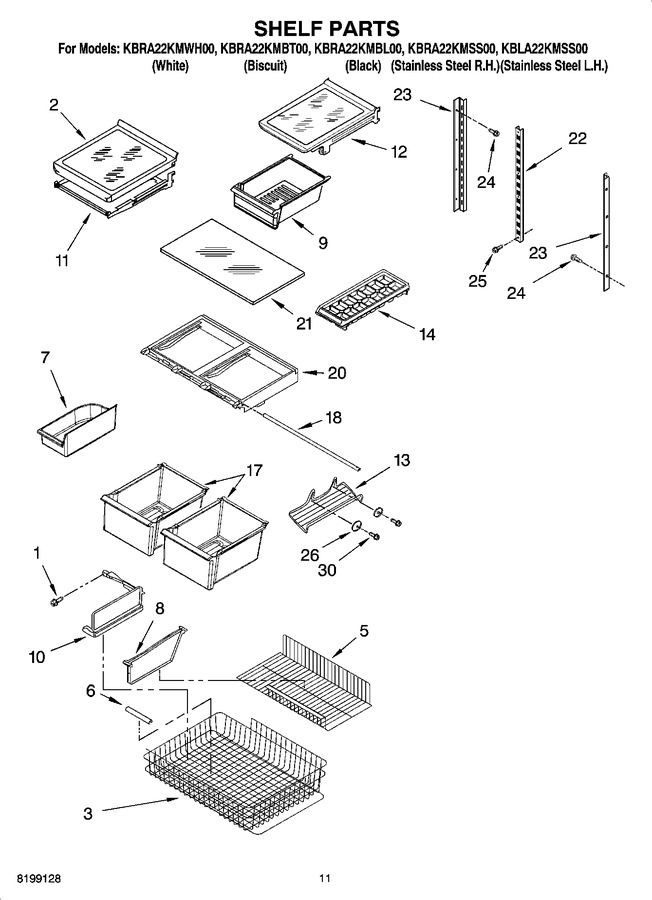

07 - Shelf Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8171073		Screw		Appelez-nous	-
2	4344313		Shelf, Spillguard (3)		Appelez-nous	-
3	8171225		Basket, Lower		Appelez-nous	-
5	8171130		Basket, Upper Fzr.		Appelez-nous	-
6	8170874		Handle, Basket		Appelez-nous	-
7	WP67001255		Pan, Ice   (Replaces: 8170926)				$ 213.23
8	8171227		Divider, Basket (lower)		Appelez-nous	-
9	4344307		Meat Pan		Appelez-nous	-
10	8171226		Divider, Basket (upper)		Appelez-nous	-
11	4344309		Frame Assembly (3)		Appelez-nous	-
12	8170406		Shelf Assembly, (meat Pan)		Appelez-nous	-
13	8170880		Rack, Ice Tray		Appelez-nous	-
14	WP841180A		Tray, Ice Cube   (Replaces: 8170800)			Immediately	$ 47.84
17	4344366		Crisper (2)		Appelez-nous	-
18	WP2172748		Support, Crisper Cvr   (Replaces: 4344255)				$ 102.08
20	8171223		Frame, Crisper		Appelez-nous	-
21	4344367		Glass, Crisper Cover		Appelez-nous	-
22	8170870		Ladder, Center		Appelez-nous	-
23	8170871		Ladder, Side		Appelez-nous	-
24	67006425		Screw   (Replaces: 4344396)			Immediately	$ 7.30
25	8170578		Screw		Appelez-nous	-
26	4344239		Spacer		Appelez-nous	-
30	WP67006908		Screw   (Replaces: 4344238)			Immediately	$ 8.78
	1117510		Torx Key				$ 5.84
	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
	350956		Enamel, Almond (13 Oz. Spray Can)				$ 54.01
	350942		Primer White (13 Oz. Spray Can)				$ 94.14
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	212643		Sealer, Gum (4 Feet)			Immediately	$ 96.42
	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
	876370		Kit, Insulation 2 Pcs. X 3`` X 24`` X 48``)				$ 243.14
	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
	833938		Kit, Terminal Connector				$ 8.47
	4343700		Ice Container Assembly		Appelez-nous	-
	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
	4396418		Amkit02				$ 383.28
	N/A		Field Installable Ice Maker		Appelez-nous	-
	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
	876370		Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
