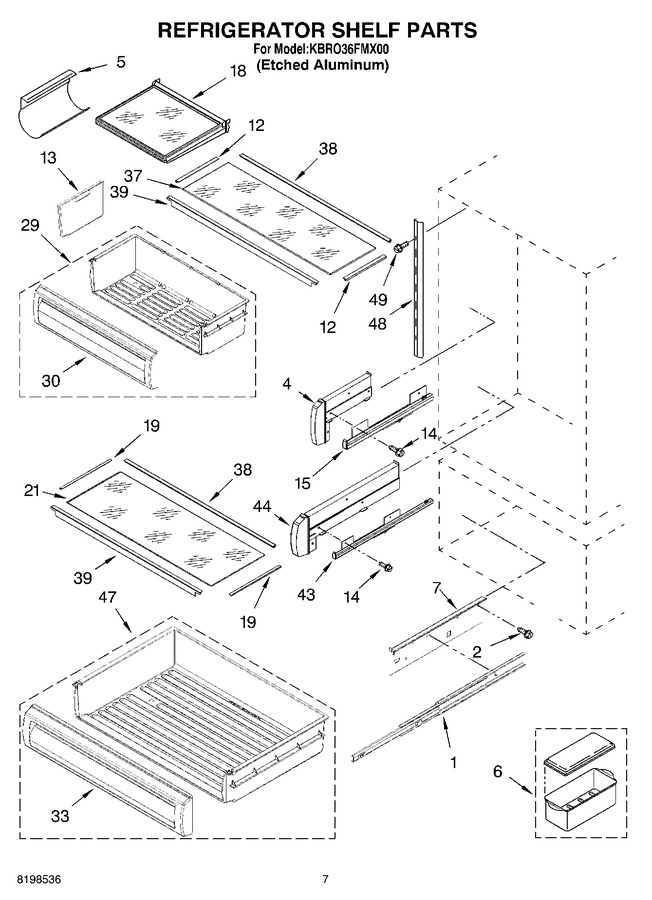

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2257356 | Slide, Freezer Basket (left Side) |
|
- | |||||
| 1 | 2257355 | Slide, Freezer Basket (right Side) |
|
- | |||||
| 2 | 2006475 | Screw, 8-15 X 1.00 |
|
- | |||||
| 4 | 2256443 | Spacer, Crisper (right Side) |
|
- | |||||
| 4 | 2256442 | Spacer, Crisper (left Side) |
|
- | |||||
| 5 | W10777924 | Rack, Wine (Replaces: 2179404) |
|
$ 24.78 | |||||
| 6 | WP2221071A | Egg Bin (Replaces: 2221071) |
|
$ 25.79 | |||||
| 7 | 2257327 | Bracket, Freezer Basket (right Side) |
|
- | |||||
| 7 | 2257326 | Bracket, Freezer Basket (left Side) |
|
- | |||||
| 12 | 2257562 | Trim-glass, Side |
|
- | |||||
| 13 | 2256474 | Divider, Crisper Pan |
|
$ 87.99 | |||||
| 14 | W11830745 | Screw (Replaces: 8533929) |
|
- | |||||
| 15 | 2302953 | Slide, Crisper (right Side) (Replaces: 2256441) |
|
Immediately | $ 318.41 | ||||
| 15 | 2302952 | Slide, Crisper (left Side) (Replaces: 2256440) |
|
Immediately | $ 318.09 | ||||
| 18 | 2258973 | Shelf (4) |
|
- | |||||
| 19 | 2257563 | Trim-glass, Side |
|
- | |||||
| 21 | 2257561 | Glass Shelf, Deli |
|
- | |||||
| 29 | WP2256375 | Cripser Pan Assembly (includes 30) (Replaces: 2256375) |
|
$ 397.25 | |||||
| 30 | 2256374 | Front, Crisper Pan |
|
- | |||||
| 33 | 2257548 | Front, Deli Pan |
|
$ 165.49 | |||||
| 37 | 2257560 | Glass, Crisper Shelf |
|
- | |||||
| 38 | 2257564 | Trim-glass, Rear |
|
- | |||||
| 39 | 2257566 | Trim-glass, Front |
|
- | |||||
| 43 | 2257545 | Slide, Deli (right Side) |
|
- | |||||
| 43 | 2257544 | Slide, Deli (left Side) |
|
- | |||||
| 44 | 2257531 | Spacer, Deli (left Side) |
|
- | |||||
| 44 | 2257532 | Spacer, Deli (right Side) |
|
- | |||||
| 47 | 2257535 | Deli Pan Assembly (includes 33) |
|
- | |||||
| 48 | 2005410 | Ladder, Shelf (4) |
|
- | |||||
| 49 | 2006475 | Screw, |
|
- |
