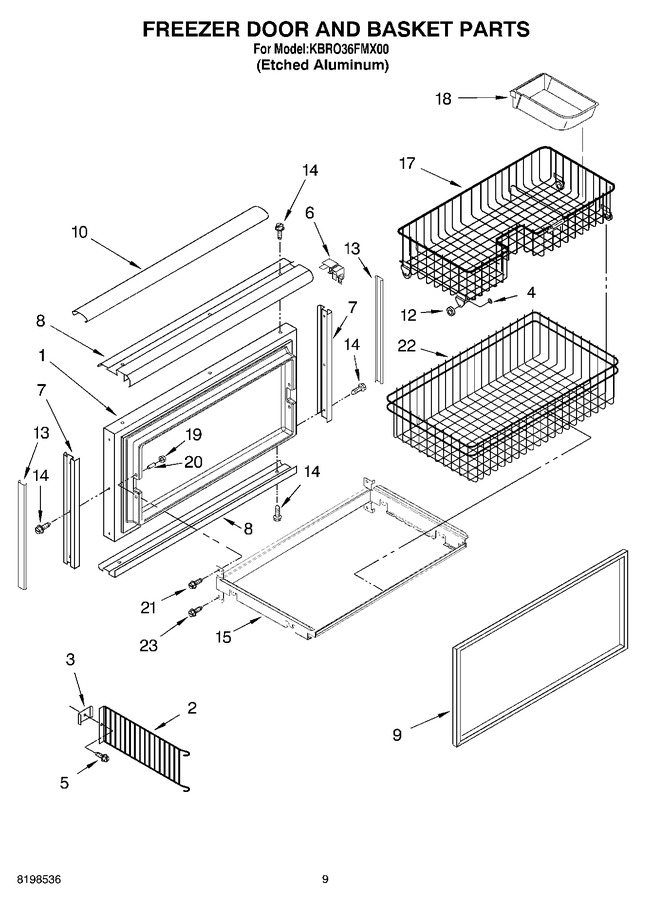

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2300085		Freezer Door Panel (includes Item 9)		Appelez-nous	-
2	2204525		Divider, Basket		Appelez-nous	-
3	2207429		Clamp, Divider		Appelez-nous	-
4	2207415		Nut, Crimp				$ 14.04
5	3190699		Screw		Appelez-nous	-
6	2258903		Trim-door, Corner				$ 204.47
7	2258901X		Trim-door, Side		Appelez-nous	-
8	2258902X		Trim-door, Top & Bottom		Appelez-nous	-
9	2302710		Door Gasket, Magnetic   (Replaces: 2300185)				$ 307.89
10	2259363X		Cover-screw, Top & Bottom		Appelez-nous	-
12	W11214482		Roller   (Replaces: 2204542)				$ 101.03
13	2259364X		Cover-screw, Side		Appelez-nous	-
14	WP8281250		Screw 8-15 X 1/2 (stainless Steel)   (Replaces: 8281250)				$ 11.42
15	2257426		Bracket Assembly, Freezer Basket		Appelez-nous	-
17	2257442		Basket, Upper		Appelez-nous	-
18	2174124		Pan, Ice Cube		Appelez-nous	-
19	WP2207454		Nut, Hex   (Replaces: 2207454)				$ 11.38
20	2207471		Bushing		Appelez-nous	-
21	3400507		Screw		Appelez-nous	-
22	2257331		Basket, Freezer Lower		Appelez-nous	-
23	WP489128		Screw   (Replaces: 488500)				$ 11.40
