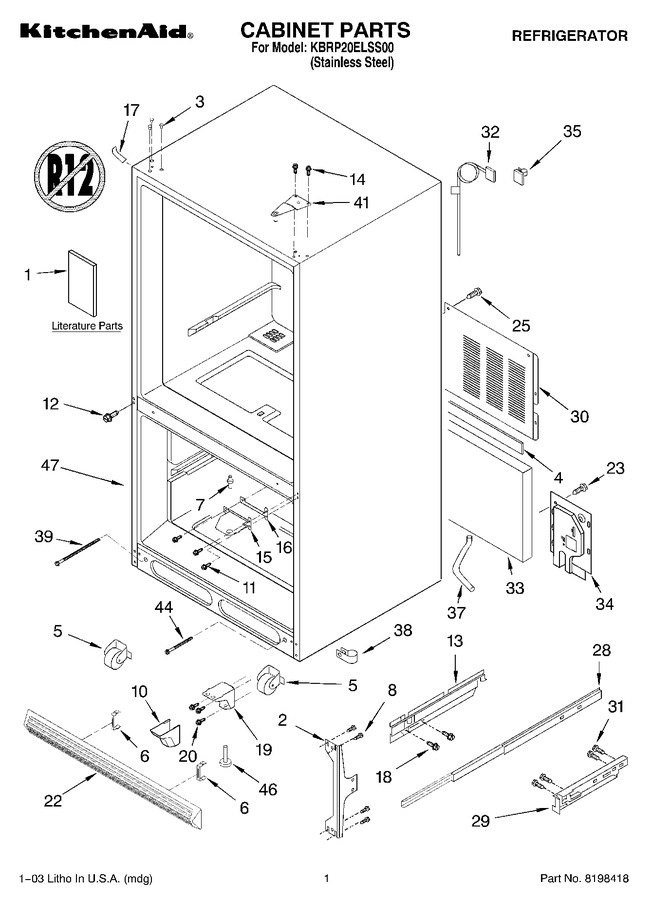

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8171124 | Literature Parts (tech Sheet) |
|
- | |||||
| 1 | LIT8170954 | Literature Parts (use & Care Guide) |
|
- | |||||
| 1 | LIT8171125 | Literature Parts (energy Guide) |
|
- | |||||
| 2 | 8171074 | Stop, Door |
|
- | |||||
| 3 | WP2189009 | Plug, Button (3) (Replaces: 4344208) |
|
$ 7.61 | |||||
| 4 | 8170924 | Gasket |
|
- | |||||
| 5 | 8170886 | Roller Assembly |
|
- | |||||
| 6 | 8170869 | Clip, Grille |
|
- | |||||
| 7 | 12002311 | Pin, Center Hinge (Replaces: 8171013) |
|
$ 8.24 | |||||
| 8 | WP98165 | Screw (Replaces: 4343675) |
|
$ 8.57 | |||||
| 10 | 8171002 | Hinge Cover, Bottom |
|
- | |||||
| 11 | W11573362 | Screw (Replaces: 4344186) |
|
$ 14.72 | |||||
| 12 | WP489349 | Screw (Replaces: 8170373) |
|
Immediately | $ 8.43 | ||||
| 13 | 8171078 | Slide, Door (left) |
|
- | |||||
| 13 | 8171079 | Slide, Door (right) |
|
- | |||||
| 14 | WP489349 | Screw (Replaces: 4344198) |
|
Immediately | $ 8.43 | ||||
| 15 | 12655103ED | Hinge, Center (Replaces: 8170781) |
|
$ 89.26 | |||||
| 16 | WPM0274062 | Shim, Center Hinge (Replaces: 4344188) |
|
Immediately | $ 24.43 | ||||
| 17 | 67003485 | Cover, Corner (Replaces: 8170858) |
|
Immediately | $ 22.14 | ||||
| 18 | 4343861 | Screw |
|
- | |||||
| 19 | 8171066 | Hinge Bottom |
|
- | |||||
| 20 | WP67006715 | Screw (Replaces: 8170455) |
|
$ 7.55 | |||||
| 22 | 8170867 | Grille Assembly (includes Clips) |
|
- | |||||
| 23 | 681390 | Screw (Replaces: 4343694) |
|
$ 13.71 | |||||
| 25 | 4344167 | Screw |
|
- | |||||
| 28 | 8171075 | Slide, Drawer |
|
- | |||||
| 29 | 8171077 | Track, Door (right) |
|
- | |||||
| 29 | 8171076 | Track, Door (left) |
|
- | |||||
| 30 | 8171093 | Cover, Unit |
|
- | |||||
| 31 | WP489474 | Screw (Replaces: 4343690) |
|
Immediately | $ 8.55 | ||||
| 32 | WP67006506 | Power Cord (Replaces: 8170925) |
|
$ 27.74 | |||||
| 33 | 8170899 | Insulation, Sound |
|
- | |||||
| 34 | 8171094 | Cover, Water Valve |
|
- | |||||
| 35 | 8171100 | Clip, Cord |
|
- | |||||
| 37 | 8170861 | Tube, Drain |
|
- | |||||
| 38 | 67001067 | Clip, Drain Tube (Replaces: 8170862) |
|
$ 9.66 | |||||
| 39 | 8170967 | Screw (2) Rear Adjustable |
|
- | |||||
| 41 | 8170788 | Hinge, Top (left) |
|
- | |||||
| 41 | 12626910ED | Hinge, Top (right) (Replaces: 8170764) |
|
$ 124.87 | |||||
| 44 | 71003131 | Screw (2) Front Adjustable (Replaces: 8170972) |
|
Immediately | $ 7.08 | ||||
| 46 | W11177593 | Foot Break (Replaces: 4344298) |
|
$ 12.18 | |||||
| 47 | N/A | Cabinet (not A Serviceable Part) |
|
- |
