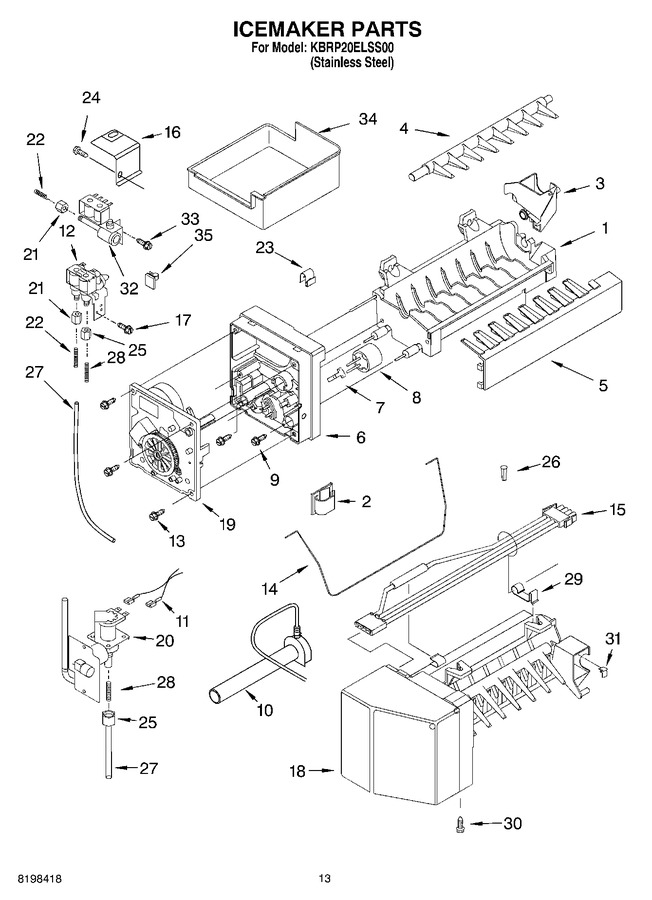

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10190929 | Mold & Heater Assembly (Replaces: 628228) |
|
$ 233.52 | |||||
| 2 | WPM0104106 | Clip (Replaces: 4344265) |
|
$ 8.17 | |||||
| 3 | WP628356 | Bearing & Inlet (Replaces: 8170928) |
|
$ 53.75 | |||||
| 4 | WP627843 | Ejector (Replaces: 8170927) |
|
$ 87.78 | |||||
| 5 | WP2182124 | Ice Stripper (Replaces: 8170929) |
|
$ 90.35 | |||||
| 6 | WP2195914 | Support & Motor Assmbly (Replaces: 8170932) |
|
$ 109.80 | |||||
| 7 | WP2315522 | Retainer, Thermostat (2) (Replaces: 8170930) |
|
$ 11.60 | |||||
| 8 | WP627985 | Thermostat (also Order 542369 Cement Alumilnastic) (Replaces: 627985) |
|
$ 114.64 | |||||
| 9 | WP681249 | Screw (2) (10-32 X 49/64) (Replaces: 8170933) |
|
Immediately | $ 8.25 | ||||
| 10 | W11176463 | Fill Tube (Replaces: 8170414) |
|
Immediately | $ 119.86 | ||||
| 11 | 8170413 | Harness, Water Valve |
|
- | |||||
| 12 | 12002193 | Valve, Secondary Water (Replaces: 8171097) |
|
$ 216.30 | |||||
| 13 | 4344397 | Screw, (3) |
|
- | |||||
| 14 | WP67004028 | Shutoff Arm (Replaces: 8170939) |
|
Immediately | $ 95.92 | ||||
| 15 | WPD7813010 | Harness, Wiring (Replaces: 8170938) |
|
Immediately | $ 73.97 | ||||
| 16 | WP2256087 | Clip, Icemaker (Replaces: 8170931) |
|
$ 97.65 | |||||
| 17 | 4344167 | Screw |
|
- | |||||
| 18 | WPW10289690 | Cover (Replaces: 8170936) |
|
Immediately | $ 8.82 | ||||
| 19 | W10190935 | Module Assembly (Replaces: 628366) |
|
Immediately | $ 136.28 | ||||
| 20 | WP67003753 | Valve, Solenoid (Replaces: 8171101) |
|
Immediately | $ 109.40 | ||||
| 21 | 8171099 | Nut, Sleeve |
|
- | |||||
| 22 | 8171098 | Insert |
|
- | |||||
| 23 | WP628379 | Clip, Thermal Fuse (Replaces: 628379) |
|
$ 11.10 | |||||
| 24 | 67006425 | Screw (Replaces: 4344218) |
|
Immediately | $ 7.30 | ||||
| 25 | WP627018 | Compression Nut (Replaces: 4343704) |
|
$ 11.51 | |||||
| 26 | WPA3223101 | Insert, Tube (Replaces: 4344402) |
|
$ 8.21 | |||||
| 27 | W10823511 | Water Tube (Replaces: 8170934) |
|
Immediately | $ 32.41 | ||||
| 28 | 4343686 | Spring |
|
- | |||||
| 29 | 4343984 | Clip, Wire |
|
- | |||||
| 30 | WP98165 | Screw (Replaces: 4343675) |
|
$ 8.57 | |||||
| 31 | WPM0114003 | Clip (Replaces: 4343702) |
|
$ 11.60 | |||||
| 32 | WP12544002 | Valve, Primary (Replaces: 8171096) |
|
Immediately | $ 273.67 | ||||
| 33 | WP489128 | Screw (Replaces: 8171095) |
|
$ 11.40 | |||||
| 34 | WP67001255 | Pan, Ice (Replaces: 8170926) |
|
$ 213.23 | |||||
| 35 | W10833902 | Clamp, Tube (Replaces: 8170942) |
|
$ 11.54 | |||||
| 100 | 4344549 | Plug, Hole |
|
- | |||||
| 100 | WP488878 | Clamp, Tupe (Replaces: 488878) |
|
$ 12.18 | |||||
| 100 | 4344548 | Coupling |
|
- | |||||
| 100 | N/A | Following Parts Not Illustrated |
|
- | |||||
| 100 | 4396418 | Complete Icemaker Assembly |
|
$ 383.28 | |||||
| 100 | 4344316 | Plug, Button |
|
- |
