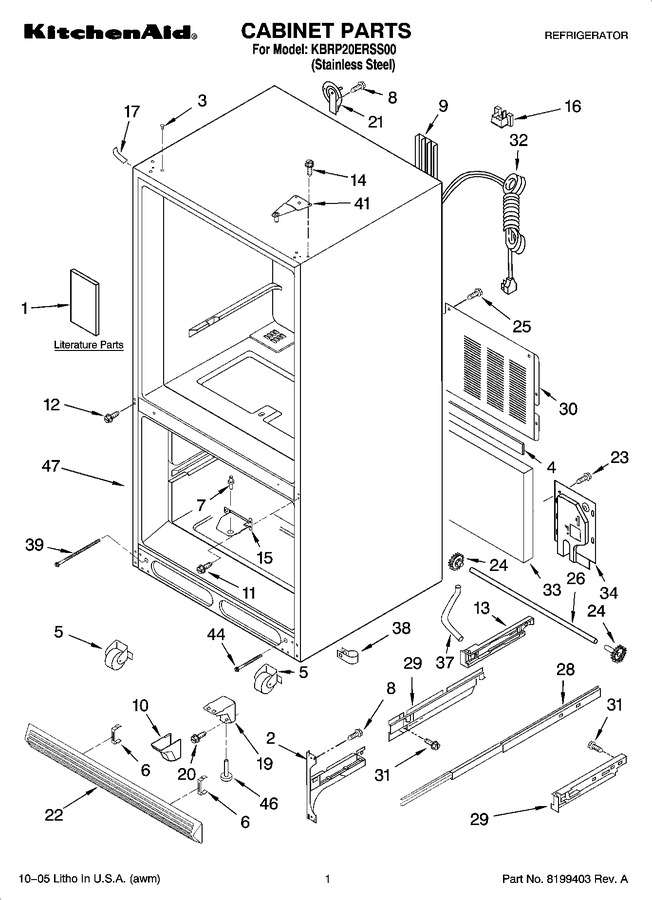

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8208304 | Tech Sheet |
|
- | |||||
| 1 | 8208305 | Owners Manual |
|
- | |||||
| 1 | 8208306 | Guide, Energy |
|
- | |||||
| 2 | WPW10330993 | Bracket, Slide (right Side) (Replaces: 8171271) |
|
$ 166.09 | |||||
| 2 | WPW10330991 | Bracket, Slide (left Side) (Replaces: 8171270) |
|
$ 164.31 | |||||
| 3 | WP2189009 | Plug, Button (3) (Replaces: 4344208) |
|
$ 7.61 | |||||
| 4 | 8170924 | Gasket |
|
- | |||||
| 5 | 8170886 | Roller Assembly |
|
- | |||||
| 6 | 8170869 | Clip, Grille |
|
- | |||||
| 7 | 12002311 | Pin, Center Hinge (Replaces: 8171216) |
|
$ 8.24 | |||||
| 8 | WP98165 | Screw (Replaces: 4343675) |
|
$ 8.57 | |||||
| 9 | 8208152 | Track, Water Line |
|
- | |||||
| 10 | 8171002 | Hinge Cover, Bottom |
|
- | |||||
| 11 | W11573362 | Screw (Replaces: 4344186) |
|
$ 14.72 | |||||
| 12 | WP489349 | Screw (Replaces: 8170373) |
|
Immediately | $ 8.43 | ||||
| 13 | W10251557 | Slide, Door (left) (Replaces: 8171273) |
|
$ 110.04 | |||||
| 13 | W10251557 | Slide, Door (right) (Replaces: 8171274) |
|
$ 110.04 | |||||
| 14 | WP489349 | Screw (Replaces: 4344198) |
|
Immediately | $ 8.43 | ||||
| 15 | 8171146 | Hinge, Center |
|
- | |||||
| 16 | 8208167 | Block, Filter |
|
- | |||||
| 17 | 67003485 | Cover, Corner (Replaces: 8170858) |
|
Immediately | $ 22.14 | ||||
| 19 | 8171066 | Hinge Bottom |
|
- | |||||
| 20 | 8171202 | Screw |
|
- | |||||
| 21 | 12726003 | Cover, Water Line (Replaces: 8208155) |
|
$ 19.19 | |||||
| 22 | 8170867 | Grille Assembly (includes Clips) |
|
- | |||||
| 23 | 681390 | Screw (Replaces: 4343694) |
|
$ 13.71 | |||||
| 24 | 12002497 | Gear, Spur (right Side) (Replaces: 8171236) |
|
Immediately | $ 22.51 | ||||
| 24 | 12002497 | Gear, Spur (left Side) (Replaces: 8171237) |
|
Immediately | $ 22.51 | ||||
| 25 | 4344167 | Screw |
|
- | |||||
| 26 | W11028221 | Shaft, Rack (Replaces: 8171278) |
|
$ 33.24 | |||||
| 28 | 8208266 | Slide, Drawer |
|
- | |||||
| 29 | W10284690 | Track, Door (left) (Replaces: 8208267) |
|
$ 78.55 | |||||
| 29 | 8208268 | Track, Door (right) |
|
- | |||||
| 30 | 8170910 | Cover, Unit |
|
- | |||||
| 31 | WP489474 | Screw (Replaces: 8208217) |
|
Immediately | $ 8.55 | ||||
| 32 | WP67006506 | Power Cord (Replaces: 8170925) |
|
$ 27.74 | |||||
| 33 | 8171247 | Insulation, Sound |
|
- | |||||
| 34 | 8208294 | Cover, Water Valve |
|
- | |||||
| 37 | 8170861 | Tube, Drain |
|
- | |||||
| 38 | 67001067 | Clip, Drain Tube (Replaces: 8170862) |
|
$ 9.66 | |||||
| 39 | 8208347 | Bolt, Adjusting (rear) |
|
- | |||||
| 41 | 8170788 | Hinge, Top (left) |
|
- | |||||
| 41 | 12626910ED | Hinge, Top (right) (Replaces: 8170764) |
|
$ 124.87 | |||||
| 44 | 71003131 | Bolt, Adjusting (front) (Replaces: 8170972) |
|
Immediately | $ 7.08 | ||||
| 46 | W11177593 | Foot Brake (Replaces: 8171272) |
|
$ 12.18 | |||||
| 47 | N/A | Cabinet (not A Serviceable Part) |
|
- |
