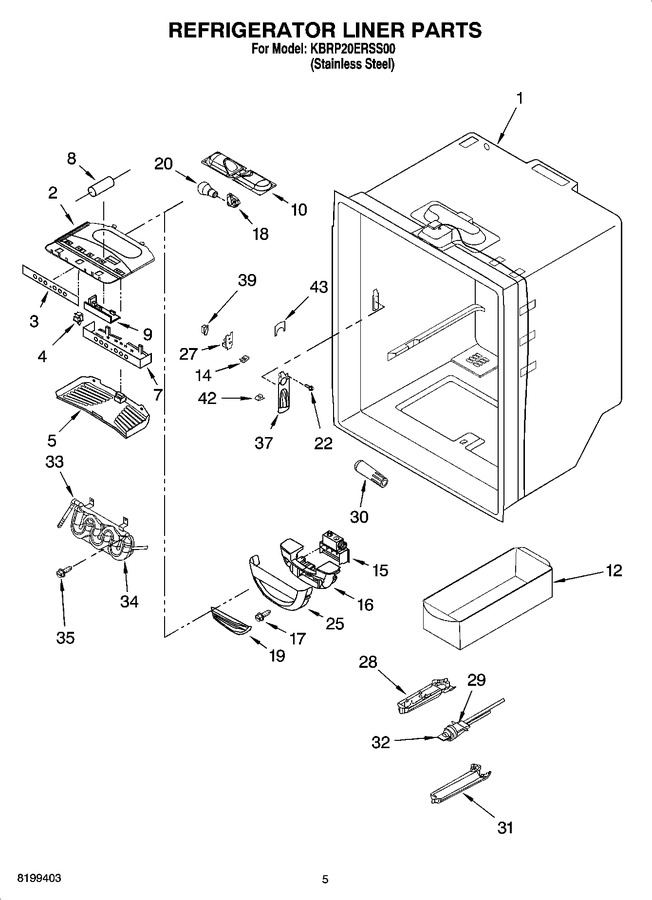

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 8208184 | Housing, Ref. Light |
|
- | |||||
| 3 | 8208271 | Overlay |
|
- | |||||
| 4 | W11384469 | Light Switch (Replaces: 4344571) |
|
Immediately | $ 39.09 | ||||
| 5 | W11284721 | Cover, Ref. Light (Replaces: 8208188) |
|
$ 106.02 | |||||
| 7 | 8208270 | Housing, Control |
|
- | |||||
| 8 | 12002355 | Thermistor (Replaces: 8208278) |
|
Immediately | $ 49.00 | ||||
| 9 | 8208269 | Board, Control |
|
- | |||||
| 10 | 12806601 | Housing, Light (Replaces: 8208189) |
|
$ 110.20 | |||||
| 12 | W10136387A | Egg Bin (Replaces: 8170709) |
|
$ 19.54 | |||||
| 14 | 4343952 | Clip |
|
- | |||||
| 15 | WP67003903 | Control, Damper (Replaces: 8208195) |
|
Immediately | $ 173.62 | ||||
| 16 | 8208194 | Insulation, Damper |
|
- | |||||
| 17 | W11772394 | Screw (Replaces: 8208192) |
|
Immediately | $ 13.22 | ||||
| 18 | W11447232 | Socket, Light (Replaces: 8170839) |
|
Immediately | $ 13.87 | ||||
| 19 | 67003900 | Insert, Damper Cover (Replaces: 8208191) |
|
$ 8.55 | |||||
| 20 | W11679940 | Light Bulb (Replaces: 8208190) |
|
Immediately | $ 11.30 | ||||
| 22 | 67006425 | Screw (Replaces: 4344396) |
|
Immediately | $ 7.30 | ||||
| 25 | WP12806701 | Cover, Control (Replaces: 8208193) |
|
$ 118.65 | |||||
| 27 | 12707303SP | Plate, Switch (Replaces: 8171035) |
|
$ 80.42 | |||||
| 28 | WP67001668 | Plate, Filter Backing (Replaces: 8171030) |
|
Immediately | $ 16.75 | ||||
| 29 | WP67004106 | Housing, Water Filter (Replaces: 8171248) |
|
Immediately | $ 134.32 | ||||
| 30 | EDR4RXD1B | Net, Water Filter (Replaces: 8171249) |
|
Immediately | $ 49.99 | ||||
| 31 | WP12568001 | Cover, Water Filter (Replaces: 8171033) |
|
Immediately | $ 86.76 | ||||
| 32 | W11395888 | Head, Filter Bypass (Replaces: 8171042) |
|
Immediately | $ 50.72 | ||||
| 33 | WP2300868 | Union, Tube (Replaces: 8208165) |
|
Immediately | $ 36.99 | ||||
| 34 | W11361728 | Reservoir, Water (Replaces: 8171250) |
|
Immediately | $ 172.35 | ||||
| 35 | WP98165 | Screw (Replaces: 4343675) |
|
$ 8.57 | |||||
| 37 | 8171034 | Cover, Dispenser Front |
|
- | |||||
| 39 | WP12575501 | Switch, Limit (Replaces: 8171036) |
|
$ 72.35 | |||||
| 42 | 67002816 | Clip, Waterline (Replaces: 8171038) |
|
$ 19.15 | |||||
| 43 | 67005644 | Harness, Control (refrigerator) (includes 8) (Replaces: 8208311) |
|
$ 76.00 | |||||
| 43 | W11519867 | Cover, Dispenser Top (Replaces: 8208276) |
|
Immediately | $ 26.35 | ||||
| 43 | N/A | Following Parts Not Illustrated |
|
- | |||||
| 43 | 8208197 | Harness, Damper Control |
|
- |
