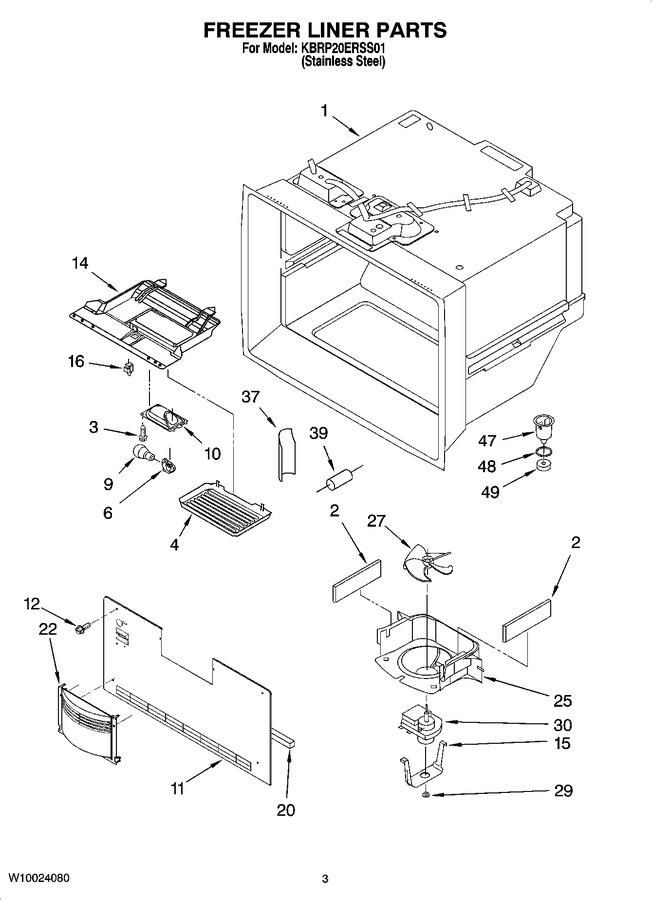

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Seviceable Part) |
|
- | |||||
| 2 | W10856123 | Gasket, Foam (Replaces: 8170897) |
|
Immediately | $ 8.06 | ||||
| 3 | WPW10139210 | Screw (Replaces: 4343670) |
|
$ 8.03 | |||||
| 4 | 8208205 | Cover, Light Frz. |
|
- | |||||
| 6 | W11447232 | Light Socket (Replaces: 8170839) |
|
Immediately | $ 13.87 | ||||
| 9 | W11679940 | Light Bulb (Replaces: 8208190) |
|
Immediately | $ 11.30 | ||||
| 10 | 8170838 | Housing, Frz. Light |
|
- | |||||
| 11 | WPW10231486 | Cover, Evaporator (Replaces: 8208280) |
|
$ 99.13 | |||||
| 12 | 4344167 | Screw |
|
- | |||||
| 14 | 8208206 | Housing, Light |
|
- | |||||
| 15 | 8170895 | Clip, Evap. Motor |
|
- | |||||
| 16 | W11396033 | Switch, Light (Replaces: 8170842) |
|
Immediately | $ 37.30 | ||||
| 20 | W11159728 | Gasket, Bottom (Replaces: 8171083) |
|
Immediately | $ 28.86 | ||||
| 22 | WPW10175909 | Cover, Fan Shroud (Replaces: 8170881) |
|
Immediately | $ 85.72 | ||||
| 25 | 8171153 | Shroud, Evap.fan |
|
- | |||||
| 27 | WP2169142 | Fan, Evaporator (Replaces: 8208312) |
|
Immediately | $ 43.41 | ||||
| 29 | WP67002780 | Grommet (2) (Replaces: 8171086) |
|
$ 8.20 | |||||
| 30 | WPW10128551 | Motor, Evaporator (Replaces: 8170894) |
|
Immediately | $ 78.75 | ||||
| 37 | WP67003924 | Cover, Thermistor (Replaces: 8208202) |
|
$ 8.21 | |||||
| 39 | 12002355 | Thermistor (Replaces: 8208278) |
|
Immediately | $ 49.00 | ||||
| 47 | W10815413 | Funnel-drain (includes 48 & 49, Seal & Gasket) (Replaces: 4344385) |
|
Immediately | $ 51.50 | ||||
| 48 | WPM0500703 | Seal (Replaces: 4344311) |
|
$ 11.47 | |||||
| 49 | 8208199 | Harness, Lights (freezer) |
|
- | |||||
| 49 | WPB8381501 | Gasket (Replaces: 4344310) |
|
$ 7.78 | |||||
| 49 | N/A | Following Parts Not Illustrated |
|
- |
