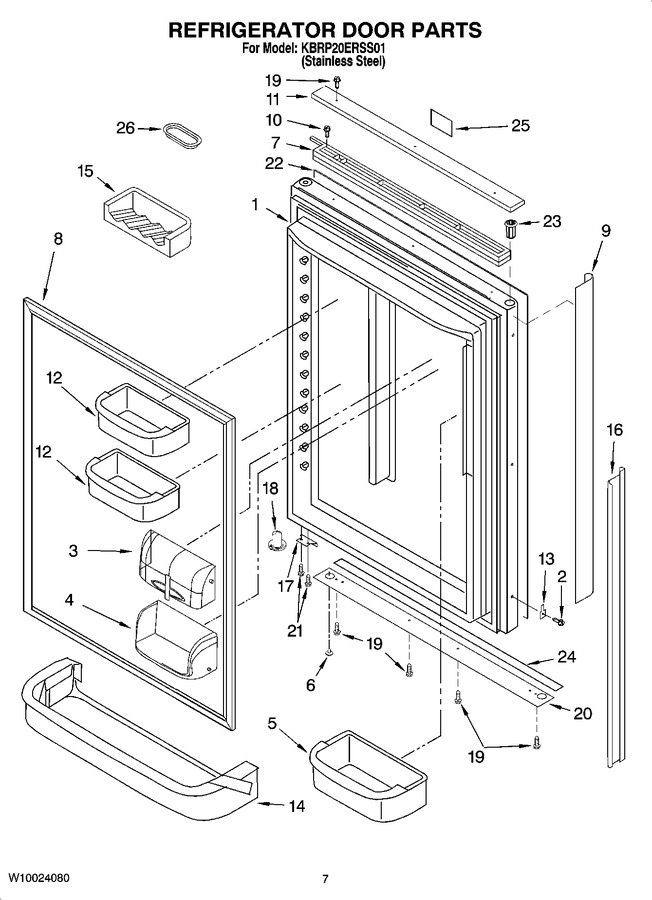

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8170814		Refrigerator Door		Appelez-nous	-
2	8170431		Screw		Appelez-nous	-
3	WP12744905		Door, Compartment (includes 4)   (Replaces: 8171204)				$ 113.99
4	WP67001279		Tray, Dairy   (Replaces: 8170793)			Immediately	$ 88.01
5	8208310		Shelf Bin (medium)		Appelez-nous	-
6	67004838		Plug, Vent   (Replaces: 8208213)				$ 11.21
7	8171104		Trim, Door Extension		Appelez-nous	-
8	W10849442		Door Gasket, Magnetic   (Replaces: 8171192)				$ 361.55
9	8171106		Door Handle		Appelez-nous	-
10	WP489474		Screw   (Replaces: 4343690)			Immediately	$ 8.55
11	8171105		Trim, Door (top)		Appelez-nous	-
12	8208309		Shelf Bin (large)		Appelez-nous	-
13	67002451		Clip, Handle   (Replaces: 8171107)				$ 8.86
14	8171012		Trim, Door Shelf		Appelez-nous	-
15	WP67005626		Caddy, Can   (Replaces: 8208274)				$ 81.49
16	8171109		Trim, Door (left Side)		Appelez-nous	-
16	8171108		Trim, Door (right Side)		Appelez-nous	-
17	W11708403		Stop, Door   (Replaces: 8171214)			Immediately	$ 14.75
18	WP67003639		Closer, Door   (Replaces: 8171246)				$ 90.32
19	4343788		Screw		Appelez-nous	-
20	8171110		Trim, Door (bottom)		Appelez-nous	-
21	WP98165		Screw, Door Stop   (Replaces: 8208166)				$ 8.57
22	8208307		Panel, Door Stainless Steel		Appelez-nous	-
23	67004978		Bushing   (Replaces: 8171213)				$ 22.10
24	8208176		Spacer, Bottom		Appelez-nous	-
25	8170732		Nameplate		Appelez-nous	-
26	4344296		Dish, Butter		Appelez-nous	-
