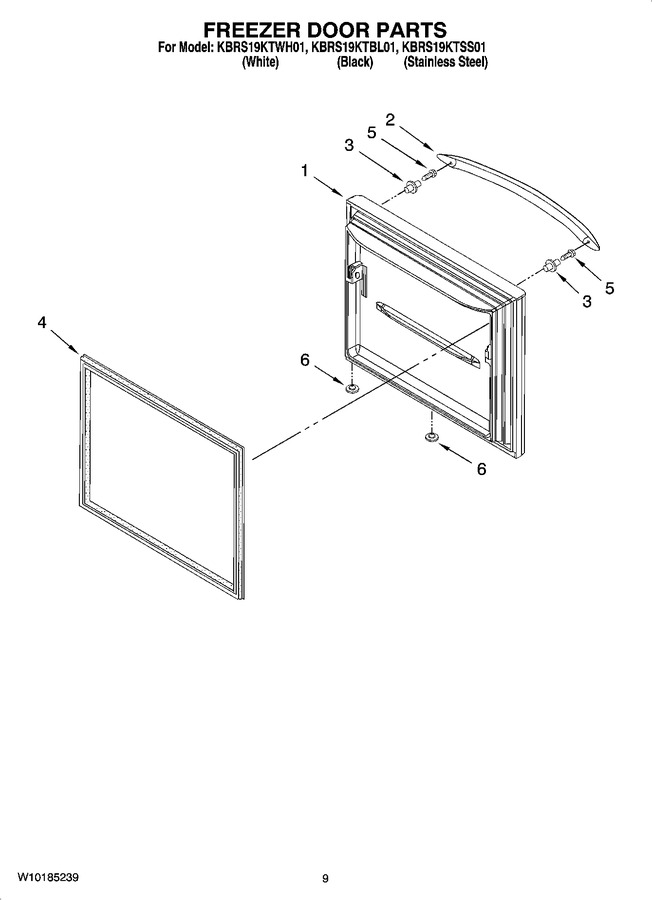

SELECT A DIAGRAM
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10185245 | Freezer Door (w/ Insulation) (white) |
|
- | |||||
| 1 | W10185246 | Freezer Door (w/ Insulation) (black) |
|
- | |||||
| 1 | W10174587 | Freezer Door (w/ Insulation) (stainless Steel) |
|
- | |||||
| 2 | WPW10314515 | Handle, Door (white) (Replaces: W10119642) |
|
$ 238.49 | |||||
| 2 | W10119643 | Handle, Door (black) |
|
- | |||||
| 2 | WPW10314517K | Handle, Door (stainless Steel) (Replaces: W10119644) |
|
$ 243.37 | |||||
| 3 | WP67006113 | Mount, Handle (Replaces: 67006113) |
|
Immediately | $ 12.56 | ||||
| 4 | WPW10443311 | Gasket, Door (white) (Replaces: W10130150) |
|
Immediately | $ 255.76 | ||||
| 4 | WPW10436247 | Gasket, Door (black) (Replaces: 12683816B) |
|
Immediately | $ 355.53 | ||||
| 5 | WP3387230 | Screw (Replaces: 67002935) |
|
Immediately | $ 8.54 | ||||
| 6 | 10712401 | Plug, Vent (2) (white) |
|
$ 7.79 | |||||
| 6 | 67004838 | Plug, Vent (2) (black) |
|
$ 11.21 |
