Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 67001302 Ladder, Side Appelez-nous -
2 67006425 Screw (6)   (Replaces: 67006400) In-Stock Immediately $ 7.30

3 67001073 Ladder, Center Special Order $ 56.89

4 W10709795 Screw (2)   (Replaces: 67006360) Special Order $ 13.79

5 WP67001716 Hook, Ladder   (Replaces: 67001716) In-Stock Immediately $ 11.14

6 67001149 Shelf, Sta (2) Special Order $ 92.44

7 WP67006877 Glass, Crisper (2)   (Replaces: 67006877) In-Stock Immediately $ 209.75

8 WPW10671240 Frame, Crisper (2)   (Replaces: 67001153) In-Stock Immediately $ 138.10

9 WP67001719 Track, Deli   (Replaces: 67001719) In-Stock Immediately $ 8.99

10 WP67005864 Slide, Humidity Control   (Replaces: 67005864) In-Stock Immediately $ 8.20

11 67006425 Screw (3)   (Replaces: 67006400) In-Stock Immediately $ 7.30

12 WPW10671238 Rail, Center Crisper   (Replaces: 67001057) In-Stock Immediately $ 118.46

13 WP12227302WD Brace, (2) Crisper Frame   (Replaces: 67001155) Special Order $ 111.60

14 WPW10231481 Trim, Crisper   (Replaces: 67003927) Special Order $ 117.42

15 W10833530 Pan, Crisper (2)   (Replaces: 67006827) Special Order $ 158.61

16 67004985 Basket, Freezer (upper) Special Order $ 99.88

17 12646501 Rack, Ice Appelez-nous -
18 67004127 Divider, Upper Basket Special Order $ 10.10

19 67006608 Screw Appelez-nous -
20 W10503182 Basket, Freezer (lower)   (Replaces: 67006023) Special Order $ 241.97

21 67006644 Divider, Lower Basket Appelez-nous -
23 WP67001721 Support, Lh   (Replaces: 67001721) In-Stock Immediately $ 8.70

25 10972101 Spacer, Rack Special Order $ 7.82

26 W10656984 Trim, Pantry   (Replaces: 67007045) Special Order $ 84.70

27 67001151 Shelf, Glide (2) Special Order $ 89.93

28 WP67006908 Screw (2)   (Replaces: 67006908) In-Stock Immediately $ 8.78

29 WP67001722 Support, Rh   (Replaces: 67001722) In-Stock Immediately $ 8.93

30 W10328331 Pan, Pantry   (Replaces: 67007044) In-Stock Immediately $ 158.69


    View Diagram in Separate Window     Print Icon   Print Part List

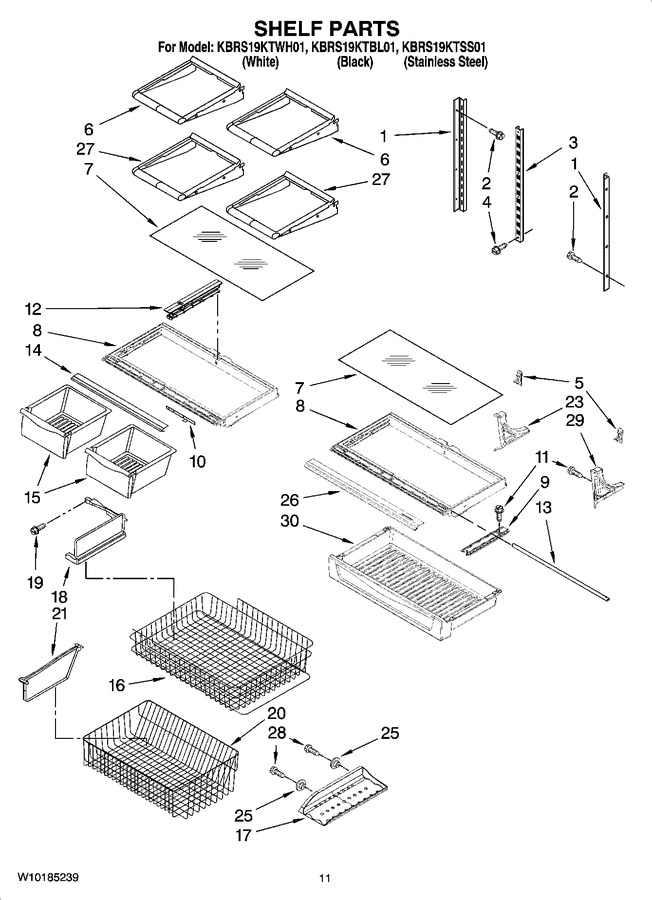

Diagram for KBRS19KTBL01
