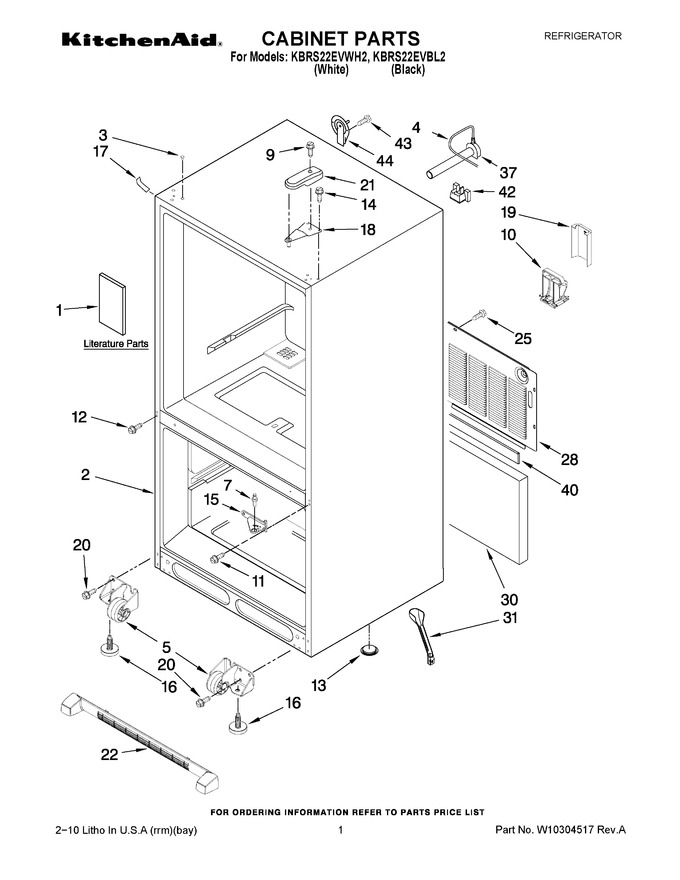

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10137649 | Use & Care Guide |
|
- | |||||
| 1 | W10212714 | Energy Guide |
|
- | |||||
| 1 | W10279330 | Tech Sheet |
|
- | |||||
| 2 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 3 | 67001014 | Plug, Button (3) (white) (Replaces: 12477601W) |
|
$ 21.28 | |||||
| 3 | WP12246608 | Plug, Button (3) (black) (Replaces: 12246608) |
|
Immediately | $ 7.76 | ||||
| 4 | W11120581 | Tube, Plastic (Replaces: B5705333SP) |
|
$ 118.98 | |||||
| 5 | W11820445 | Roller Foot Assembly (right) (Replaces: W10275849) |
|
Immediately | $ 35.57 | ||||
| 5 | W11820444 | Roller Foot Assembly (left) (Replaces: W10275850) |
|
Immediately | $ 35.57 | ||||
| 7 | WP67006642 | Pin, Center Hinge (Replaces: 10351006) |
|
$ 7.93 | |||||
| 9 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.00 | |||||
| 10 | 12831101 | Sweep, Dual Tube |
|
$ 12.41 | |||||
| 11 | W11573362 | Screw (Replaces: 12992201) |
|
$ 14.02 | |||||
| 12 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.00 | |||||
| 13 | A3076901 | Plug, Button |
|
$ 5.70 | |||||
| 14 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 7.88 | ||||
| 15 | WP12607104ED | Hinge, Center (black) (Replaces: 12607103ED) |
|
$ 152.73 | |||||
| 15 | W11689473 | Hinge, Center (white) (Replaces: 12607103WD) |
|
$ 66.47 | |||||
| 16 | WPW10141622 | Foot Brake (2) (Replaces: W10141622) |
|
Immediately | $ 7.85 | ||||
| 17 | 12587703W | Cover, Corner (white) |
|
$ 21.81 | |||||
| 17 | 67003485 | Cover, Corner (black) (Replaces: 12587703B) |
|
Immediately | $ 21.09 | ||||
| 18 | WP12566606ED | Hinge, Top Left (Replaces: 12566606ED) |
|
Immediately | $ 44.89 | ||||
| 19 | W10208593 | Guard, Dual Water Valve |
|
$ 14.96 | |||||
| 20 | 67006564 | Screw (8) (Replaces: 12991302) |
|
Immediately | $ 7.69 | ||||
| 21 | 67001014 | Cover Hinge (white) (Replaces: 12477601W) |
|
$ 21.28 | |||||
| 21 | 67001012 | Cover, Hinge (black) (Replaces: 12477601B) |
|
$ 47.34 | |||||
| 22 | WPW10534162 | Grille Assembly (black) (Replaces: W10236196) |
|
$ 141.10 | |||||
| 22 | WPW10534161 | Grille Assembly (white) (Replaces: W10236195) |
|
$ 140.09 | |||||
| 25 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.95 | ||||
| 28 | W10210980 | Cover, Unit |
|
$ 193.85 | |||||
| 30 | 12820505 | Insulation, Sound |
|
$ 71.70 | |||||
| 31 | W10619951 | Tube, Drain (Replaces: W10210988) |
|
Immediately | $ 42.39 | ||||
| 37 | W11176463 | Elbow, Fill Tube (Replaces: 10463203SP) |
|
Immediately | $ 114.15 | ||||
| 40 | B5759655 | Gasket |
|
$ 12.41 | |||||
| 42 | 12777701 | Block, Filter |
|
$ 7.17 | |||||
| 43 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.00 | |||||
| 44 | 12726003 | Cover, Water Line |
|
$ 18.28 |
