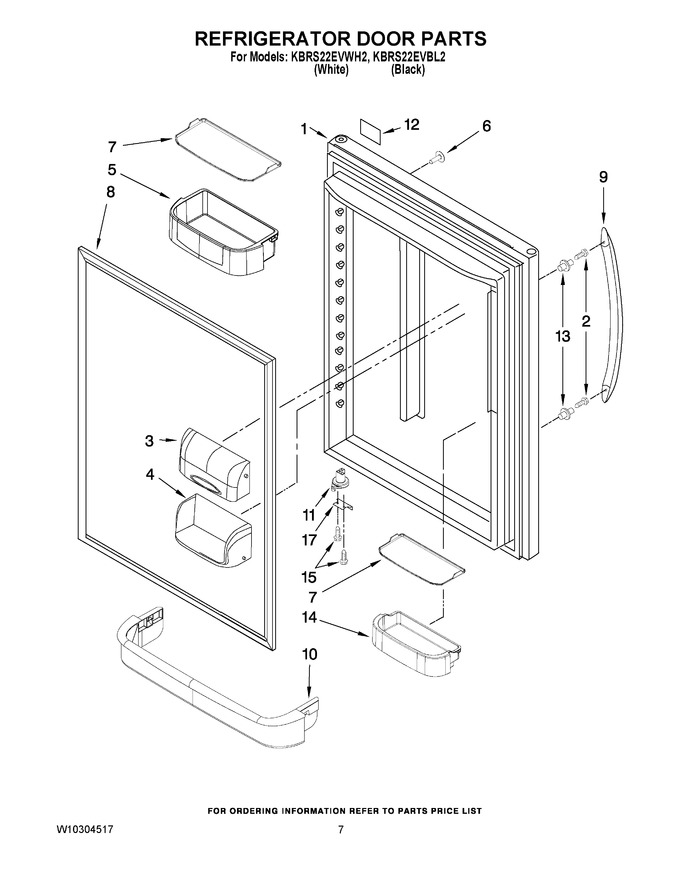

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12658572WQ | Door, Refrigerator (white) |
|
$ 718.52 | |||||
| 1 | 12658572BQ | Door, Refrigerator (black) |
|
- | |||||
| 2 | WP3387230 | Screw (Replaces: 3196181) |
|
Immediately | $ 8.54 | ||||
| 3 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 78.73 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 83.82 | ||||
| 5 | WPW10371195 | Bucket, Medium (3) (Replaces: 12849114SP) |
|
Immediately | $ 83.21 | ||||
| 6 | WP67001130 | Plug, Handle Hole (black) (Replaces: 12246607) |
|
Immediately | $ 5.98 | ||||
| 7 | WPW10450021 | Gripper, Medium (Replaces: 12567321SP) |
|
Immediately | $ 96.12 | ||||
| 8 | WPW10436248 | Gasket, Door (black) (Replaces: W10164035) |
|
$ 286.97 | |||||
| 8 | W10443313 | Gasket, Door (white) (Replaces: W10164034) |
|
$ 343.82 | |||||
| 9 | W10119643N | Handle, Door (black) |
|
- | |||||
| 9 | WPW10314515 | Handle, Door (white) (Replaces: W10119642N) |
|
$ 227.13 | |||||
| 10 | 12690502 | Retainer, Door |
|
$ 45.03 | |||||
| 11 | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
$ 86.02 | |||||
| 11 | WP67003638 | Closure, Door (white) (Replaces: 12028505W) |
|
Immediately | $ 7.76 | ||||
| 12 | WPW10243393 | Nameplate (white) (Replaces: W10046670) |
|
$ 66.65 | |||||
| 12 | W10046610 | Nameplate (apollo Grey) |
|
$ 33.40 | |||||
| 12 | WPW10243392 | Nameplate (black) (Replaces: W10046640) |
|
$ 70.19 | |||||
| 13 | 12691403 | Mount, Handle |
|
- | |||||
| 14 | 12643911SP | Bucket, Short |
|
$ 43.60 | |||||
| 15 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.00 | |||||
| 17 | W11708403 | Stop, Door (black) (Replaces: 10447112) |
|
Immediately | $ 14.05 | ||||
| 17 | 12968202W | Stop, Door (white) (Replaces: 10447111) |
|
$ 65.99 |
