SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Freezer Liner


03 - Freezer Door

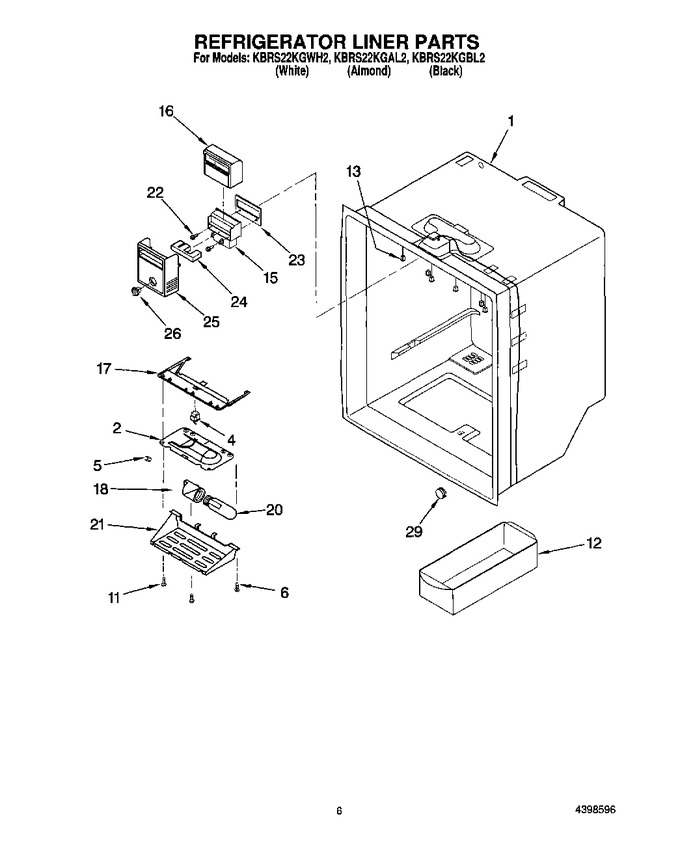

04 - Refrigerator Liner


05 - Refrigerator Door


06 - Unit


07 - Shelf, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	8170381		Housing, Ref. Light		Appelez-nous	-
4	W11384469		Switch, Light   (Replaces: 4344571)			Immediately	$ 37.23
5	4343682		Clip, Ground		Appelez-nous	-
6	4344167		Screw		Appelez-nous	-
11	67006425		Screw   (Replaces: 4344396)			Immediately	$ 6.95
12	W10136387A		Bin, Egg   (Replaces: 4344169)				$ 18.61
13	4344321		Grommet		Appelez-nous	-
15	8170382		Control, Damper		Appelez-nous	-
16	4344184		Insulation, Damper		Appelez-nous	-
17	8170383		Shield, Light		Appelez-nous	-
18	8170384		Socket, Light		Appelez-nous	-
20	W10887190		Light Bulb   (Replaces: 8170385)			Immediately	$ 18.31
21	8170386		Light Lens, Top		Appelez-nous	-
22	WP98165		Screw   (Replaces: 4343675)				$ 8.00
23	4343681		Gasket, Damper		Appelez-nous	-
24	4343650		Insert		Appelez-nous	-
25	8170371		Cover, Control		Appelez-nous	-
26	4344180		Knob, Control		Appelez-nous	-
29	4344241		Plug, Button		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
