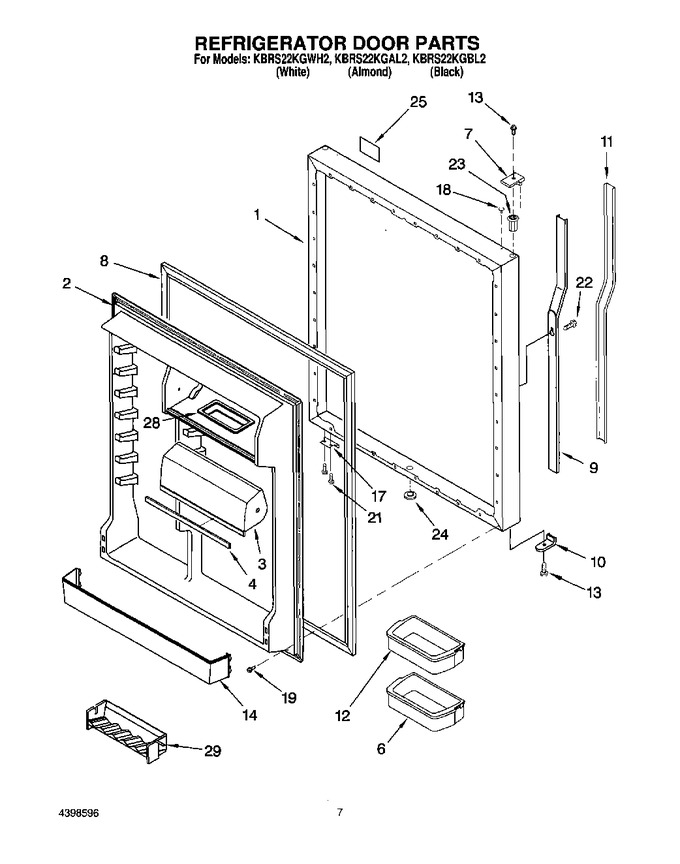

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4344584		Refrigerator Door Panel (includes Insulation) (white)		Appelez-nous	-
1	4344585		Refrigerator Door Panel (includes Insulation) (almond)		Appelez-nous	-
1	4344586		Refrigerator Door Panel (includes Insulation) (black)		Appelez-nous	-
2	4344371		Interior Panel		Appelez-nous	-
3	4344369		Door, Compartment		Appelez-nous	-
4	4344370		Trim, Comp. Door		Appelez-nous	-
6	4344532		Shelf Bin (1)		Appelez-nous	-
7	4344591		End Cap (black)		Appelez-nous	-
7	4344590		End Cap (almond)		Appelez-nous	-
7	4344589		End Cap (white)		Appelez-nous	-
8	8170394		Door Gasket, Magnetic (black)		Appelez-nous	-
8	WP12550115Q		Door Gasket, Magnetic (mist Beige)   (Replaces: 8170395)				$ 176.41
9	2188182N		Retainer, Insert (almond)		Appelez-nous	-
9	2188182B		Retainer, Insert (black)		Appelez-nous	-
9	2188182W		Retainer, Insert (white)		Appelez-nous	-
10	4344592		End Cap (white)		Appelez-nous	-
10	4344594		End Cap (black)		Appelez-nous	-
10	4344593		End Cap (almond)		Appelez-nous	-
11	2188141		Insert, Handle (black)		Appelez-nous	-
11	2188140		Insert, Handle (almond)		Appelez-nous	-
11	2188139		Insert, Handle (white)		Appelez-nous	-
12	4344365		Shelf Bin (3)		Appelez-nous	-
13	4344588		Screw		Appelez-nous	-
14	4344373		Trivet, Door		Appelez-nous	-
17	12968202W		Stop, Door (white)   (Replaces: 4344463)				$ 65.99
17	W11708403		Stop, Door (black)   (Replaces: 4344563)			Immediately	$ 14.05
17	67003781		Stop, Door (almond)   (Replaces: 4344456)				$ 79.16
18	WP67001130		Plug, Button (white)   (Replaces: 4344535)			Immediately	$ 5.98
18	4344534		Plug, Button (almond)		Appelez-nous	-
18	WP12246608		Plug, Button (black)   (Replaces: 4344533)			Immediately	$ 7.76
19	4343811		Screw		Appelez-nous	-
21	WPW10348409		Screw   (Replaces: 4344333)			Immediately	$ 7.76
22	8170313		Screw		Appelez-nous	-
23	4344362		Bushing (white)		Appelez-nous	-
23	4344361		Bushing (black)		Appelez-nous	-
24	4344364		Plug, Button (black)		Appelez-nous	-
24	4344227		Plug, Button (white)		Appelez-nous	-
24	4344363		Plug, Button (almond)		Appelez-nous	-
25	4344557		Nameplate (black)		Appelez-nous	-
25	4344555		Nameplate (white)		Appelez-nous	-
25	4344556		Nameplate (almond)		Appelez-nous	-
28	4344296		Butter Dish		Appelez-nous	-
29	4344374		Holder, Beverage		Appelez-nous	-
