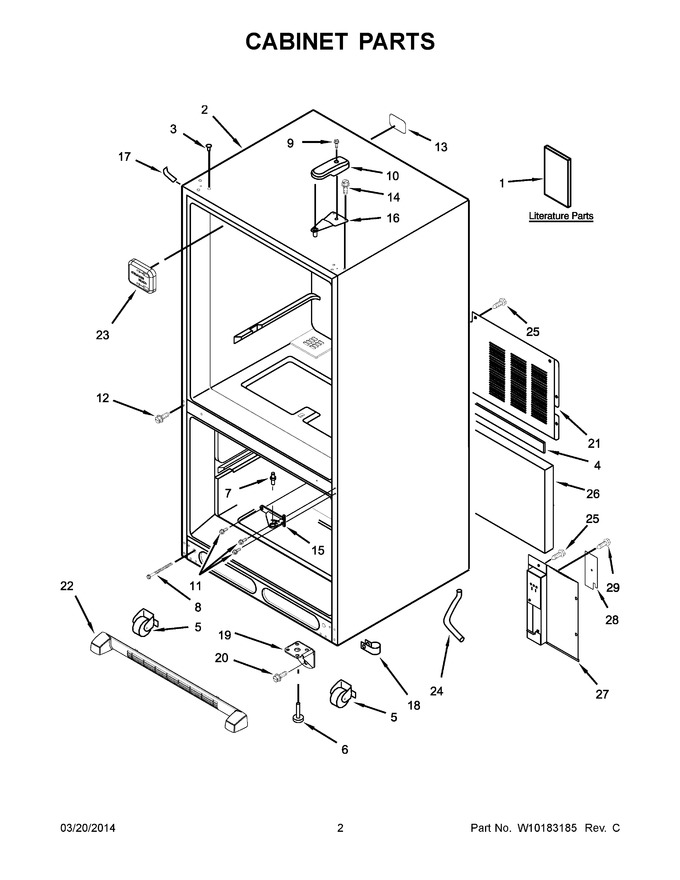

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10137649 | Use & Care Guide |
|
- | |||||
| 1 | W10123818 | Energy Tag |
|
- | |||||
| 1 | W10168777 | Tech Sheet |
|
- | |||||
| 2 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 3 | WP12246608 | Plug, Button (black) (Replaces: M0310731) |
|
Immediately | $ 7.76 | ||||
| 3 | WP67001130 | Plug, Button (white) (Replaces: M0310729) |
|
Immediately | $ 5.98 | ||||
| 4 | B5759649 | Gasket |
|
- | |||||
| 5 | 67006118 | Assembly, Roller Bracket |
|
- | |||||
| 6 | W11177593 | Brake, Foot (Replaces: 67003868) |
|
$ 11.60 | |||||
| 7 | WP67006642 | Pin, Center Hinge (Replaces: 67006642) |
|
$ 7.93 | |||||
| 8 | 71003131 | Bolt, Roller Adjusting (Replaces: 67006611) |
|
Immediately | $ 6.74 | ||||
| 9 | WP8281196 | Screw (Replaces: 67006521) |
|
Immediately | $ 7.19 | ||||
| 10 | 67001014 | Cover, Hinge (white) |
|
$ 21.28 | |||||
| 10 | 67001012 | Cover, Hinge (black) |
|
$ 47.34 | |||||
| 11 | W11573362 | Screw (Replaces: 67006380) |
|
$ 14.02 | |||||
| 12 | WP98165 | Screw (Replaces: 67006473) |
|
$ 8.00 | |||||
| 13 | W11685757 | Label, Fill Tube (Replaces: 67005064) |
|
$ 7.06 | |||||
| 14 | WP489349 | Screw (Replaces: 67006303) |
|
Immediately | $ 7.88 | ||||
| 15 | W11689473 | Hinge, Center (white) (Replaces: 67006960) |
|
$ 66.47 | |||||
| 15 | WP12607104ED | Hinge, Center (black) (Replaces: 67007043) |
|
$ 152.73 | |||||
| 16 | WP12566606ED | Hinge, Top (right Hand) (Replaces: 12566604ED) |
|
Immediately | $ 44.89 | ||||
| 17 | 67003485 | Cover, Corner (black) |
|
Immediately | $ 21.09 | ||||
| 17 | 67003484 | Cover, Corner (white) |
|
$ 20.40 | |||||
| 18 | 67001067 | Clip, Drain Tube |
|
$ 9.20 | |||||
| 19 | 12906303WD | Bracket, Foot (Replaces: 67007174) |
|
$ 84.36 | |||||
| 20 | 67006564 | Screw |
|
Immediately | $ 7.69 | ||||
| 21 | 12575101ED | Cover, Machine Compartment |
|
- | |||||
| 22 | WPW10534161 | Grille Assembly (includes Clips) (white) (Replaces: 67007004) |
|
$ 140.09 | |||||
| 22 | WPW10534162 | Grille Assembly (includes Clips) (black) (Replaces: 67006954) |
|
$ 141.10 | |||||
| 23 | WP67001098 | Cover, Fill Tube (Replaces: 67001098) |
|
$ 8.03 | |||||
| 24 | W10164397 | Tube, Drain |
|
$ 14.79 | |||||
| 25 | 67006425 | Screw |
|
Immediately | $ 6.95 | ||||
| 26 | 67003796 | Fiber, Acoustic |
|
$ 19.27 | |||||
| 27 | 67001097 | Cover, Water Valve |
|
- | |||||
| 28 | 12479901 | Plate, Cover |
|
- | |||||
| 29 | WP489128 | Screw (Replaces: 67006662) |
|
$ 10.88 |
