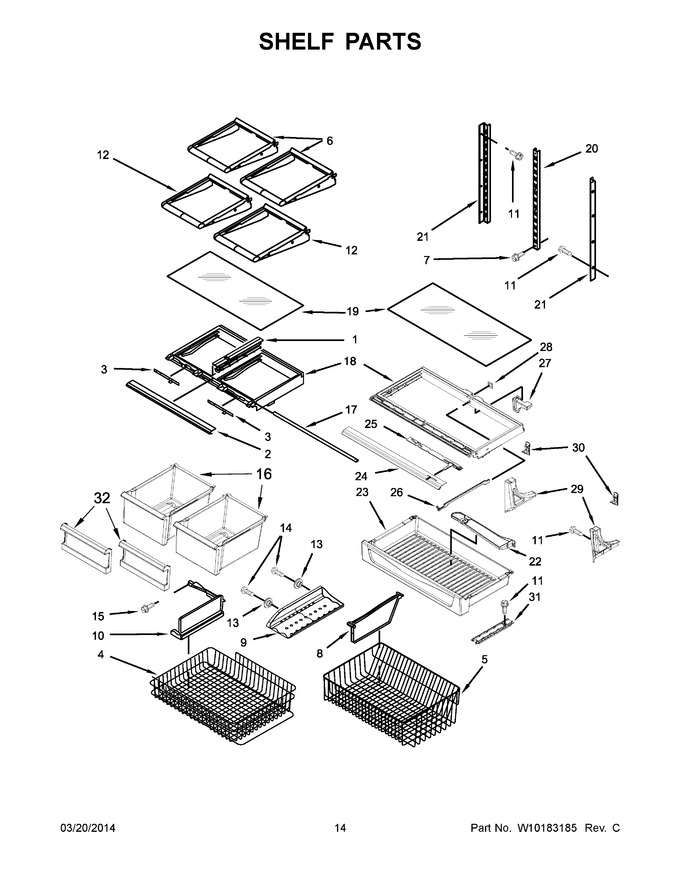

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10671238 | Rail, Center Crisper (Replaces: 67001057) |
|
Immediately | $ 118.46 | ||||
| 2 | W10231483 | Trim, Crisper (Replaces: 67005732) |
|
$ 117.01 | |||||
| 3 | WP67005864 | Slide, Humidity Control (Replaces: 67005864) |
|
Immediately | $ 8.20 | ||||
| 4 | 67004986 | Basket, Freezer (upper) |
|
$ 234.59 | |||||
| 5 | 67006024 | Basket, Freezer (lower) |
|
- | |||||
| 6 | 67005731 | Shelf, Glide Out |
|
- | |||||
| 7 | W10709795 | Screw (Replaces: 67006360) |
|
$ 13.79 | |||||
| 8 | 67006644 | Divider, Basket (lower) |
|
- | |||||
| 9 | 12646501 | Rack, Ice Tray |
|
- | |||||
| 10 | 67004127 | Divider, Basket (upper) |
|
$ 10.10 | |||||
| 11 | 67006425 | Screw (Replaces: 67006400) |
|
Immediately | $ 7.30 | ||||
| 12 | 67005730 | Shelf, Stationary |
|
- | |||||
| 13 | 10972101 | Spacer, Ice Rack |
|
$ 7.82 | |||||
| 14 | WP67006908 | Screw (Replaces: 67006908) |
|
Immediately | $ 8.78 | ||||
| 15 | 67006608 | Screw |
|
- | |||||
| 16 | WP67002633 | Pan, Crisper (Replaces: 67002633) |
|
Immediately | $ 149.12 | ||||
| 17 | WP12227303WD | Brace, Crisper Cover (Replaces: 67001059) |
|
$ 111.25 | |||||
| 18 | WPW10568041 | Frame, Crisper (Replaces: 67001056) |
|
Immediately | $ 137.23 | ||||
| 19 | WP67006878 | Glass, Crisper (Replaces: 67006878) |
|
Immediately | $ 185.19 | ||||
| 20 | 67001073 | Ladder, Center |
|
$ 56.89 | |||||
| 21 | 67001317 | Ladder, Side |
|
$ 39.13 | |||||
| 22 | 67001923 | Divider, Pantry |
|
$ 21.04 | |||||
| 23 | 67005928 | Pan, Pantry |
|
- | |||||
| 24 | W10656985 | Trim, Pantry (Replaces: 67001913) |
|
$ 137.68 | |||||
| 25 | 67002002 | Slide, Pantry |
|
Immediately | $ 16.04 | ||||
| 26 | 67002003 | Bar, Pantry |
|
$ 47.06 | |||||
| 27 | WP12531601 | Tunnel, Pantry (Replaces: 67002004) |
|
$ 11.04 | |||||
| 28 | 67002005 | Gasket, Pantry |
|
- | |||||
| 29 | WP67001722 | Support, Pantry (right Hand) (Replaces: 67001722) |
|
Immediately | $ 8.93 | ||||
| 29 | WP67001721 | Support, Pantry (left Hand) (Replaces: 67001721) |
|
Immediately | $ 8.70 | ||||
| 30 | WP67001716 | Hook, Ladder (Replaces: 67001716) |
|
Immediately | $ 11.14 | ||||
| 31 | WP67001719 | Track, Drawer (Replaces: 67001719) |
|
Immediately | $ 8.99 | ||||
| 32 | 12909403SP | Crisper Front |
|
$ 61.53 |
