SELECT A DIAGRAM

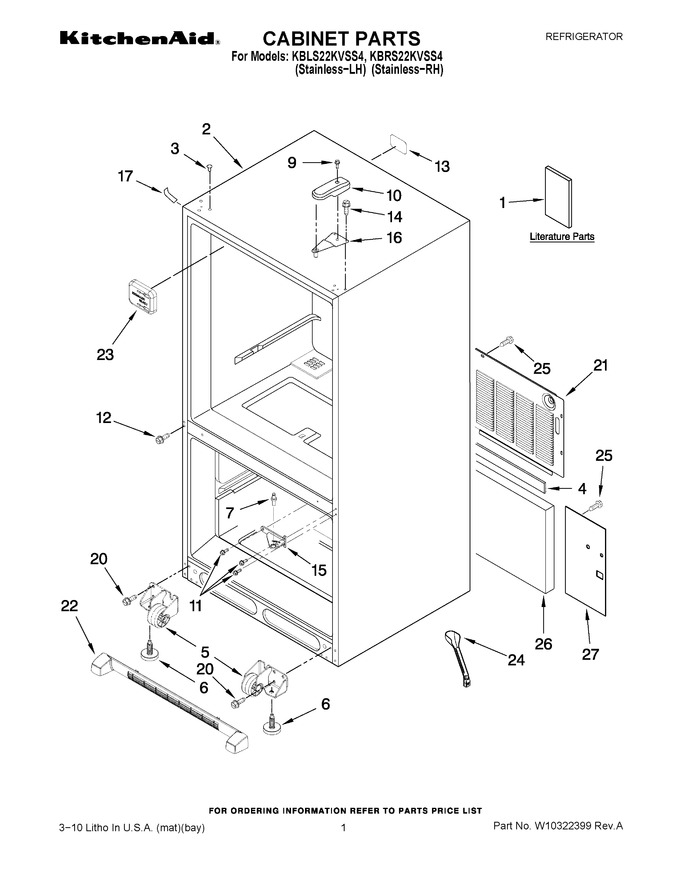

Diagram for 01 - Cabinet Parts
01 - Cabinet Parts

Diagram for 02 - Freezer Liner Parts
02 - Freezer Liner Parts

Diagram for 03 - Freezer Door Parts
03 - Freezer Door Parts

Diagram for 04 - Refrigerator Liner Parts
04 - Refrigerator Liner Parts

Diagram for 05 - Refrigerator Door Parts
05 - Refrigerator Door Parts

Diagram for 06 - Unit Parts
06 - Unit Parts

Diagram for 07 - Shelf Parts
07 - Shelf Parts

Diagram for 08 - Optional Parts
08 - Optional Parts


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10137649 Use & Care Guide Appelez-nous -
1 W10308612 Tech Sheet Appelez-nous -
1 W10212714 Energy Guide Appelez-nous -
2 N/P Cabinet (not A Serviceable Part) Appelez-nous -
3 WP12246608 Plug, Button (3) (black)   (Replaces: M0310731) In-Stock Immediately $ 8.15

4 B5759655 Gasket Special Order $ 13.03

5 W11820444 Roller Foot Assembly (left)   (Replaces: W10275850) In-Stock Immediately $ 37.35

5 W11820445 Roller Foot Assembly (right)   (Replaces: W10275849) In-Stock Immediately $ 37.35

6 WPW10141622 Foot Brake   (Replaces: W10141622) In-Stock Immediately $ 8.24

7 WP67006642 Pin, Center Hinge   (Replaces: 10351006) Special Order $ 8.78

9 WP8281196 Screw   (Replaces: 12992602) In-Stock Immediately $ 7.55

10 N/P Cover, Right Hinge Appelez-nous -
11 W11573362 Screw   (Replaces: 12992201) Special Order $ 14.72

12 WP98165 Screw   (Replaces: 12990521) Special Order $ 8.57

13 W11685757 Label, Fill Tube   (Replaces: 12249902) Special Order $ 7.41

14 WP489349 Screw   (Replaces: 12992403) In-Stock Immediately $ 8.43

15 WP12607104ED Hinge, Center (2) (black)   (Replaces: 12607104ED) Special Order $ 167.35

16 WP12566606ED Hinge, Top   (Replaces: 12566606ED) In-Stock Immediately $ 47.13

17 67003485 Cover, Corner (black)   (Replaces: 12587703B) In-Stock Immediately $ 22.14

20 67006564 Screw (8)   (Replaces: 12991302) In-Stock Immediately $ 8.15

21 WPW10210979 Cover, Unit   (Replaces: W10210979) Special Order $ 206.23

22 WPW10534162 Grille Assembly (black)   (Replaces: W10236196) Special Order $ 148.16

23 WP67001098 Cover-fill Tube   (Replaces: 12477501) Special Order $ 8.43

24 W10619951 Tube, Drain   (Replaces: W10210988) In-Stock Immediately $ 42.39

25 67006425 Screw   (Replaces: 12990511) In-Stock Immediately $ 7.30

26 12820505 Insulation, Sound Special Order $ 71.70

27 W11684617 Cover, Water Valve   (Replaces: W10217701) Special Order $ 21.36


    View Diagram in Separate Window     Print Icon   Print Part List

Diagram for KBRS22KVSS4
