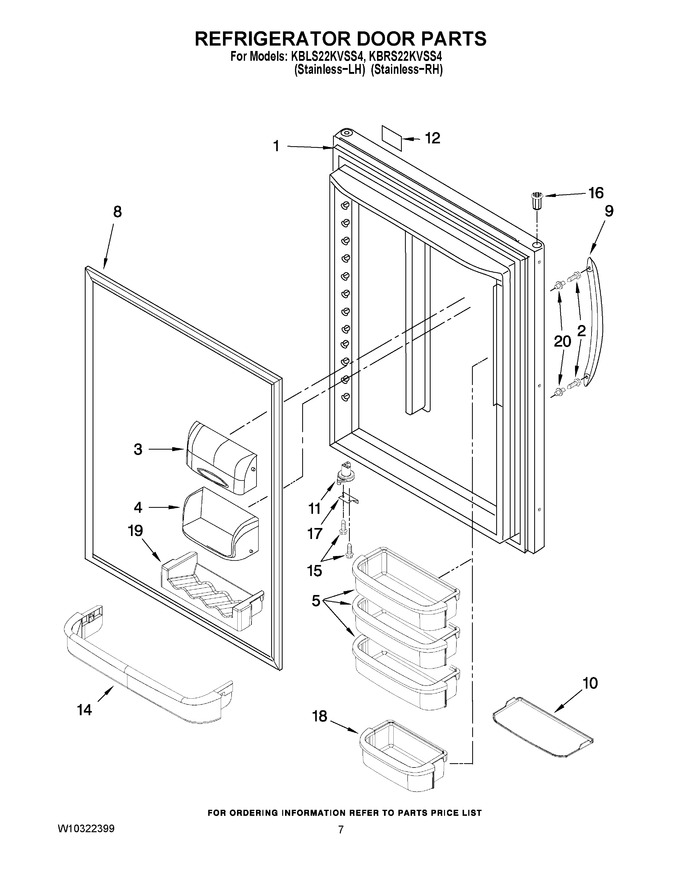

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13107547SQ | Door, Refrigerator (stainless-rh) (Replaces: 13107527SQ) |
|
$ 1,196.27 | |||||
| 1 | 13107545SQ | Door, Refrigerator (stainless-lh) (Replaces: 13107525SQ) |
|
$ 1,161.07 | |||||
| 2 | W10290759 | Screw (2) |
|
$ 5.83 | |||||
| 3 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 82.67 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 88.01 | ||||
| 5 | WPW10371195 | Bucket, Medium (3) (Replaces: 12849114SP) |
|
Immediately | $ 87.37 | ||||
| 8 | WPW10436248 | Gasket, Door (black) (Replaces: W10164035) |
|
$ 286.97 | |||||
| 9 | WPW10314517K | Handle, Door (stainless) (Replaces: W10314517N) |
|
$ 243.37 | |||||
| 10 | WPW10450021 | Gripper, Bucket (Replaces: 12567321SP) |
|
Immediately | $ 100.93 | ||||
| 11 | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
$ 90.32 | |||||
| 12 | W10046610 | Nameplate (apollo Grey) |
|
$ 33.40 | |||||
| 14 | 12690502 | Retainer, Door |
|
$ 45.03 | |||||
| 15 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 16 | 67004978 | Bushing, Door (black) (Replaces: 10961006B) |
|
$ 22.10 | |||||
| 17 | W11708403 | Stop, Door (black) (Replaces: 10447112) |
|
Immediately | $ 14.75 | ||||
| 18 | 12643911SP | Bucket, Short |
|
$ 43.60 | |||||
| 19 | WP67005626 | Caddy, Can (Replaces: 12690102V) |
|
$ 81.49 | |||||
| 20 | WP67006113 | Mount-handle (Replaces: 13001201) |
|
Immediately | $ 12.56 |
