SELECT A DIAGRAM

01 - Cabinet Parts


02 - Cabinet And Breaker Trim Parts


03 - Top Grille And Unit Cover Parts


04 - Refrigerator Liner Parts


05 - Freezer Liner Parts


06 - Shelf Parts


07 - Refrigerator Door Parts


08 - Freezer Door And Basket Parts


09 - Upper Unit Parts


10 - Lower Unit And Tube Parts


11 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

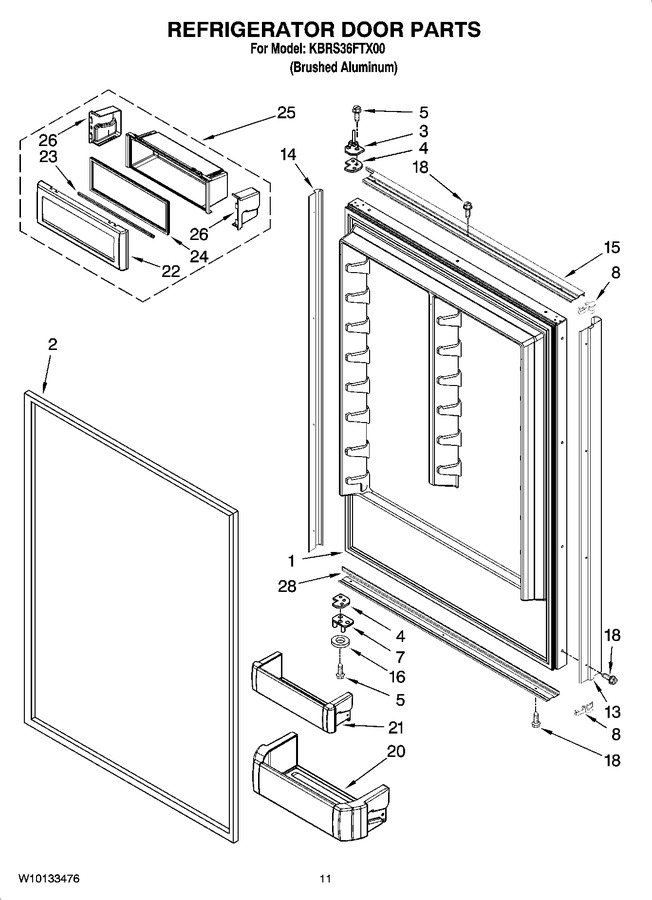

1	2309390		Door, Refrigerator (includes Item 2)		Appelez-nous	-
2	2302709		Gasket, Door   (Replaces: 2300184)				$ 328.30
3	2266912		Hinge Assembly, Top				$ 44.22
4	W11673500		Spacer-hinge   (Replaces: 2316804)			Immediately	$ 108.07
5	W11474472		Screw, 10-32 X 3/4   (Replaces: 489282)			Immediately	$ 8.63
7	2316805		Bottom Hinge Assembly				$ 214.92
8	2316795S		Cap, Door (right)		Appelez-nous	-
8	2316796S		Cap, Door (left)		Appelez-nous	-
13	2316797		Handle		Appelez-nous	-
14	2316798		Trim-door, Side (hinge Side)		Appelez-nous	-
15	2316799		Trim-door, Top		Appelez-nous	-
16	WP2006346		Washer   (Replaces: 2006346)			Immediately	$ 11.76
18	WP8281250		Screw 8-15 X 1/2   (Replaces: 8281250)				$ 11.42
20	W10323749		Shelf, Door (gallon)   (Replaces: 2307975)				$ 136.84
21	W11590561		Shelf, Door (4)   (Replaces: 2222777)				$ 94.23
22	2309255		Door, Utility Bin				$ 43.26
23	2309256		Rail, Lid		Appelez-nous	-
24	2309257		Gasket, Utility Bin		Appelez-nous	-
25	W10323044		Bin, Utility   (Replaces: 2309252)				$ 132.58
26	WPW10323173		End Cap, Utility Bin (left Side)   (Replaces: 2222920)				$ 8.60
26	WPW10323172		End Cap, Utility Bin (right Side)   (Replaces: 2222919)				$ 8.60
28	2316800		Trim-door, Bottom		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
