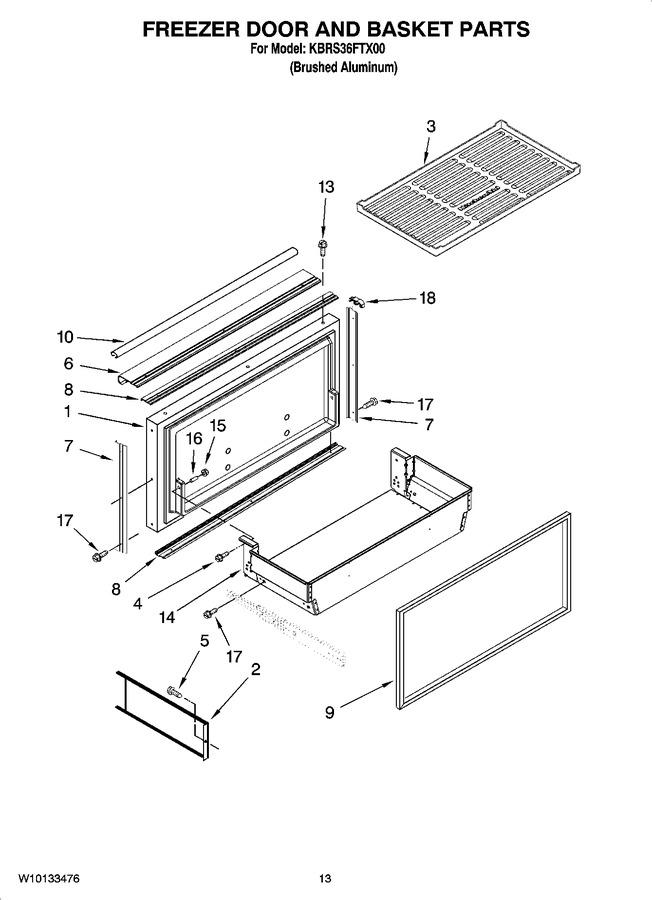

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2327401		Freezer Door Panel (includes Item 9)		Appelez-nous	-
2	2317101		Divider, Basket (2)		Appelez-nous	-
3	2314025		Mat, Basket		Appelez-nous	-
4	W10135775		Screw, 5/16 X 3/4				$ 14.93
5	WP488234		Screw, 8/32 X 1/4   (Replaces: W10135792)				$ 7.08
6	2316801		Handle		Appelez-nous	-
7	2316803		Trim-door, Side		Appelez-nous	-
8	2316802		Trim-door,		Appelez-nous	-
9	2302710		Door Gasket, Magnetic   (Replaces: 2300185)				$ 307.89
10	2259363S		Cover, Trim		Appelez-nous	-
13	WP8281250		Screw 8-15 X 1/2   (Replaces: 8281250)				$ 11.42
14	W10258182		Basket Assembly, Freezer   (Replaces: 2327533)				$ 254.40
15	WP2207454		Nut, Hex   (Replaces: 2207454)				$ 11.38
16	W10001190		Washer				$ 8.80
17	W10109030		Screw, 10-24 X 1/4 (basket To Slide)				$ 15.35
18	2316795S		Cap, Door (right (2))		Appelez-nous	-
18	2316796S		Cap, Door (left (2))		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
