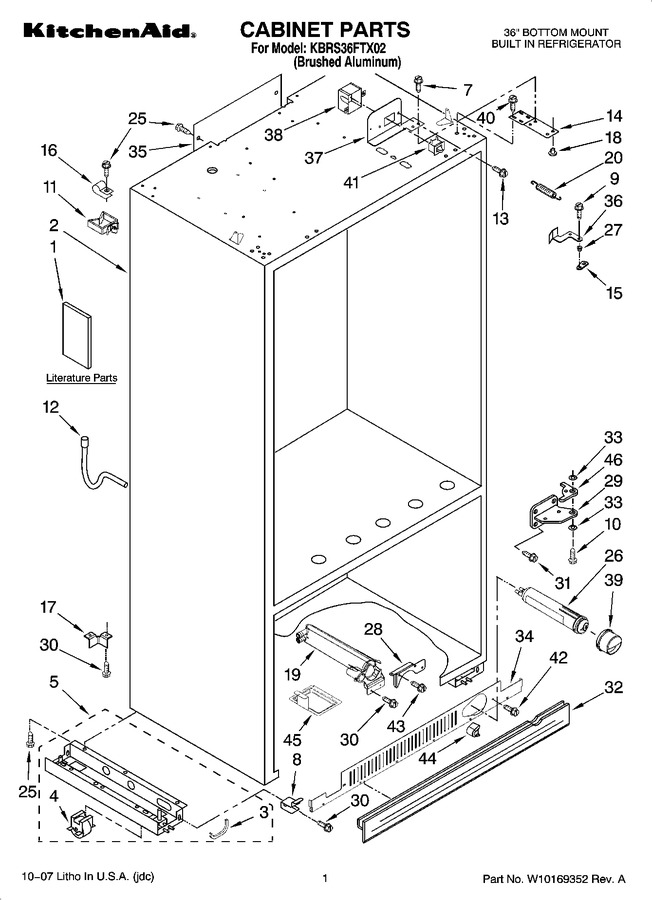

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10159833 | Service & Wiring Sheet |
|
- | |||||
| 1 | 2320682 | Use & Care Guide |
|
- | |||||
| 1 | W10164068 | Energy Guide |
|
- | |||||
| 1 | 2320680 | Installation Instructions |
|
- | |||||
| 1 | 2324934 | Main Control Service Sheet |
|
- | |||||
| 1 | 628370 | Modular Icemaker Service Sheet |
|
- | |||||
| 3 | 2307584 | Grommet, Crossover Tube |
|
$ 22.29 | |||||
| 4 | WPW10138054 | Roller, Front & Rear (4) (Replaces: W10138054) |
|
$ 43.18 | |||||
| 5 | W10860448 | Support, Leveler Assembly (refrigerator Side) (Replaces: 2318194) |
|
Immediately | $ 364.76 | ||||
| 5 | W10860229 | Support, Leveler Assembly (freezer Side) (Replaces: 2318193) |
|
$ 363.65 | |||||
| 7 | WP8281164 | Screw (Replaces: 8281164) |
|
$ 10.79 | |||||
| 8 | W10839844 | Mounting Bracket, Grill (Replaces: 2307640) |
|
$ 41.20 | |||||
| 9 | 487522 | Screw |
|
- | |||||
| 10 | 2005921 | Screw |
|
$ 7.65 | |||||
| 11 | W10129069 | Clip (4) |
|
- | |||||
| 12 | 2314064 | Tube, Drain |
|
$ 89.41 | |||||
| 13 | WP965173 | Screw,8-18 X 3/8 (Replaces: 487415) |
|
Immediately | $ 10.72 | ||||
| 14 | 2257644 | Hinge, Door Refrigerator Top |
|
$ 169.50 | |||||
| 15 | 2005783 | Cam-closer, Door |
|
$ 26.20 | |||||
| 16 | W10833902 | Clamp, Tube (Replaces: 2221070) |
|
$ 10.99 | |||||
| 17 | 2006617 | Bracket, Support Door |
|
- | |||||
| 18 | 2300082 | Bushing |
|
$ 13.44 | |||||
| 19 | WPW10121140 | Housing, Water Filter (Replaces: 2260526) |
|
Immediately | $ 171.96 | ||||
| 20 | WP2004517 | Spring, Door Closure (Replaces: 2004517) |
|
Immediately | $ 90.89 | ||||
| 25 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.02 | |||||
| 26 | EDR3RXD1B | Filter, Water (Replaces: 4396841) |
|
Immediately | $ 49.99 | ||||
| 27 | WP2316859 | Bushing-arm, Extension (Replaces: 2266880) |
|
Immediately | $ 51.62 | ||||
| 28 | W11755873 | Brakcet, Mounting (filter) (Replaces: 2318190) |
|
$ 76.50 | |||||
| 29 | 2005101 | Hinge, Bottom Refrigerator Door |
|
$ 93.18 | |||||
| 30 | WP489464 | Screw 8-18 X 1/2 (Replaces: 489464) |
|
Immediately | $ 7.83 | ||||
| 31 | 3400525 | Screw |
|
$ 12.83 | |||||
| 32 | WP2209024B | Skirt-grille, Bottom (Replaces: 2209024B) |
|
$ 161.78 | |||||
| 33 | WP2006346 | Washer (Replaces: 2006346) |
|
Immediately | $ 11.20 | ||||
| 34 | WP2325187B | Grille Base, Front (Replaces: 2325187B) |
|
$ 180.14 | |||||
| 35 | 2215612 | Cover, Air Duct |
|
- | |||||
| 36 | W10847927 | Arm, Extension (Replaces: 2266882) |
|
$ 95.15 | |||||
| 37 | W10741111 | Bracket, Switch (Replaces: 2221097) |
|
$ 64.16 | |||||
| 38 | 2215938 | Cover, Switch |
|
$ 90.27 | |||||
| 39 | WP2260518B | Cap, Water Filter (Replaces: 2260518B) |
|
Immediately | $ 28.26 | ||||
| 40 | W11721628 | Screw (Replaces: 8533913) |
|
Immediately | $ 14.08 | ||||
| 41 | W11384469 | Switch, Rocker Arm (2) (Replaces: 1118894) |
|
Immediately | $ 37.23 | ||||
| 42 | WP489464 | Screw, 8-18 X 1/2 (Replaces: W10005050) |
|
Immediately | $ 7.83 | ||||
| 43 | WP8281163 | Screw, 8-16 X 1/2 (Replaces: 8281163) |
|
Immediately | $ 10.19 | ||||
| 44 | WP2260503B | Button, Filter (Replaces: 2260503B) |
|
$ 72.78 | |||||
| 45 | 2318189 | Tray, Drip Filter |
|
$ 141.65 | |||||
| 46 | W10188434 | Gap, Cover Btm (Replaces: 2006388) |
|
$ 64.71 |
