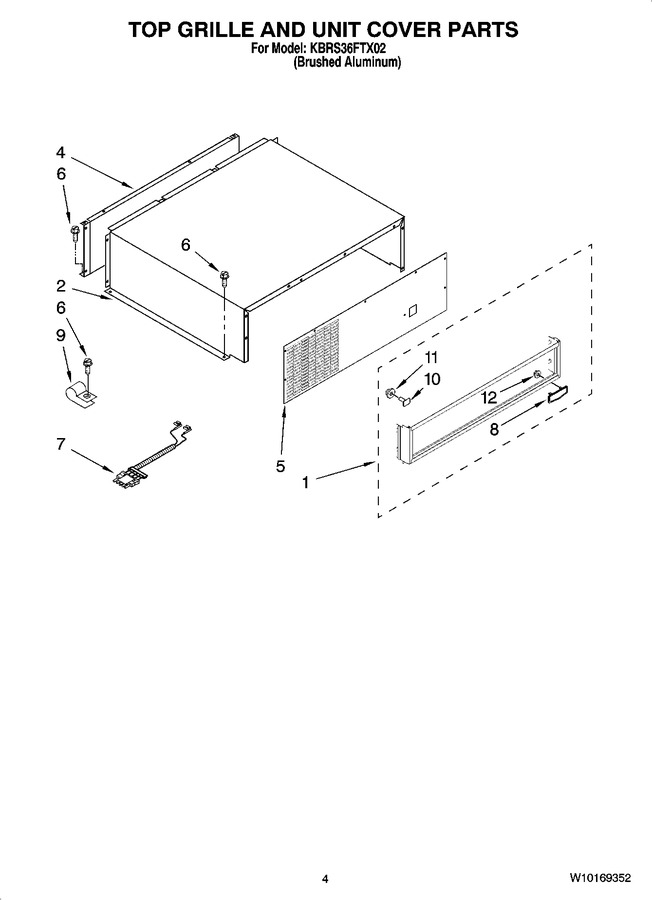

SELECT A DIAGRAM

01 - Cabinet Parts


02 - Cabinet And Breaker Trim Parts


03 - Top Grille And Unit Cover Parts


04 - Refrigerator Liner Parts


05 - Freezer Liner Parts


06 - Shelf Parts


07 - Refrigerator Door Parts


08 - Freezer Door And Basket Parts


09 - Upper Unit Parts


10 - Lower Unit And Tube Parts


11 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2316827S		Top Grille Assembly		Appelez-nous	-
2	W10161693		Cover, Unit		Appelez-nous	-
4	2256466		Back Panel				$ 327.22
5	2320678		Front, Unit Cover		Appelez-nous	-
6	WP965173		Screw   (Replaces: 487415)			Immediately	$ 11.87
7	2187894		Wire Assembly, Light Switch		Appelez-nous	-
8	2317923S		Nameplate		Appelez-nous	-
9	489348		Clamp		Appelez-nous	-
10	2003347		Tee Bolt (4)				$ 14.99
11	WP488130		Nut (4)   (Replaces: 1161548)				$ 7.32
12	WP2004333		Self-threaded Nut   (Replaces: 2004333)				$ 11.24
