SELECT A DIAGRAM

01 - Cabinet Parts


02 - Cabinet Trim Parts


03 - Freezer Shelf Parts


04 - Refrigerator Liner Parts


05 - Control Panel Parts


06 - Top Grille And Unit Cover Parts


07 - Refrigerator Shelf Parts


08 - Freezer Liner And Air Flow Parts


09 - Motor And Ice Container Parts


10 - Refrigerator Door Parts


11 - Freezer Door Parts


12 - Dispenser And Front Parts


13 - Upper Unit Parts


14 - Lower Unit And Tube Parts


15 - Icemaker Parts

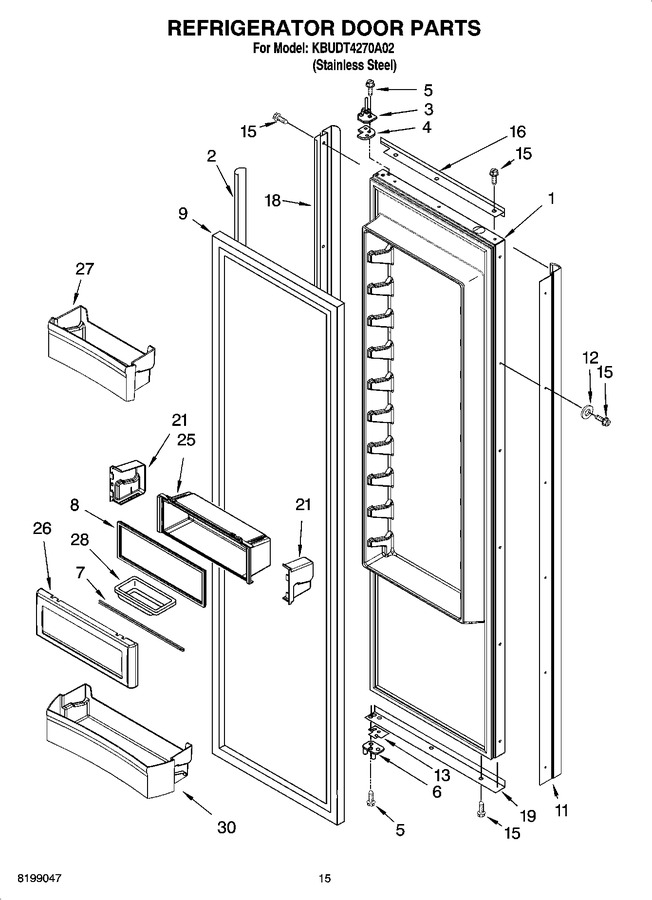

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2252330		Refrigerator Door Panel (includes Item 9)		Appelez-nous	-
2	2259448X		Cover, Screw		Appelez-nous	-
3	W11724512		Hinge Assembly, Top   (Replaces: 2266854)				$ 312.50
4	2256381		Spacer-door, Top				$ 24.49
5	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.63
6	2302878		Hinge Assembly, Bottom			Immediately	$ 91.01
7	W11448696		Rail, Lid   (Replaces: 2222796)				$ 172.93
8	W11448696		Gasket, Utility Bin   (Replaces: 2222982)				$ 172.93
9	WP2266902		Door Gasket, Magnetic   (Replaces: 2222811)				$ 330.30
11	2256473		Handle, Door		Appelez-nous	-
12	2001230		Washer				$ 12.34
13	2257637		Door Spacer, Bottom				$ 15.45
15	WP8281250		Screw, 8-15 X .500 Stainless Steel   (Replaces: 8281250)				$ 11.42
16	2005011		Trim-door, Top		Appelez-nous	-
18	2257686X		Trim-door, (hinge Side)		Appelez-nous	-
19	2215994		Trim-door, Bottom		Appelez-nous	-
21	WPW10323172		End Cap (right Side)   (Replaces: 2222919)				$ 8.60
21	WPW10323173		End Cap (left Side)   (Replaces: 2222920)				$ 8.60
25	W10323042		Bin, Utility (center)   (Replaces: 2222922)				$ 223.93
26	W11553221		Door, Utility Bin   (Replaces: 2257616)			Immediately	$ 69.64
27	2252364		Door Shelf		Appelez-nous	-
28	2165792		Butter Tray		Appelez-nous	-
30	2222477		Shelf, Door		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
