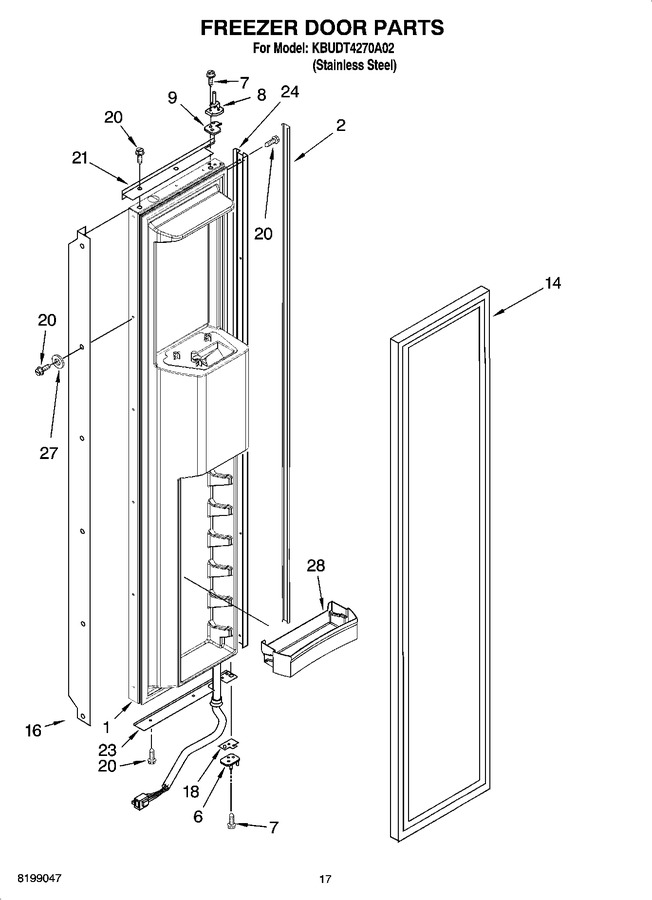

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	L2307848B		Freezer Door, Service (includes Dispenser Items)		Appelez-nous	-
2	2259448X		Cover, Screw		Appelez-nous	-
6	W11752085		Hinge, Bottom   (Replaces: 2302879)				$ 63.07
7	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.63
8	W11724512		Hinge, Top   (Replaces: 2266854)				$ 312.50
9	2256381		Spacer-door, Top				$ 24.49
14	WP2266905		Door Gasket, Magnetic   (Replaces: 2222814)				$ 329.66
16	2256472		Handle, Door		Appelez-nous	-
18	2257637		Door, Spacer				$ 15.45
20	WP8281250		Screw Stainless Steel   (Replaces: 8281250)				$ 11.42
21	2005020		Trim-door, (top)		Appelez-nous	-
23	2215985		Trim-door, (bottom)		Appelez-nous	-
24	2257687X		Trim-door, (hinge Side)		Appelez-nous	-
27	2001230		Washer				$ 12.34
28	2222609		Bin, Shelf		Appelez-nous	-
