View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

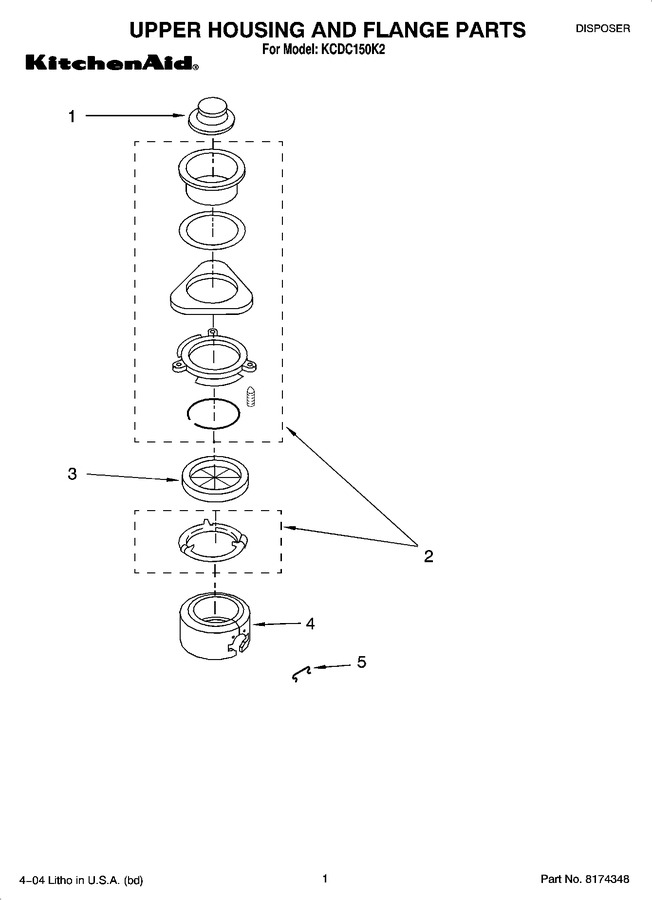

01 - Upper Housing And Flange Parts
02 - Lower Housing And Motor Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4211300 | Stopper Assembly |
|
$ 27.11 | |||||
| 2 | 8174306 | Mounting Assy |
|
- | |||||
| 3 | 4211615 | Gasket, Mounting |
|
$ 27.96 | |||||
| 4 | 8174341 | Trim, Shell |
|
- | |||||
| 5 | 8174342 | Clip, Trim Band |
|
- | |||||
| 5 | N/A | Following Parts Not Illustrated |
|
- | |||||
| 5 | 8174350 | Guide, Use & Care |
|
- |
