01 - Upper Housing And Flange Parts

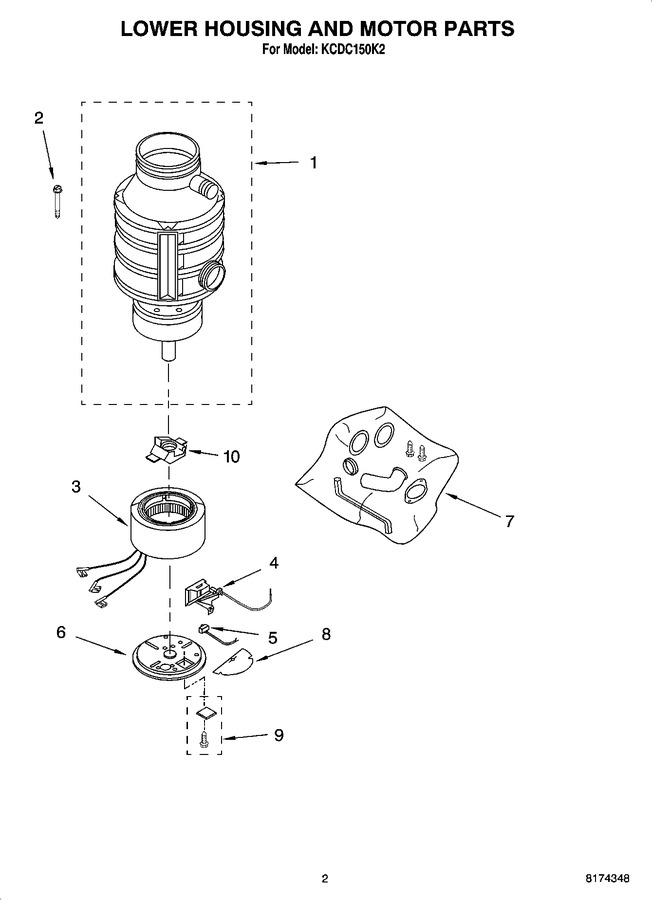

02 - Lower Housing And Motor Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 8174343 | Bolt, Thru |
|
- | |||||
| 3 | 8174311 | Stator Assembly |
|
- | |||||
| 4 | 8174312 | Switch Assembly, Start |
|
$ 268.82 | |||||
| 5 | 882726 | Protector, Overload |
|
- | |||||
| 6 | 8174345 | End Frame Assembly, Lower (includes Ground Screw) |
|
- | |||||
| 7 | 8174355A | Kit, Installation (Replaces: 4176802) |
|
Immediately | $ 18.91 | ||||
| 8 | 4211326 | Shield, Wire |
|
- | |||||
| 9 | 8174315 | Cover, Terminal (includes Screw) |
|
- | |||||
| 10 | 4211322 | Actuator Assembly, Centrifugal |
|
$ 93.30 |
