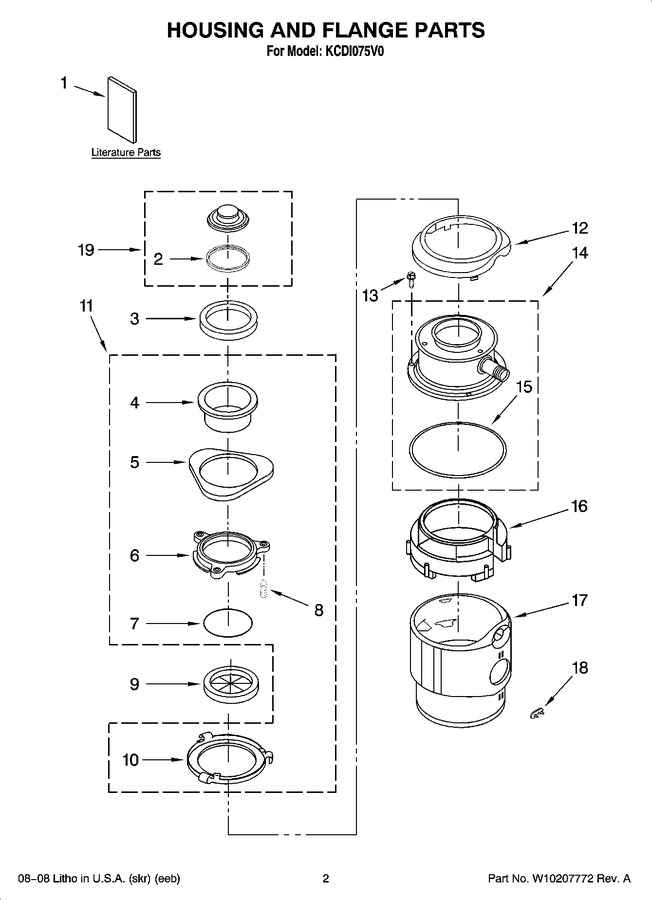

Diagram for 01 - Housing And Flange Parts
01 - Housing And Flange Parts

Diagram for 02 - Upper Housing And Motor Parts
02 - Upper Housing And Motor Parts


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10222147 Guide, Use & Care Appelez-nous -
1 W10207772 Repair Parts List Appelez-nous -
2 4211333 Gasket, Stopper Special Order $ 30.86

3 WP4211302 Gasket   (Replaces: 4211302) Special Order $ 8.58

4 W10171101 Flange, Sink Appelez-nous -
5 W10171102 Ring, Backup Appelez-nous -
6 4211304 Ring, Mounting Special Order $ 137.21

7 4211306 Ring, Snap Special Order $ 10.56

8 W10171103 Screw Special Order $ 6.47

9 WP4211334 Gasket, Mounting   (Replaces: 4211334) Special Order $ 35.56

10 4211308 Flange, Body Appelez-nous -
11 W10179031A Mounting Assembly   (Replaces: W10222137) Special Order $ 86.00

12 W10171106 Cap, Trim Shell Appelez-nous -
13 W10222138 Screw Appelez-nous -
14 4211554 Body Container Appelez-nous -
15 4211337 O-ring Appelez-nous -
16 W10222139 Insulation Appelez-nous -
17 W10222140 Trim Shell Assy Appelez-nous -
18 8174342 Clip Appelez-nous -
19 4211577 Stopper Assembly Special Order $ 53.31


    View Diagram in Separate Window     Print Icon   Print Part List

Diagram for KCDI075V0
