01 - Housing And Flange Parts

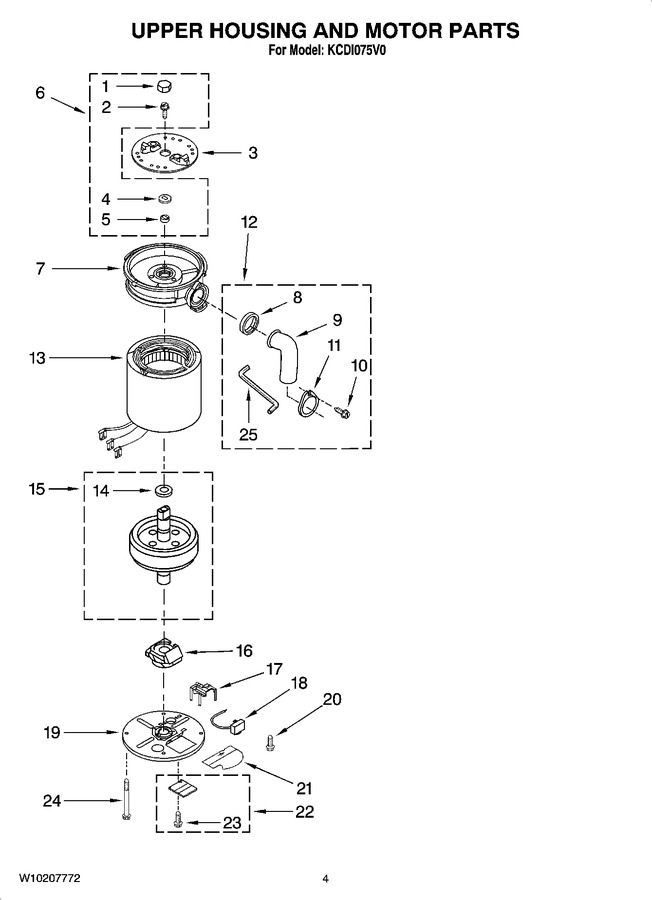

02 - Upper Housing And Motor Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Plug		Appelez-nous	-
2	N/A		Bolt, Flange		Appelez-nous	-
3	4211631		Shredder, Rotating Assembly				$ 133.32
4	N/A		Slinger		Appelez-nous	-
5	N/A		Sleeve		Appelez-nous	-
6	4211578		Sleeve & Seal Kit				$ 124.78
7	W10222141		Upper End Bell Assembly		Appelez-nous	-
8	4211344		Gasket, Tailpipe				$ 5.83
9	4211317		Tailpipe				$ 82.65
10	WP8204624		Screw   (Replaces: 4211346)				$ 17.48
11	4211345		Flange				$ 6.40
12	W10222142		Installation Kit		Appelez-nous	-
13	8174333		Stator		Appelez-nous	-
14	4211321		Washer		Appelez-nous	-
15	W10222143		Shaft Assembly				$ 144.23
16	4211322		Actuator, Centrifugal Assy				$ 103.67
17	8174312		Switch, Start				$ 298.69
18	8174347		Overload				$ 75.08
19	W10222144		Frame, Lower End Assembly		Appelez-nous	-
20	4211330		Screw, Ground		Appelez-nous	-
21	4211326		Shield, Wire		Appelez-nous	-
22	8174315		Cover, Terminal		Appelez-nous	-
23	WP98008545		Screw   (Replaces: 4211612)				$ 18.60
24	4211348		Bolt, Thru		Appelez-nous	-
25	WP8174310		Wrench   (Replaces: 8174310)				$ 22.35
	W11735296		Disposer, Complete   (Replaces: W10211205)		Appelez-nous	-
