SELECT A DIAGRAM

01 - Section


02 - Section

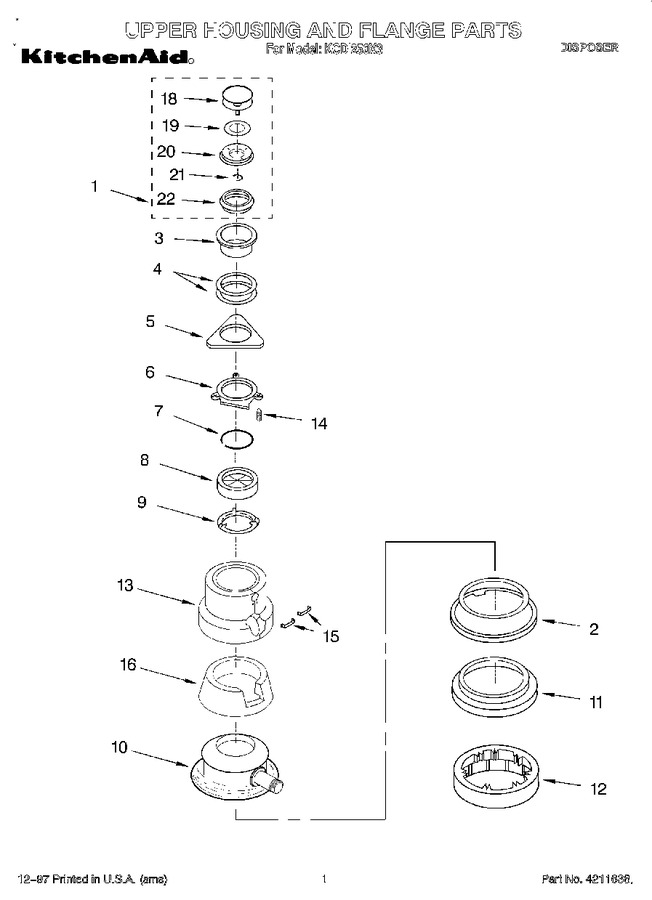

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP4211398A		Stopper Assembly   (Replaces: 4211398)				$ 89.55
2	4211364		Body, Lower		Appelez-nous	-
3	4211301		Flange, Strainer   (Replaces: 4211553)				$ 81.01
4	WP4211302		Seal, Sink Flange   (Replaces: 4211302)				$ 8.58
5	4211303		Flange, Backup		Appelez-nous	-
6	4211304		Flange, Mounting				$ 137.21
7	4211306		Ring, Retaining				$ 10.56
8	WP4211334		Gasket, Mounting   (Replaces: 4211334)				$ 35.56
9	4211308		Flange, Body		Appelez-nous	-
10	4211629		Container, Body Assembly		Appelez-nous	-
11	4211365		Gasket, Shredder		Appelez-nous	-
12	4211630		Shredder, Stationary		Appelez-nous	-
13	4211400		Trim, Shell Assembly		Appelez-nous	-
14	4211305		Screw, Backup				$ 14.11
15	4211339		Clip, Shell Trim		Appelez-nous	-
16	4211401		Insulation, Top		Appelez-nous	-
18	4211399		Gasket, Stopper		Appelez-nous	-
19	4211355		Flange, Strainer			Immediately	$ 7.17
20	4211491		Seal, Sink Flange		Appelez-nous	-
21	4211357		Flange, Backup		Appelez-nous	-
22	4211333		Flange, Mounting				$ 30.86

    View Diagram in Separate Window       Print Part List
